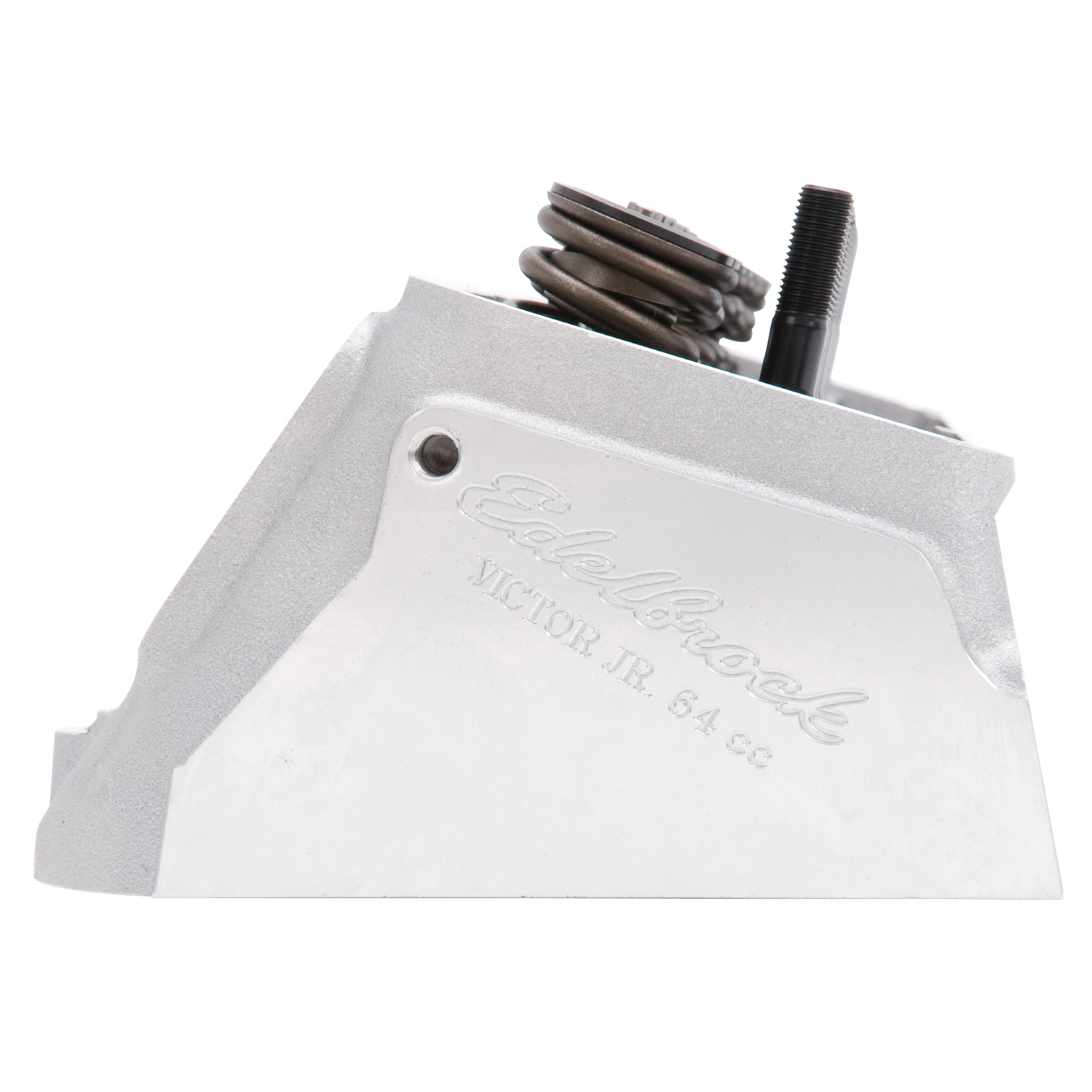

Edelbrock 77599 Victor Jr Small Block Chevy Cylinder Head 64cc

Manufacturer

Part Number

77599
Black Friday Price

$1,233.95

In Stock (9)

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Edelbrock Victor Jr. 215cc cylinder head (part #77599) is engineered for small block Chevy engines seeking maximum power in competition and ultra high-performance street applications. This affordable performance cylinder head delivers impressive out-of-the-box potential of 530-580 horsepower, making it an excellent choice for cost-effective, race-winning builds.

Key Features:

  • 215cc intake port volume optimized for high-flow performance
  • 64cc combustion chamber for high compression builds
  • Angled spark plug holes for improved flame travel and detonation resistance
  • Compatible with standard 23-degree valvetrain hardware
  • Includes valve springs designed for mechanical roller camshaft applications
  • Yields approximately 12.5:1 compression ratio when paired with 12cc domed pistons in a 350 cubic inch V8

The Victor Jr. 77599 cylinder head combines proven Edelbrock engineering with race-ready features, delivering exceptional power gains without breaking the budget. The 64cc chamber volume makes this head ideal for high-compression street/strip engines, while the angled plug design and generous port volume support serious horsepower goals. Sold individually.

Products specifications

Valve Springs Included

Yes

Valve Angle

23

Quantity

Sold individually

Valve Spring Maximum Lift

0.670

Seat Angle

Exhaust 45 deg/Intake 45

CNC Ported

No

Deck Thickness

0.5625

Guide Material

Manganese Bronze

Rocker Stud Diameter

0.4375

Push Rod Diameter

(Suggested) 0.3125

Valve Included

Yes

Retainer Included

Yes

Guide Plates Included

Yes

Exhaust Port Location

+.125

Material

Aluminum

Guide Plate Material

Hardened Steel

Family

Victor Jr.

Rotor Center Bore Inside Diameter

Angled

Intake Runner Volume

215

Construction Type

Complete

Intake Valve Diameter

2.08

Combustion Chamber Volume

64

Horsepower

450-550

Exhaust Valve Diameter

1.60

EGR Port

No

Grade Type

Performance

RGL

WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

Valve Spring Diameter

1.55

Series

Victor Jr.

Camshaft Type

Mechanical Roller

Seat Material

Ductile Iron

Valve Stem Diameter

0.3438

Exhaust Runner Volume

85

Rocker Arm Stud Diameter

0.4375
