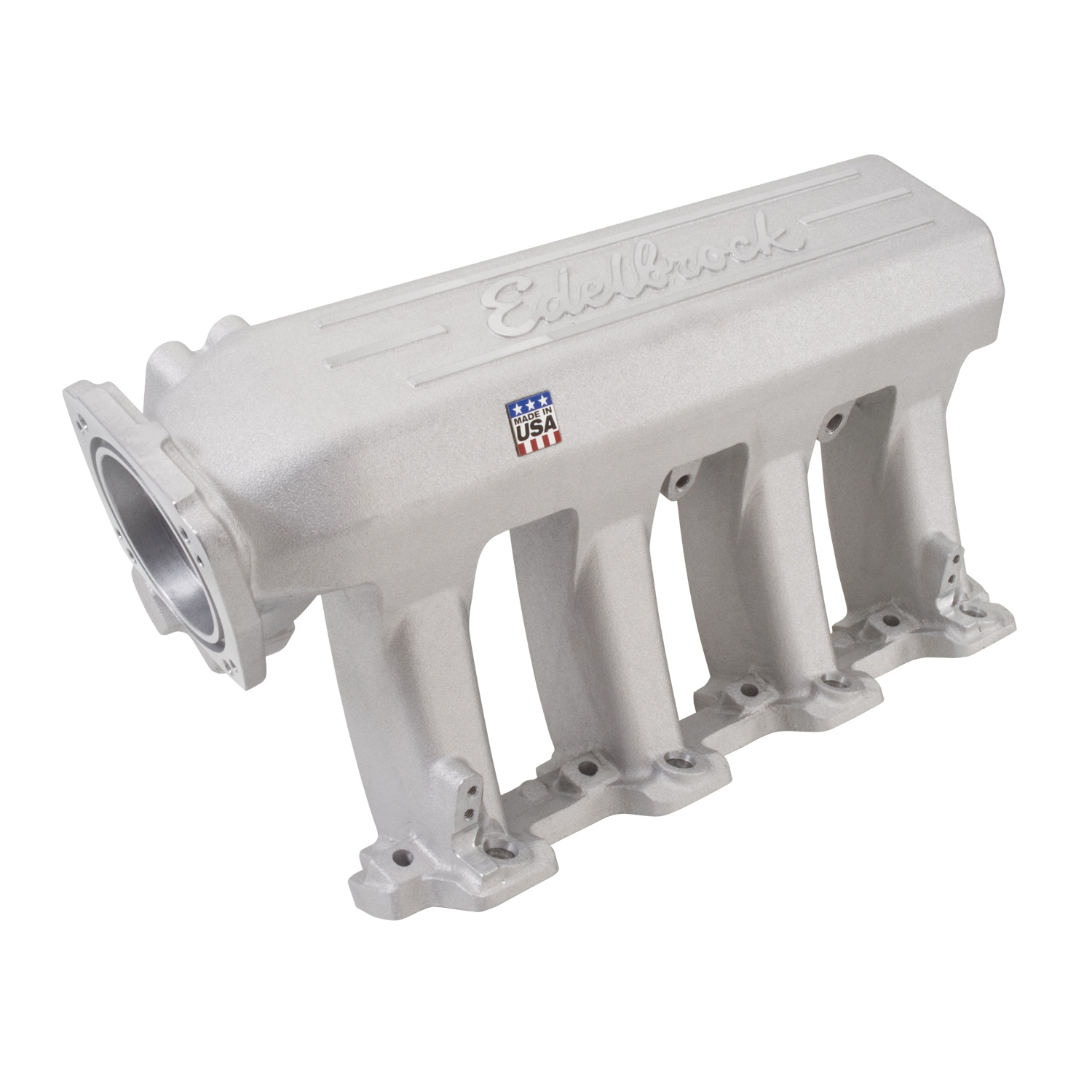

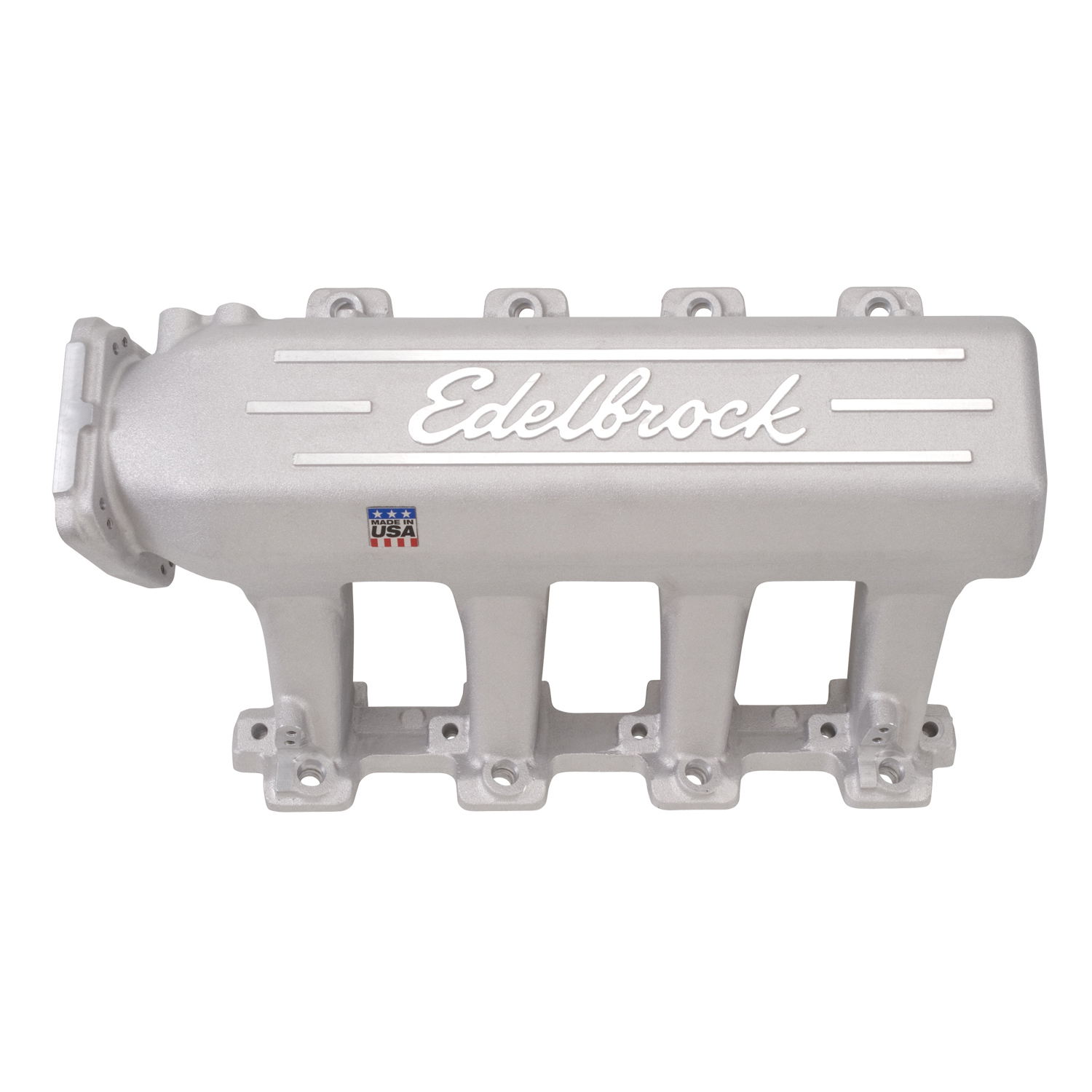

Edelbrock 7140 Pro-Flo XT LS2 EFI Intake Manifold for Small Block Chevy

(2006-2007 Chevrolet Corvette Base/GS; 2006-2009 Chevrolet Trailblazer SS; 2005-2006 Chevrolet SSR; 2005-2006 Pontiac GTO; 2006-2007 Cadillac CTS)

Manufacturer

Picture for manufacturer Edelbrock

Part Number

7140
9 reviews
Sale Price

$895.95

Estimated ship date Tuesday, November 24

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Edelbrock Pro-Flo XT LS2 EFI intake manifold is engineered to maximize performance on LS-series engines with a large plenum volume and tapered runner design that delivers exceptional horsepower gains and a broad torque band from 1500 to 7000 rpm. This high-performance manifold features a 90mm throttle bore opening and 2.75-inch port exit height for optimal airflow.

Key Features:

  • Large plenum and tapered runners optimized for maximum airflow efficiency
  • 90mm throttle bore opening for increased air volume
  • 2.75-inch port exit height for proper alignment
  • Produces 30+ horsepower over stock LS6 manifold at 6500 rpm
  • Broad power band from 1500-7000 rpm for street and performance applications
  • Accepts GM OEM 90mm or Edelbrock #3869 throttle bodies
  • Compatible with Edelbrock LS1 Fuel Rail Kit #3629 (sold separately)
  • Fuel rail kit features -6 AN inlet and outlet fittings

This intake manifold is designed for serious LS engine builds where maximizing horsepower and maintaining a usable torque curve are essential. The precision-engineered runners ensure excellent air distribution to all cylinders, while the large plenum volume supports high-rpm performance without sacrificing low-end and mid-range power delivery.

Products specifications

Fits

2006-2007 Chevrolet Corvette Base/GS; 2006-2009 Chevrolet Trailblazer SS; 2005-2006 Chevrolet SSR; 2005-2006 Pontiac GTO; 2006-2007 Cadillac CTS

Gasket Or Seal Included

No

Rear Maximum Height

10.000

Center Maximum Height

10.200

Grade Type

Performance

Front Maximum Height

10.200

CNC Ported

No

RGL

WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

Material

Aluminum

Finish

Satin

Single Or Dual Plane Type

Single Plane

Series

Pro-Flo XT

Single Or Dual Plane Type

Single

Basic Operating RPM Range

1500-7000

EGR Port

No

Flange Type

Throttle Body XT

Vehicle Model

Chevrolet
