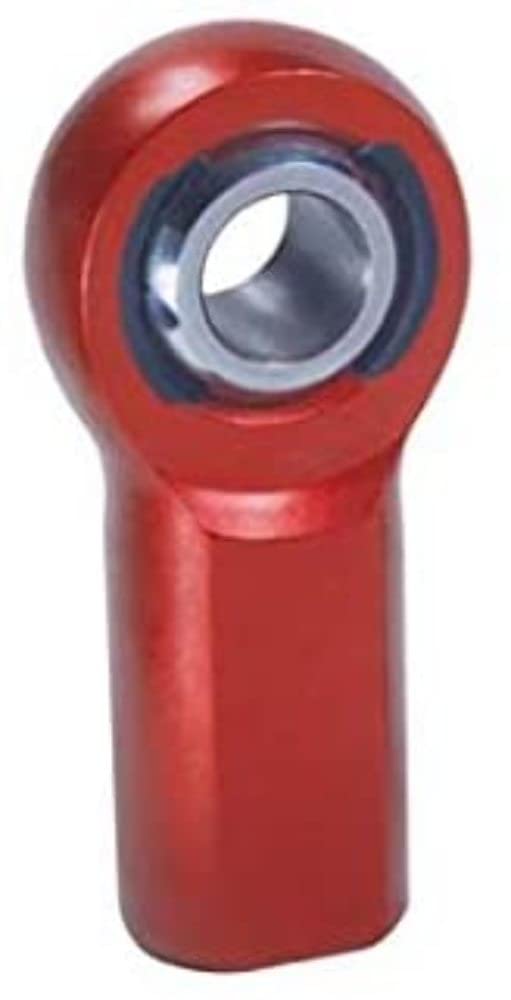

QA1 AFR5-6 Endura AF Series Aluminum Female Rod End 5/16 Bore 3/8-24 RH Red

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

AFR5-6
6 reviews
Sale Price

$12.09

Estimated ship date Friday, November 20

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 AFR5-6 is an AF Series Endura aluminum female rod end engineered for high-performance motorsports applications where minimizing weight without sacrificing strength is critical. Built around QA1's patented loaded-slot Endura design — first introduced in the U.S. in 1995 — the body is precision-machined with a full circumferential groove, into which the ball is seated and a Nylon/PTFE material is injection-molded directly. This self-sealing, self-lubricating race keeps dirt and debris out while eliminating the need for external lubrication, and unlike traditional pressed-in PTFE liners, the injection-molded race resists pounding out under repeated shock loads for extended service life.

The aircraft aluminum body is over 10% lighter than conventional three-piece aluminum rod ends, making the AFR5-6 the most wear-resistant aluminum female rod end design available. The body features a standard red anodized finish. Increased cross-sectional thickness throughout the body provides superior tensile strength, while metal-to-metal contact support handles heavy shock loads without deflection.

Specifications:

  • Thread Size: 3/8-24 RH
  • Bore Size: 5/16 in.
  • Gender: Female (Right-Hand Thread)
  • Series: AF Endura Aluminum

Ball:

  • 52100 bearing steel
  • Heat treated
  • Hard chrome plated
  • Precision ground

Race:

  • Nylon/PTFE injection molded
  • Self-lubricating
  • Self-sealing

Body:

  • Aircraft aluminum construction
  • Color anodized red (standard)

Exclusive Endura Features:

  • Metal-to-metal support for heavy shock loads
  • Increased cross-sectional thickness for greater tensile strength
  • Injection-molded race resists pounding out unlike traditional PTFE liners

Products specifications

A (+/-0.015)

1.625

Approx Bearing Weight

0.09

B (+0.0015/-0.0005)

0.3125

Ball Dia Ref

0.625

C (+0.062/-0.031)

0.937

D (+/-0.010)

1

E (+/-0.010

0.687

F (+/-0.010)

0.562

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

14

Notes

Only rod end ball is heat treated.

Quantity

Sold individually.

Rod End Attachment

Female threads

Rod End Ball Width

0.437 in.

Rod End Centerline Length

1.625 in.

Rod End Construction

2-piece

Rod End Finish

Red anodized

Rod End Head Bore Size

0.3125 in.

Rod End Head Diameter

1.000 in.

Rod End Head Width

0.437 in.

Rod End Material

Aluminum

Rod End Misalign Angle (degrees)

14 degrees

Rod End Static Load Capacity

4,512 lbs.

Rod End Static Load Capacity (lbs)

4,512 lbs.

Rod End Style

Teflon®/Kevlar® lined

Rod End Thread Size

3/8-24 RH in.

T (+/-0.005)

0.343

Thread Length

0.937 in.

Thread Type

Right Hand

Thread UNF-2B

3/8 -24

UTL Radical Static

4512

W (+/-0.005)

0.437

Title

QA1 Suspension Rod End Bearing AFR5-6
