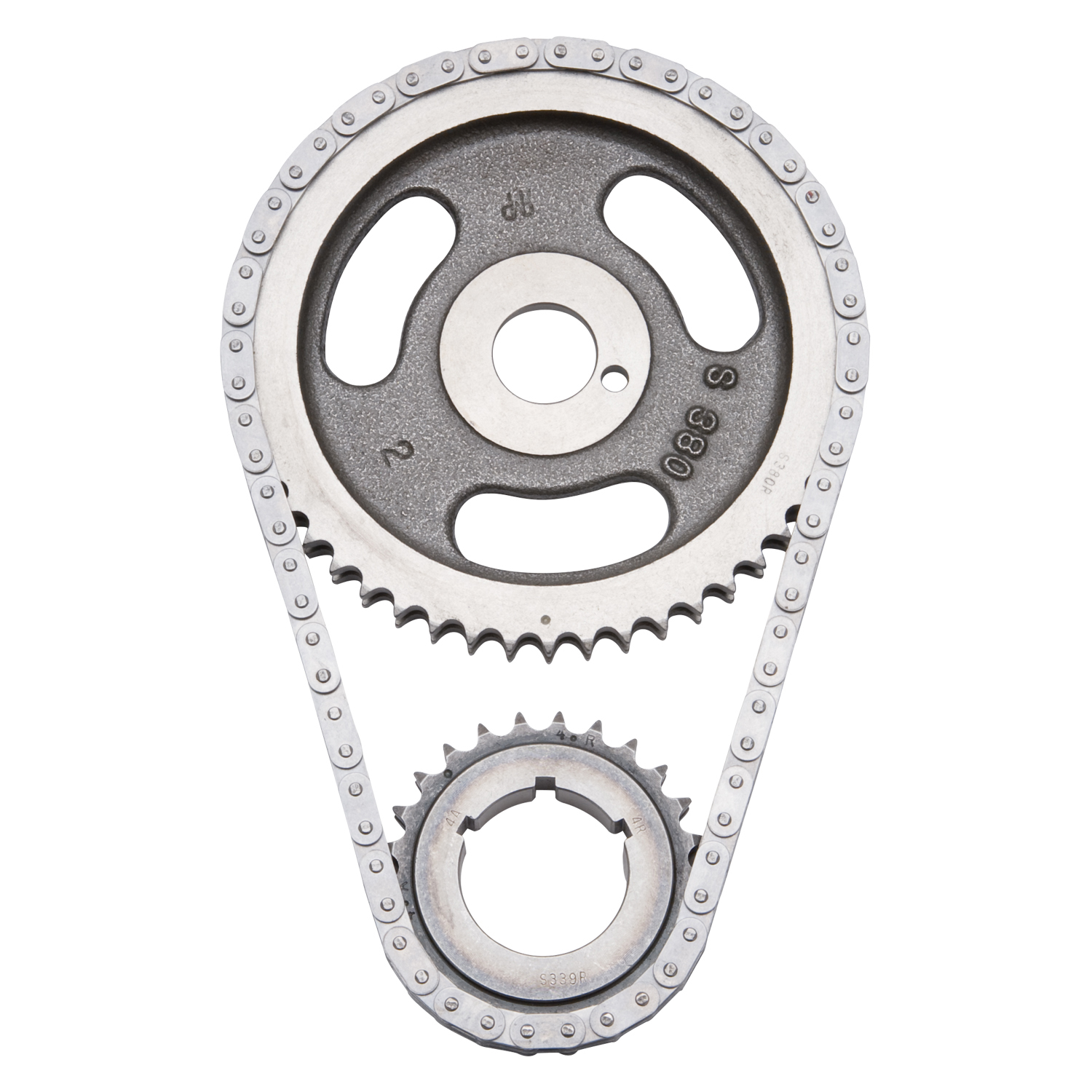

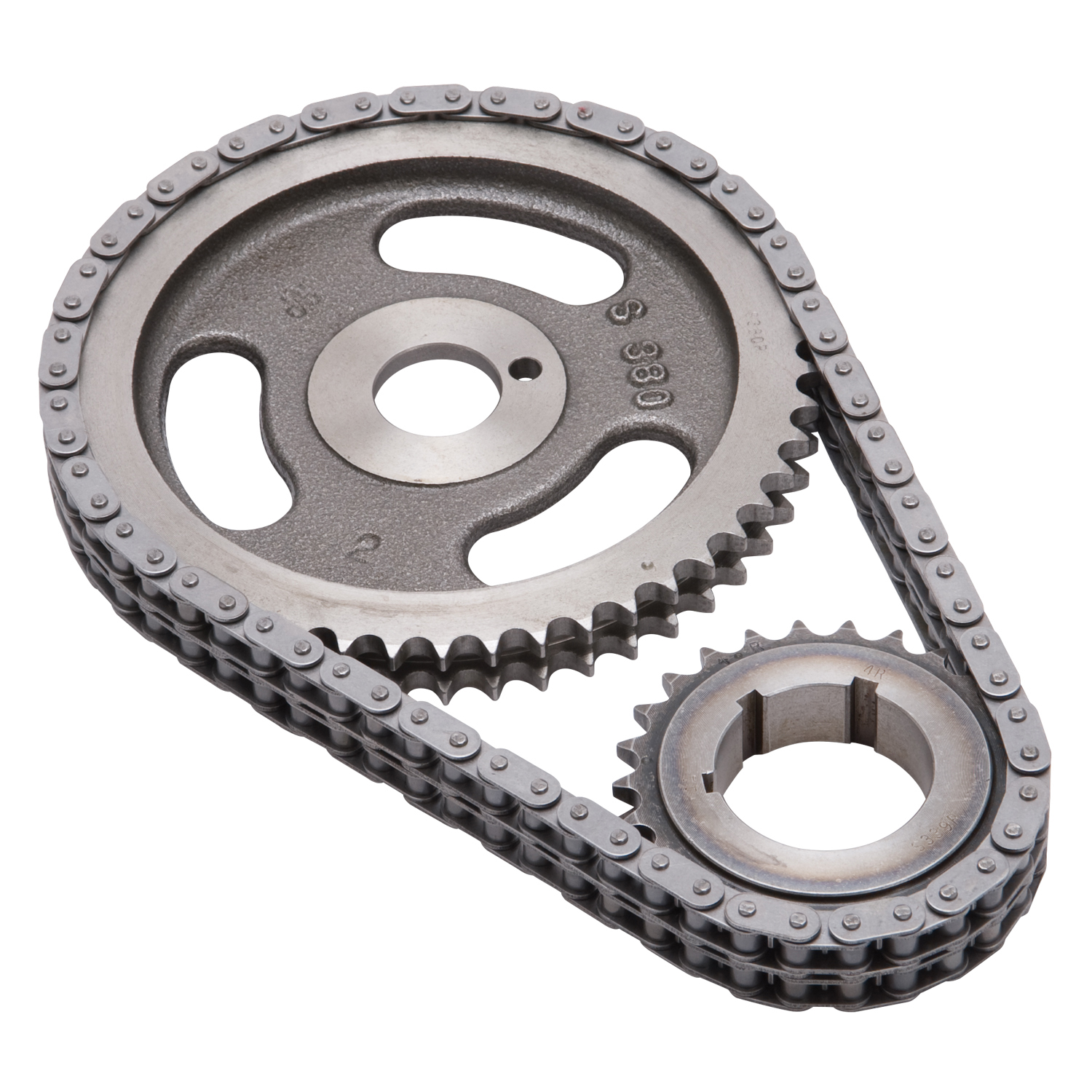

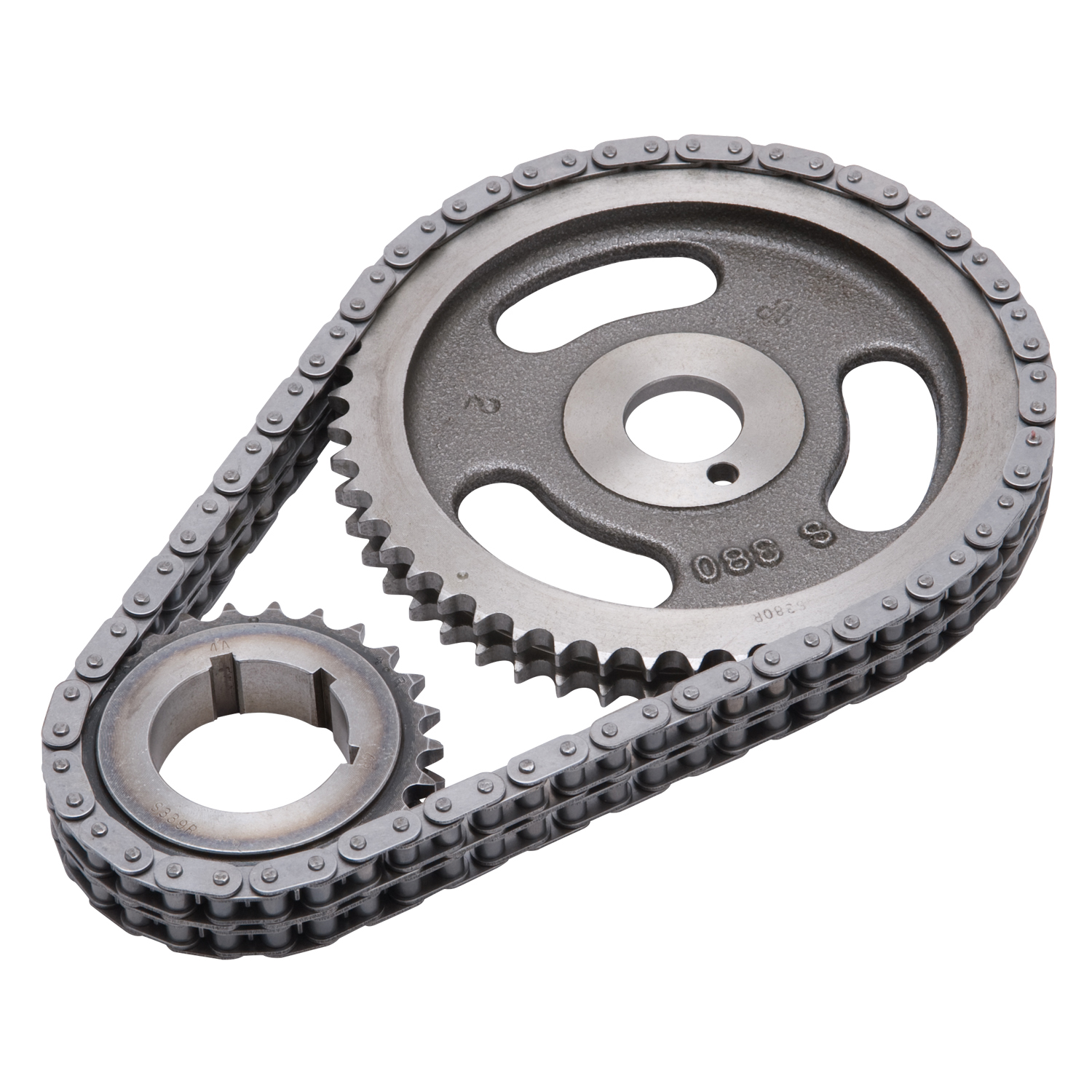

Edelbrock 7804 Performer-Link Adjustable True-Roller Timing Chain Set

The Edelbrock 7804 Performer-Link timing chain set delivers reliable performance for stock and Edelbrock camshafts in a wide range of applications. Engineered for engines operating up to 6,500 RPM, this timing set features a solid-bushing roller chain design that provides a true bearing surface, rolling smoothly with the sprockets to virtually eliminate chain stretch and ensure precise valve timing throughout the engine's life.

Key Features:

• Solid-bushing true-roller chain design eliminates stretch for consistent timing
• Three keyway setting points on cam sprocket for accurate timing adjustment
• Cast iron cam sprocket with 35,000 PSI tensile strength for durability
• Billet SAE-1144 steel crank sprocket, induction heat treated for wear resistance
• Engineered for engines operating up to 6,500 RPM maximum
• Direct replacement for stock timing sets with performance enhancements

Installation Notes:

• Never hammer directly on chain or sprockets; use a sleeve or brass drift punch, alternating blows to avoid cocking the sprocket
• Do not stretch the chain with a screwdriver during installation
• Verify clearance between timing chain and engine block, and between chain and front cover before final assembly
• Ensure cam and crank sprockets are precisely aligned to prevent premature chain failure

The Performer-Link timing set combines proven materials engineering with practical design to deliver long-lasting, dependable performance for street engines and moderate performance builds. The adjustable keyway positions allow proper timing alignment for both early and late-model engine configurations.
