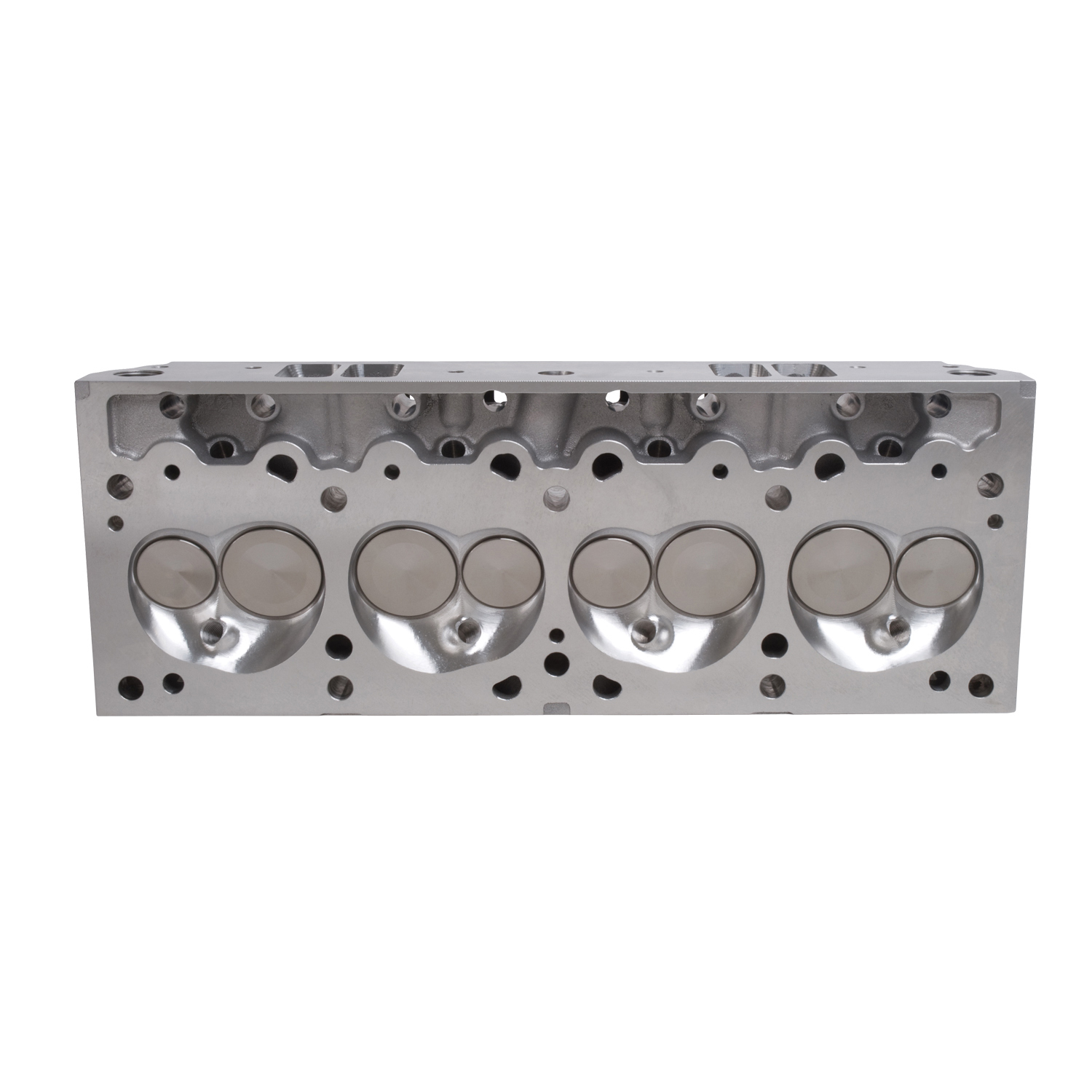

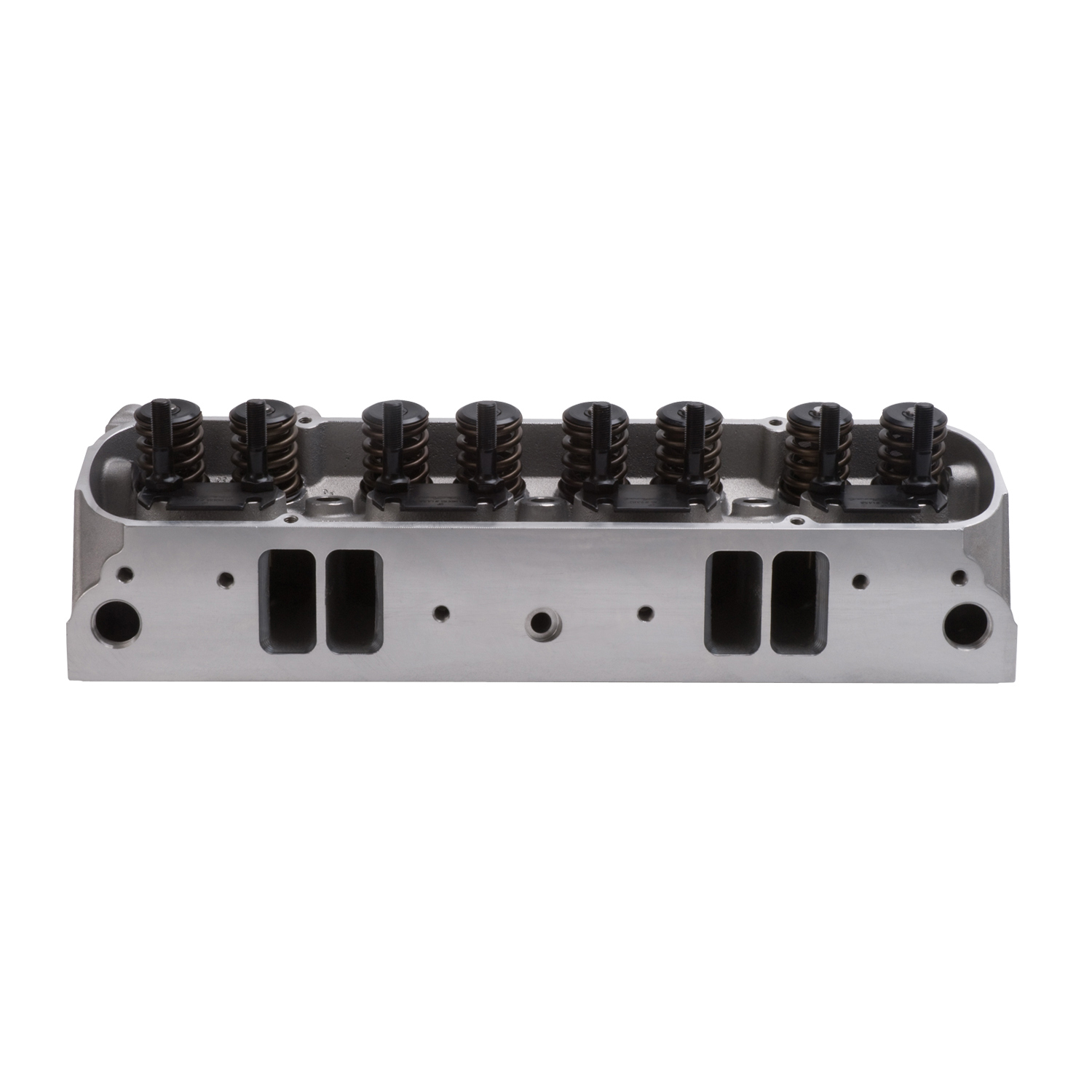

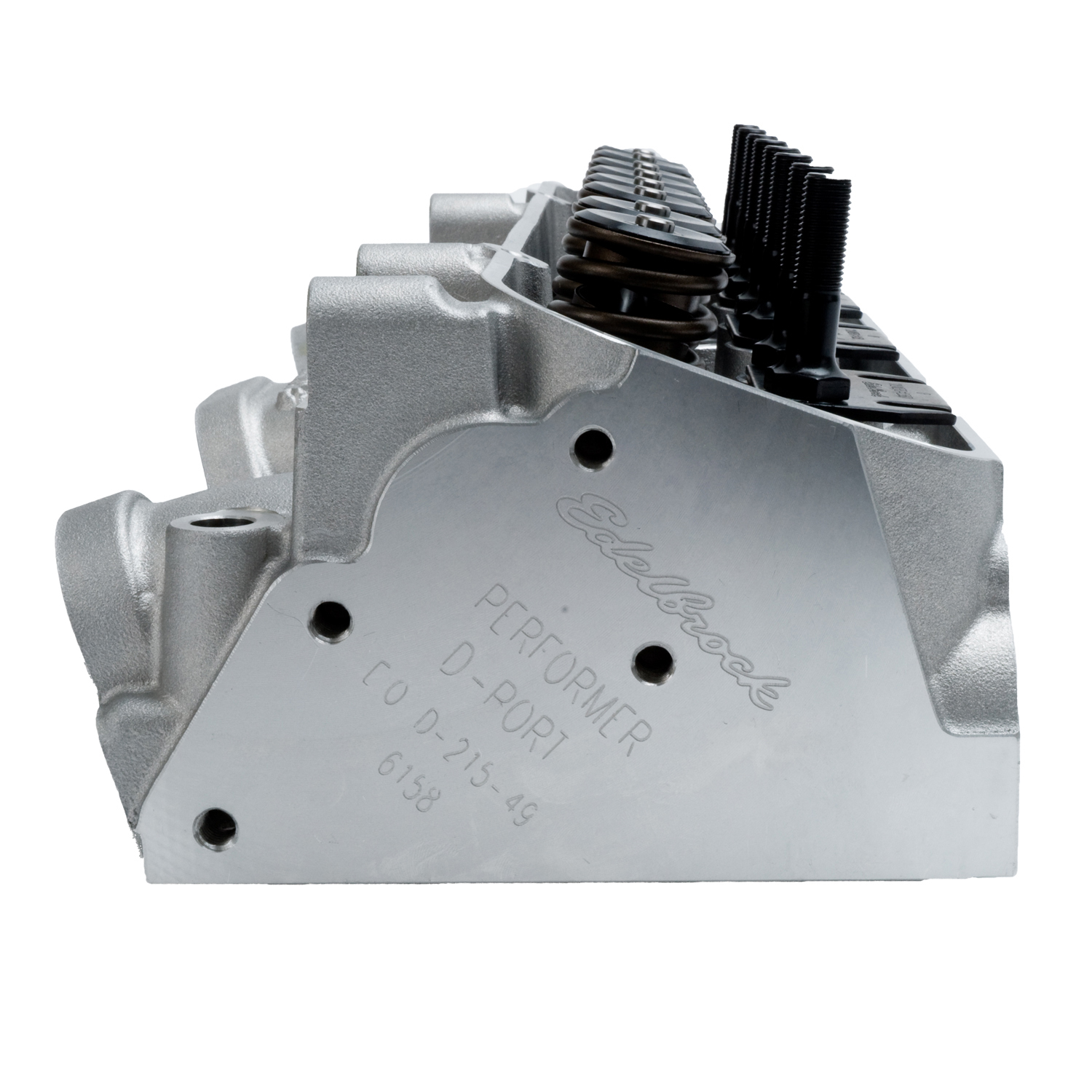

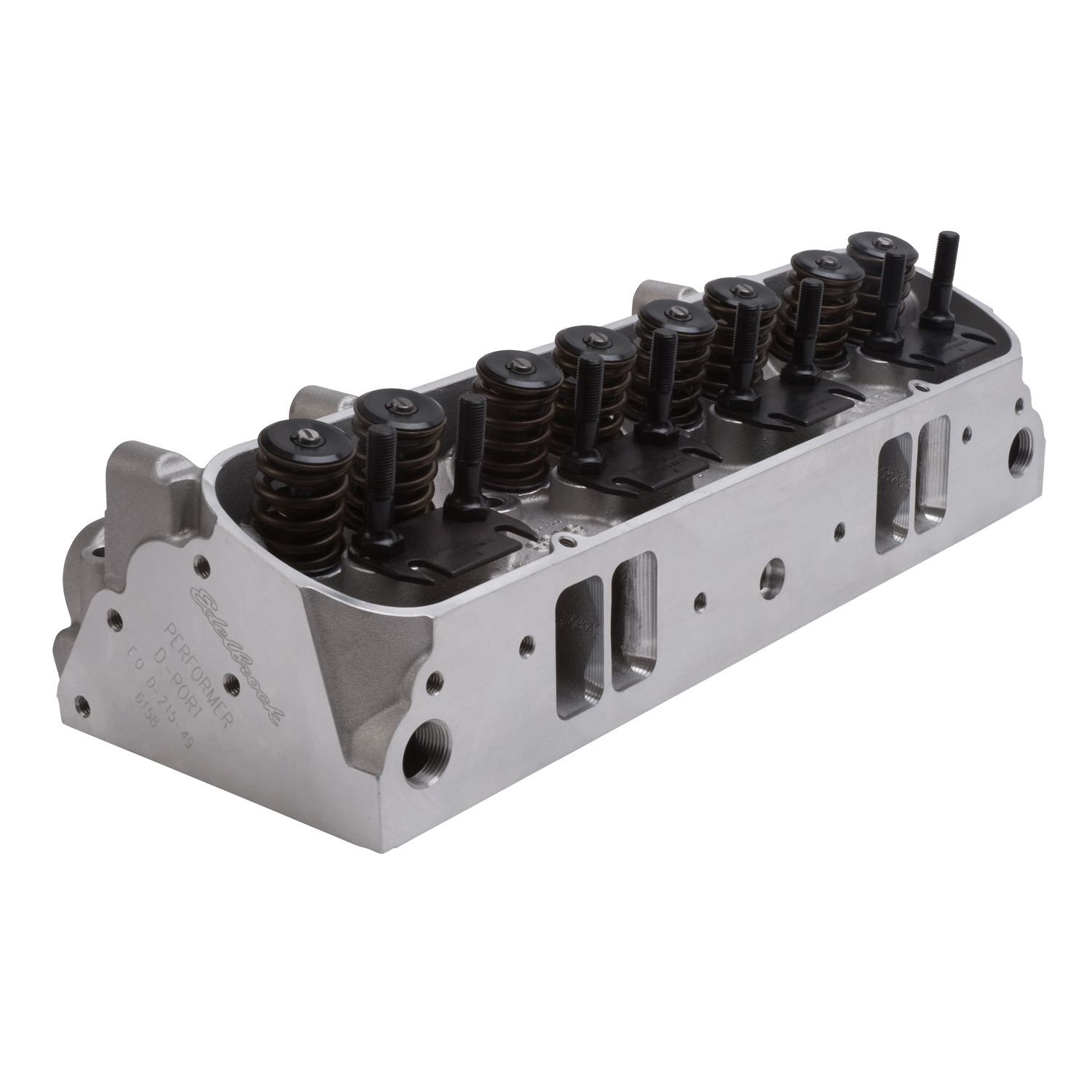

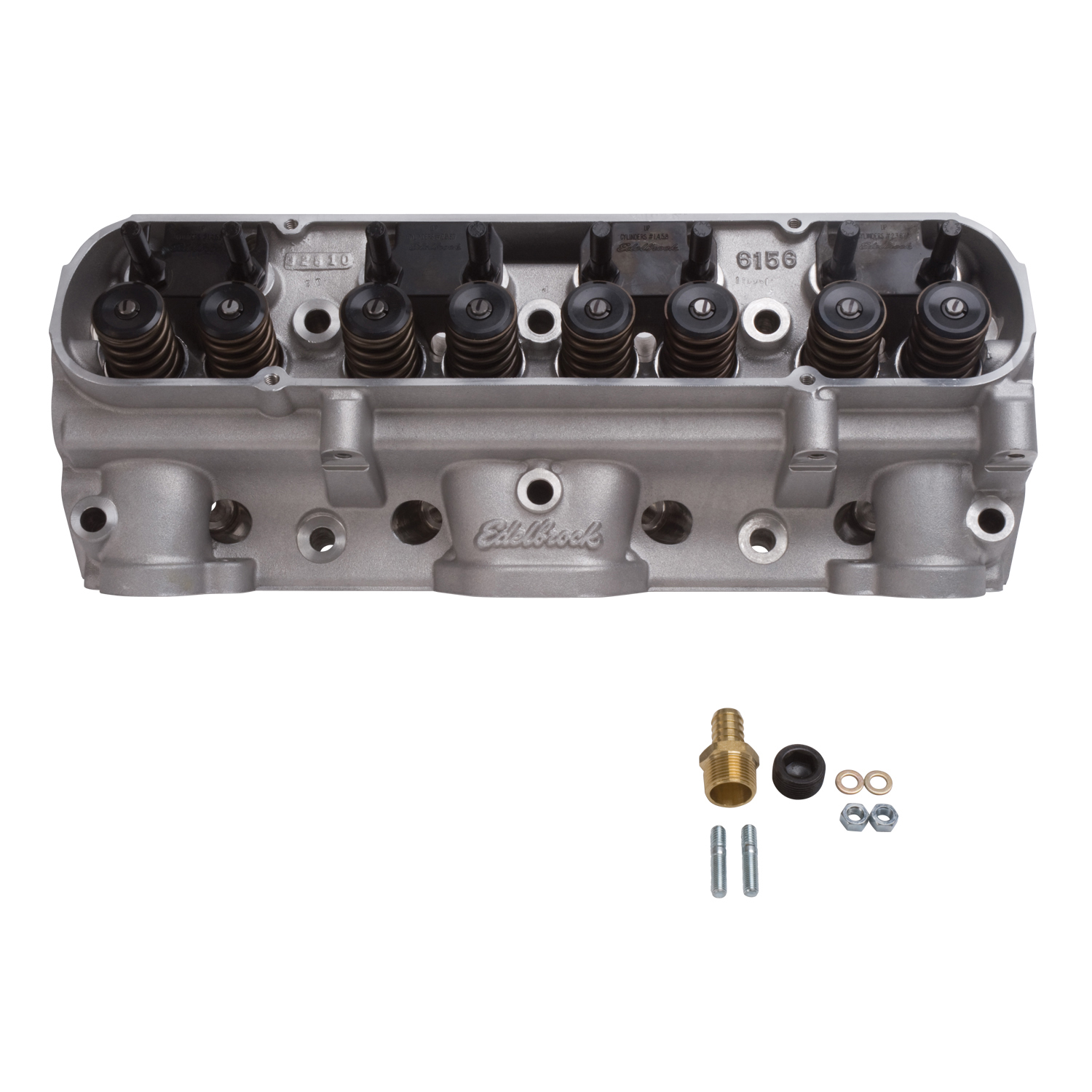

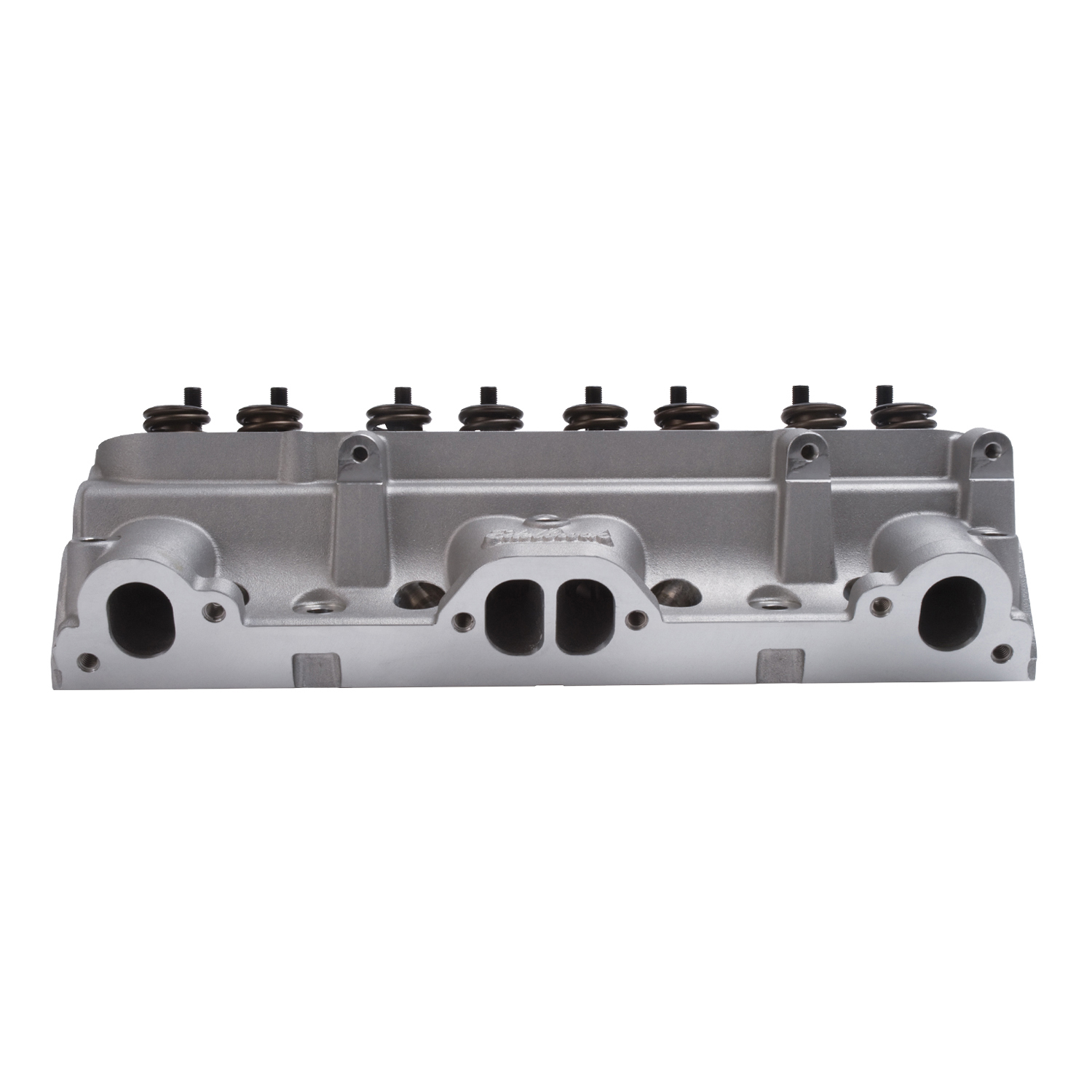

Edelbrock 61599 Pontiac D-Port Cylinder Head 72cc Hydraulic Flat Tappet

Manufacturer

Part Number

61599
Black Friday Price

$1,734.95

2 left at this price

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Edelbrock 61599 Pontiac D-Port cylinder head is a complete, direct bolt-on cylinder head for Pontiac V8 engines. It has a 72cc chamber and is set up for a hydraulic flat tappet cam. The D-Port exhaust port configuration works with standard D-port exhaust systems.

Key Features:

  • D-Port exhaust port configuration for use with standard D-port exhaust systems
  • 72cc chamber, for use with a hydraulic flat tappet cam
  • Optimized oil return passages for increased oil flow
  • Spark plug relocated closer to the exhaust valve for improved performance
  • Cast with extra thick port walls and a compact port size, making it well suited to CNC and hand porting
  • Complete head with guide plates, rocker studs and a high quality valvetrain for direct bolt-on installation
  • Heat crossover machined for 50-state emissions legal performance

This cylinder head suits Pontiac V8 builds that need a ready-to-install head with a D-Port exhaust layout and improved oiling.

Products specifications

Guide Plate Material

Hardened Steel

Seat Angle

Exhaust 45 deg/Intake 45

CARB Executive Order Number

D-215-94

EGR Port

Yes

Combustion Chamber Volume

72

Valve Included

Yes

Quantity

Sold individually

Exhaust Port Location

Standard

Series

Performer

Material

Aluminum

Valve Angle

14

Grade Type

Performance

Family

Performer

Retainer Included

Yes

RGL

WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

Construction Type

Complete

Valve Stem Diameter

0.3438

Horsepower

400-500

Rocker Stud Diameter

0.4375

Deck Thickness

0.625

Camshaft Type

Flat Tappet

Valve Spring Diameter

1.46

Seat Material

Ductile Iron

Guide Plates Included

Yes

Push Rod Diameter

(Suggested) 0.3125

Guide Material

Manganese Bronze

Intake Runner Volume

204

Valve Spring Maximum Lift

0.575

Valve Springs Included

Yes

Exhaust Valve Diameter

1.66

CNC Ported

Yes

Intake Valve Diameter

2.11

Exhaust Runner Volume

145

Rocker Arm Stud Diameter

0.4375
