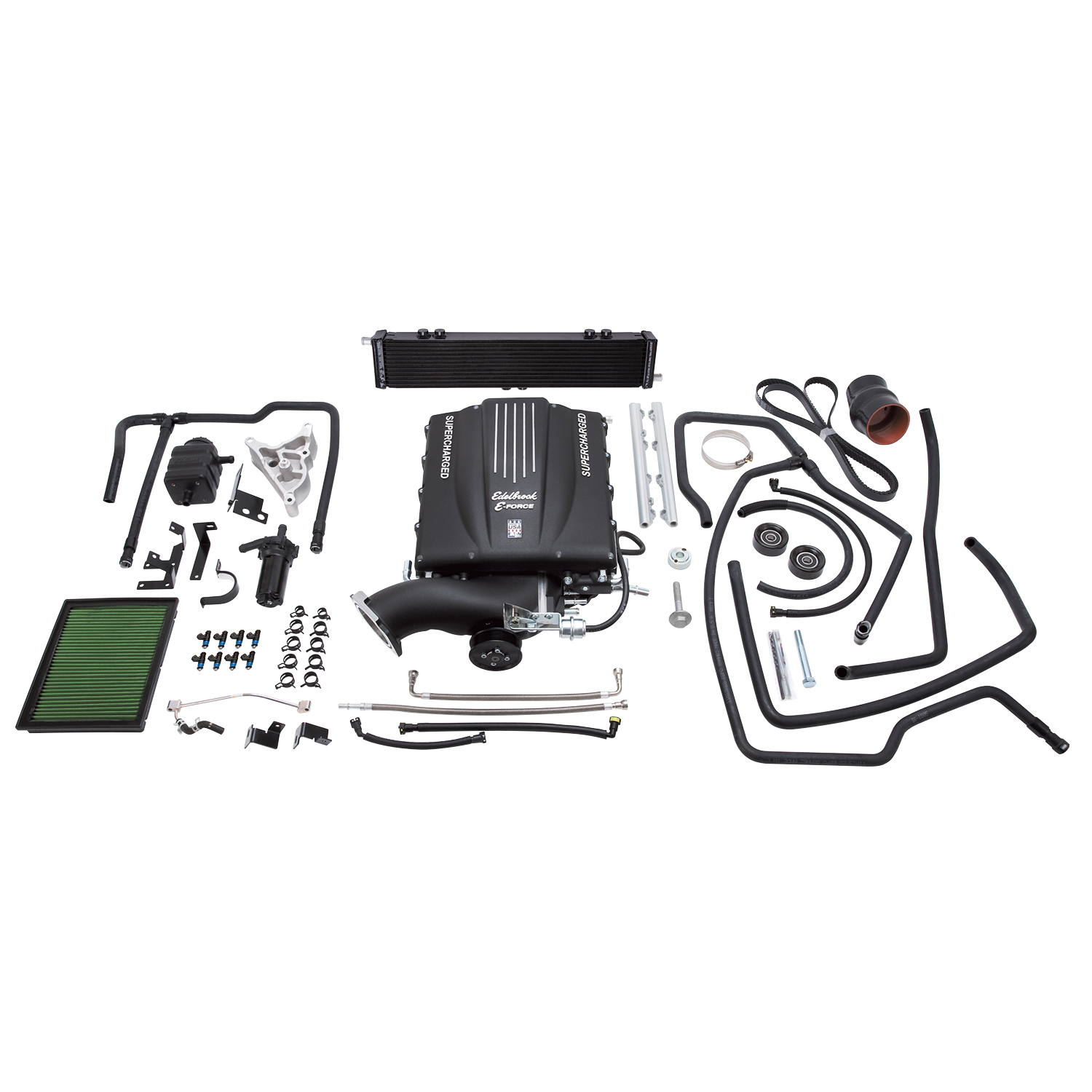

Edelbrock 15770 E-Force Stage 1 Supercharger Kit for GM 4.8L/5.3L/6.0L Gen III

(2003-2006 Chevrolet Silverado 1500; 2007 Chevrolet Silverado 1500 Classic; 2003-2006 GMC Sierra 1500; 2007 GMC Sierra 1500 Classic)

Manufacturer

Part Number

15770
Black Friday Price

$8,487.21

Estimated ship date Tuesday, December 01

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Edelbrock E-Force Stage 1 Street Supercharger System delivers substantial performance gains for 2003-2006 Silverado and Sierra 1500, plus 2007 Sierra Classic trucks equipped with 4.8L, 5.3L, or 6.0L Gen III engines. This complete bolt-on system is designed to provide immediate throttle response and significant power increases throughout the RPM range.

Performance Gains:

  • 6.0L Engine: 364 horsepower and 397 ft-lbs of torque at the rear wheels
  • 4.8L Engine: 339 horsepower and 359 ft-lbs of torque at the rear wheels
  • 5.3L Engine: 339 horsepower and 359 ft-lbs of torque at the rear wheels

Key Features:

  • Eaton Gen VI 2300 TVS supercharger with four-lobe rotor design and 160-degree twist for maximum airflow and efficiency
  • High-capacity air-to-water intercooler system with low-temperature heat exchanger for consistent performance
  • Integrated bypass valve reduces parasitic loss under light throttle conditions for improved fuel economy
  • Efficient inlet configuration eliminates the need for a jack-shaft, creating a shorter and less restrictive intake path
  • Quiet operation and excellent drivability for daily driving

Important Notes: This kit does not include a handheld programmer or tuning device. An Edelbrock-approved tune is required to achieve stated performance numbers and maintain emissions compliance. Supercharger systems without tuners are only emissions legal when used with the correct Edelbrock programming.

This is a complete Stage 1 street system designed for easy installation and reliable performance enhancement on GM truck platforms.

Products specifications

Fits

2003-2006 Chevrolet Silverado 1500; 2007 Chevrolet Silverado 1500 Classic; 2003-2006 GMC Sierra 1500; 2007 GMC Sierra 1500 Classic

Finish

Black Powder Coated

CARB Executive Order Number

D-215-110

Outside Pulley Diameter

4.125

Mounting Hardware Included

Yes

Universal Or Specific Fit

Specific

Internal Step Up

Yes

Mounting Bracket Included

Yes

Gasket Or Seal Included

Yes

Housing Material

Cast aluminum

Harmonic Balancer Diameter

7.5

Oil Capacity

150

RGL

WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

Fuel Injector Type

42

Hose Included

Yes

Calibration

No

System Type

Stage 1 - Street System

Pulley Belt Width

6-Rib

Air Filter Included

Yes

Vehicle Model

Silverado

Center Housing Cooling Type

Intercooler

Rotor Type

Eaton TVS 2300

Quantity

Kit

9040

D-215-110
