Edelbrock 77949 Victor Max Wedge Cylinder Head Big Block Chrysler B/RB with Valves

(Chrysler 300 1962-71, Town & Country 1959-61, 1963-77, Newport 1965-78, New Yorker 1966-78, Imperial 1966-74, Cordoba 1975-78, Saratoga 1959-60 + 91 more models)

Manufacturer

Part Number

77949
Sale Price

$1,147.70

In Stock (10+)

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

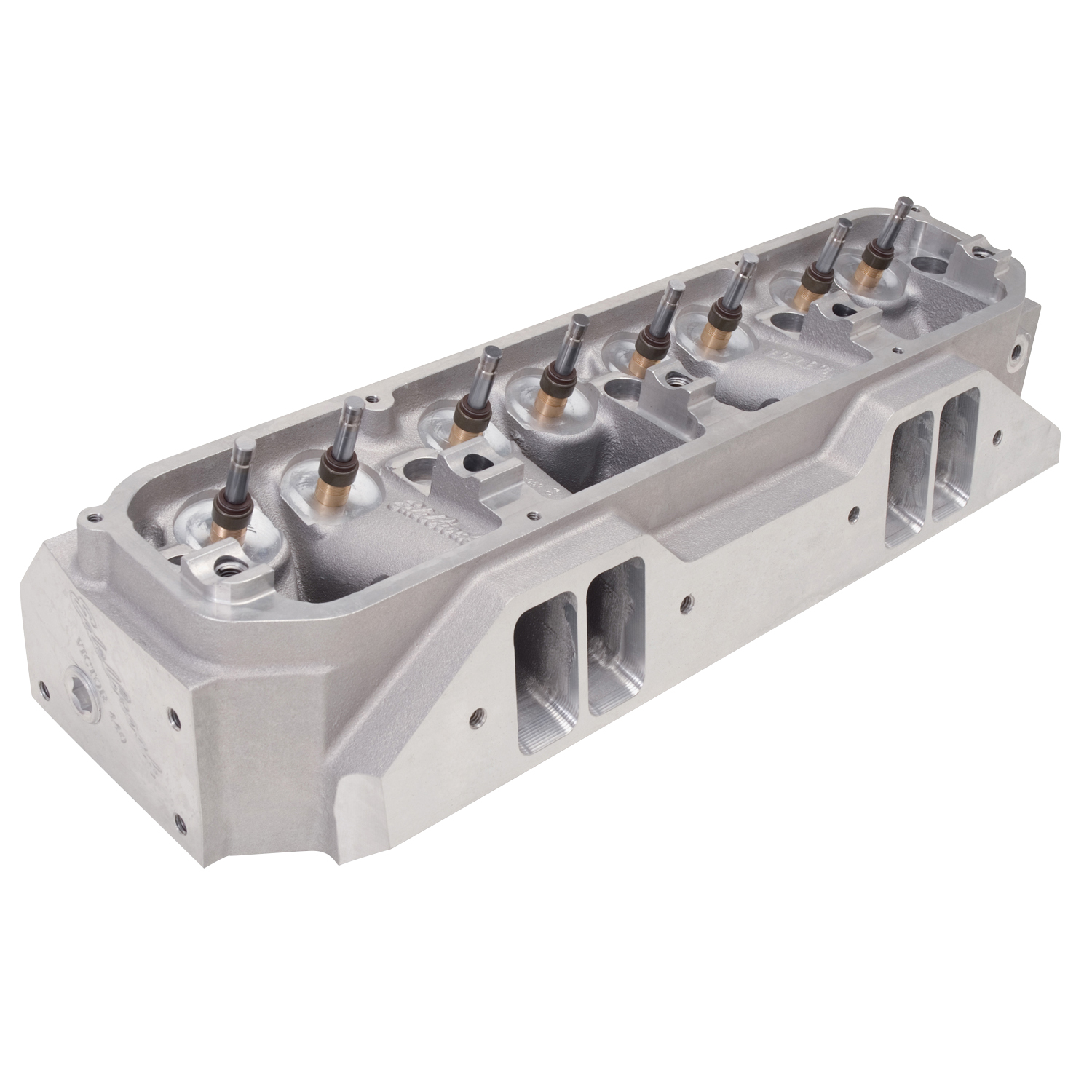

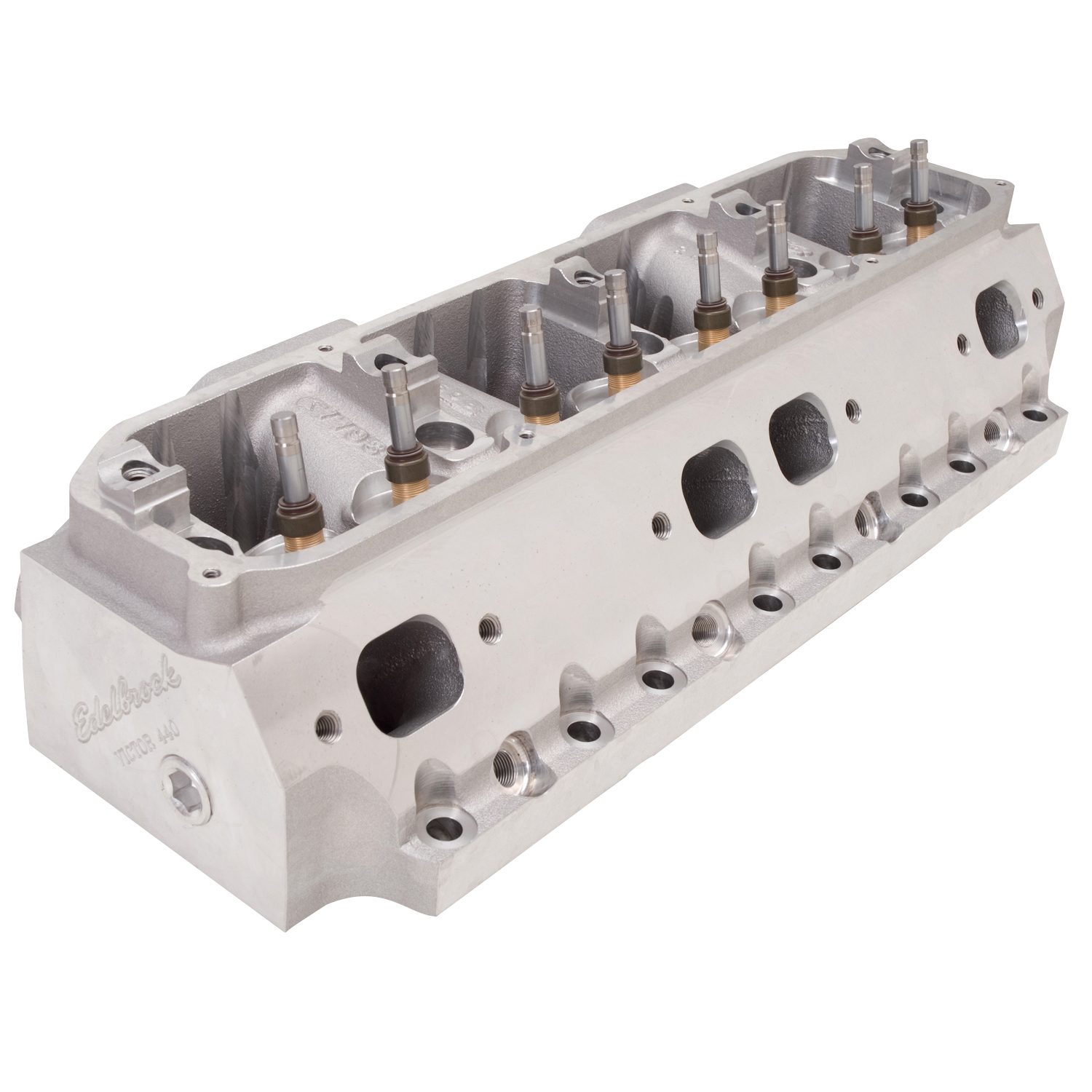

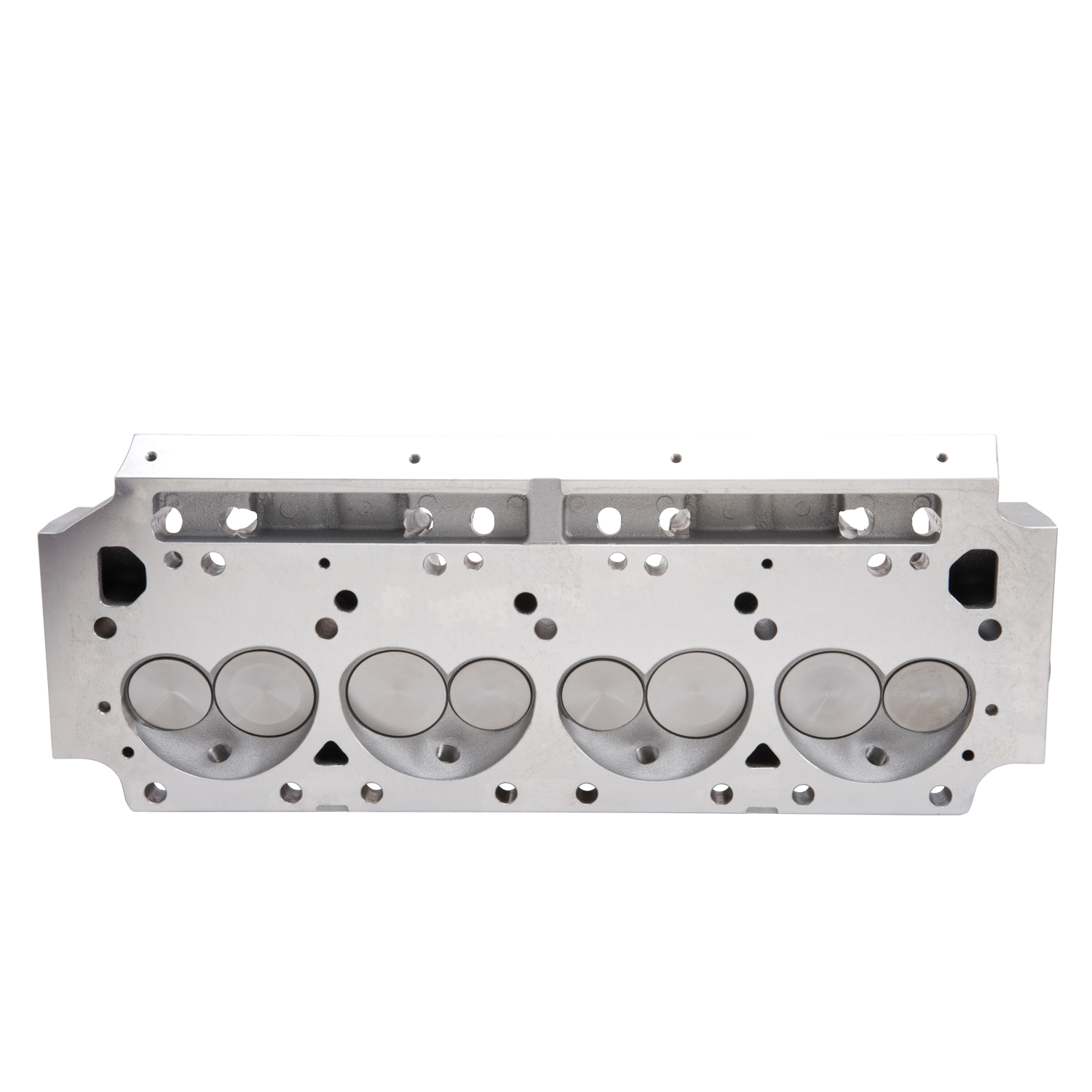

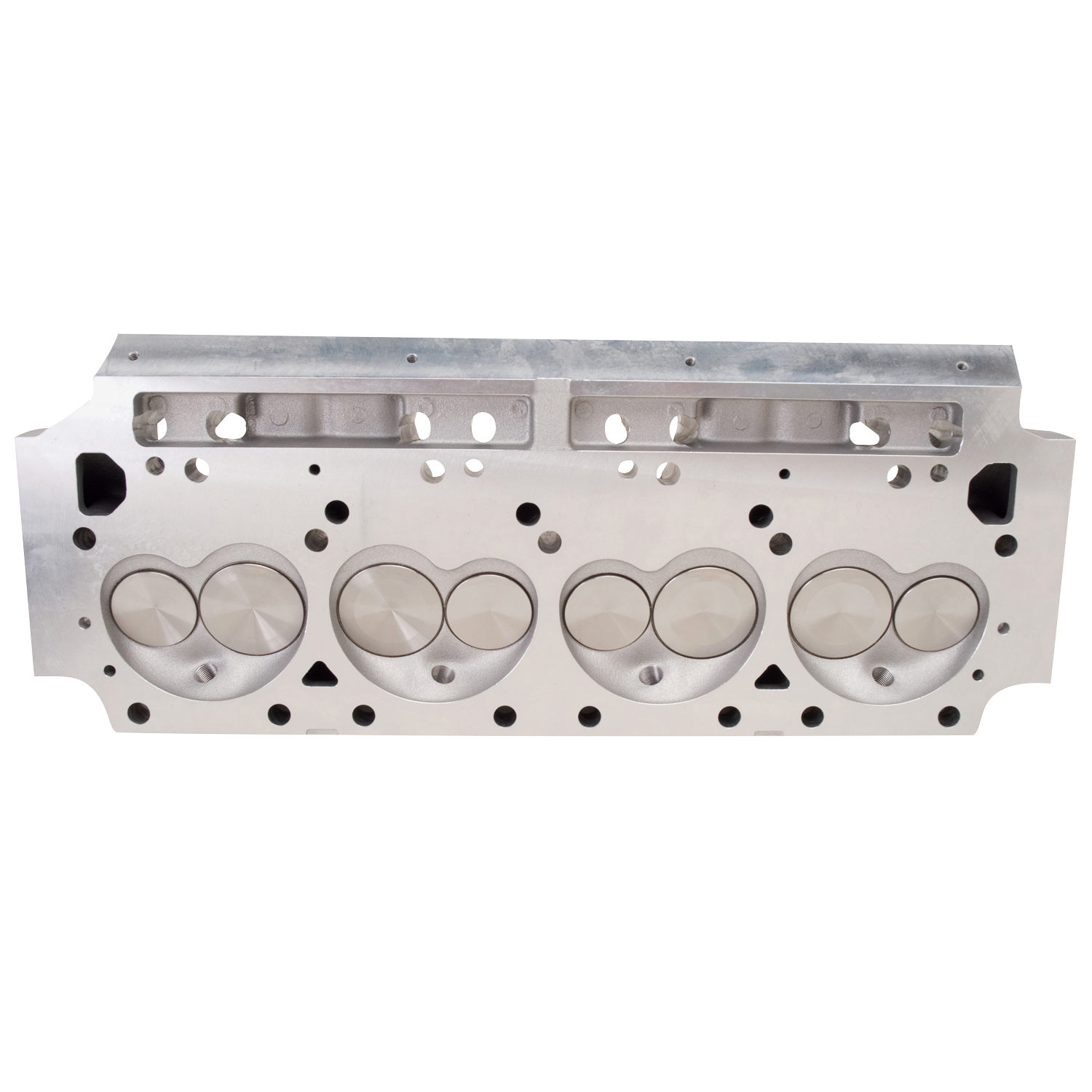

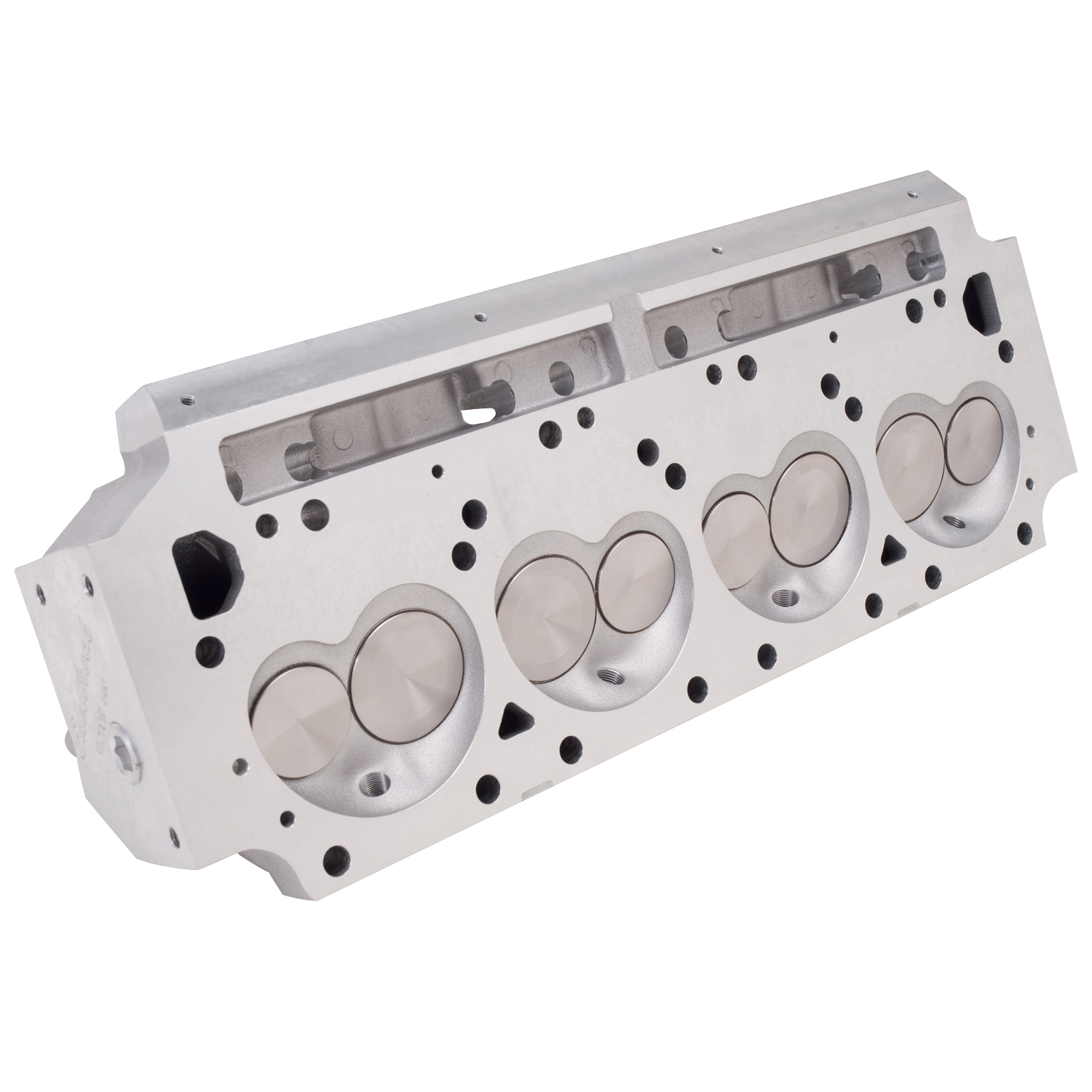

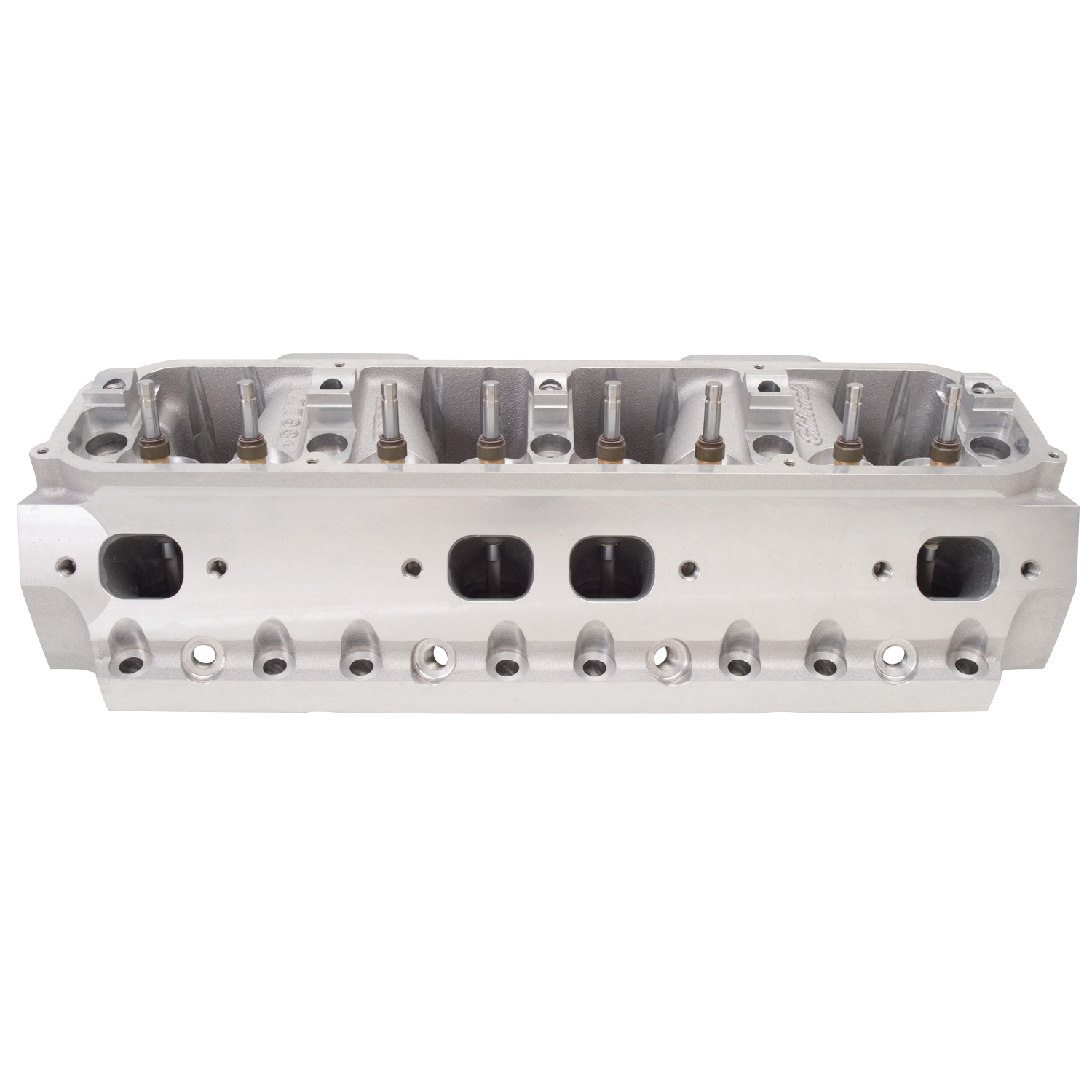

The Edelbrock 77949 Victor Series Max Wedge cylinder head is engineered for all-out competition in Big Block Chrysler B and RB engines. Developed in collaboration with top racers including Billy Glidden, John Urist, and Pat Musi, this competition-ready cylinder head delivers maximum performance for serious racing applications.

Performance Features:

  • Intake ports raised 0.650" and exhaust ports raised 0.250" for significantly improved airflow
  • Intake flange extended 0.950" to eliminate the need for intake spacer plates
  • Exhaust flange extended 0.300" from stock (same as Mopar Stage 6 specification)
  • 72cc combustion chamber volume for optimal compression ratios
  • Max Wedge intake ports precisely machined to match B and RB competition intake manifolds
  • Best-in-class standard port location cylinder head for competition Big Block Chrysler engines

Construction and Compatibility:

  • Compatible with OE valve train and pistons for bolt-on convenience
  • Fits Edelbrock Victor manifolds for both high and low deck engines
  • Dry exhaust bolt holes feature Heli-Coil thread inserts for maximum durability
  • Revised combustion chambers and relocated valves optimized for competition

What's Included:

  • Bare cylinder head with valves installed
  • Note: Sold without valve springs or retainers—use springs matched to your specific camshaft profile

This Victor Series cylinder head represents the pinnacle of Big Block Chrysler Max Wedge performance, delivering the airflow and combustion efficiency needed for serious racing applications.

Products specifications

Fits

Chrysler 300 1962-71, Town & Country 1959-61, 1963-77, Newport 1965-78, New Yorker 1966-78, Imperial 1966-74, Cordoba 1975-78, Saratoga 1959-60, Windsor 1959-61; Dodge Charger 1966-78, Challenger 1970-74, Dart 1960-62, 1967-69 + 87 more models

Combustion Chamber Volume

72

Intake Runner Volume

290

Construction Type

Bare With Valves

Valve Included

Yes

CNC Ported

No

Seat Material

Ductile Iron

Intake Valve Diameter

2.20

Exhaust Port Location

+.250

Quantity

Sold individually

Deck Thickness

0.625

Seat Angle

Exhaust 45 deg/Intake 45

RGL

WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

Family

Victor

Series

Victor

Guide Plates Included

No

Retainer Included

No

Valve Springs Included

No

Exhaust Runner Volume

100

Exhaust Valve Diameter

1.81

Grade Type

Performance

EGR Port

No

Valve Stem Diameter

0.3438

Valve Angle

15

Guide Material

Manganese Bronze

Material

Aluminum

Guide Plate Material

Hardened Steel
