Edelbrock 8510 Cylinder Head Stud Kit for LS-R Heads on LSX Blocks

Manufacturer

Part Number

8510
Black Friday Price

$1,979.95

In Stock (5)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Edelbrock 8510 Cylinder Head Stud Kit is a complete hardware package specifically engineered for installing Edelbrock LS-R cylinder heads (part numbers 770468 and 770469) on GM LSX engine blocks. This comprehensive kit ensures proper clamping force and secure fastening for high-performance applications.

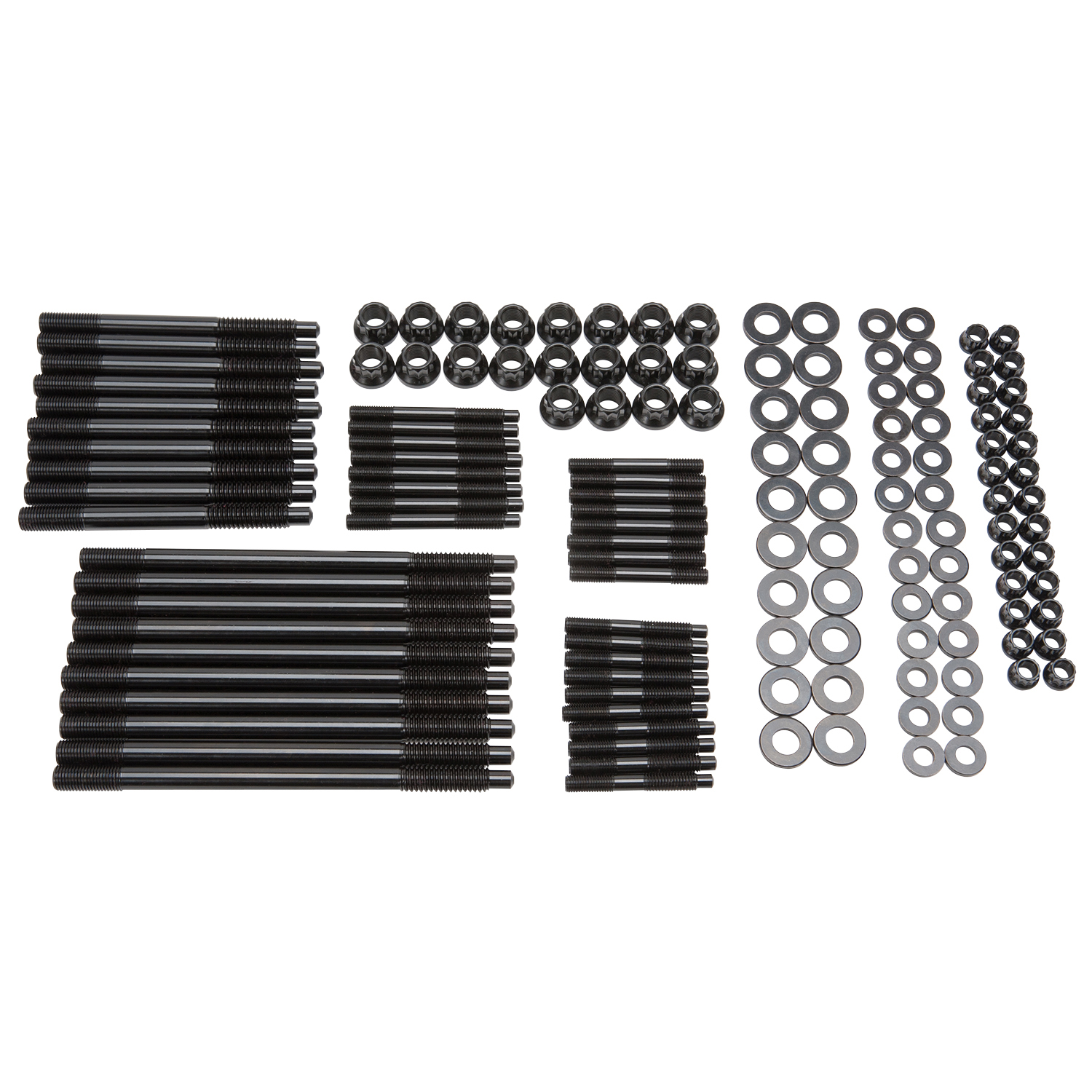

Kit Includes:

  • 10 long 7/16" head studs for primary cylinder head mounting
  • 10 short 7/16" head studs for secondary mounting positions
  • 8 exhaust manifold studs (5/16") for secure exhaust mounting
  • 10 intake manifold flange studs (5/16") for intake system attachment
  • 8 valley cover studs (5/16") for valley cover installation
  • 20 washers and nuts (7/16") for head stud assembly
  • 26 washers and nuts (5/16") for manifold and valley stud assembly

This stud kit is essential for proper installation of Edelbrock LS-R cylinder heads on LSX blocks, providing the correct length and thread specifications for reliable engine assembly. The inclusion of both head studs and manifold hardware makes this a complete solution for engine builders and performance enthusiasts.

Products specifications

Quantity

Kit

Grade

Performance

Length

(8-Valley) 2.35 in, (10-Intake) 2.40 in, (8-Outside) 3.00 in, (10-Short) 4.95 in, (10-Long) 7.37

End 1 Thread Diameter

0.4375

End 2 Thread Type

Fine

End 1 Thread Type

Fine

End 2 Thread Diameter

0.3125

Washers Included

Yes

RGL

WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

Recommended Use

With Part #770468, #770469

Material

Chromoly

Finish

Black Oxide
