Edelbrock 79949 E-CNC Gen III LS Cylinder Head for LS1/LS2 Engines

(Chevrolet Camaro 1998-2002, 2010-15, Corvette 1997-2004, 2006-13, Trailblazer 2006-09, SS 2014-17, SSR 2005-06; Pontiac GTO 2004-06 + 4 more models)

Manufacturer

Picture for manufacturer Edelbrock

Part Number

79949
8 reviews
Sale Price

$1,805.07

Estimated ship date Tuesday, November 24

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

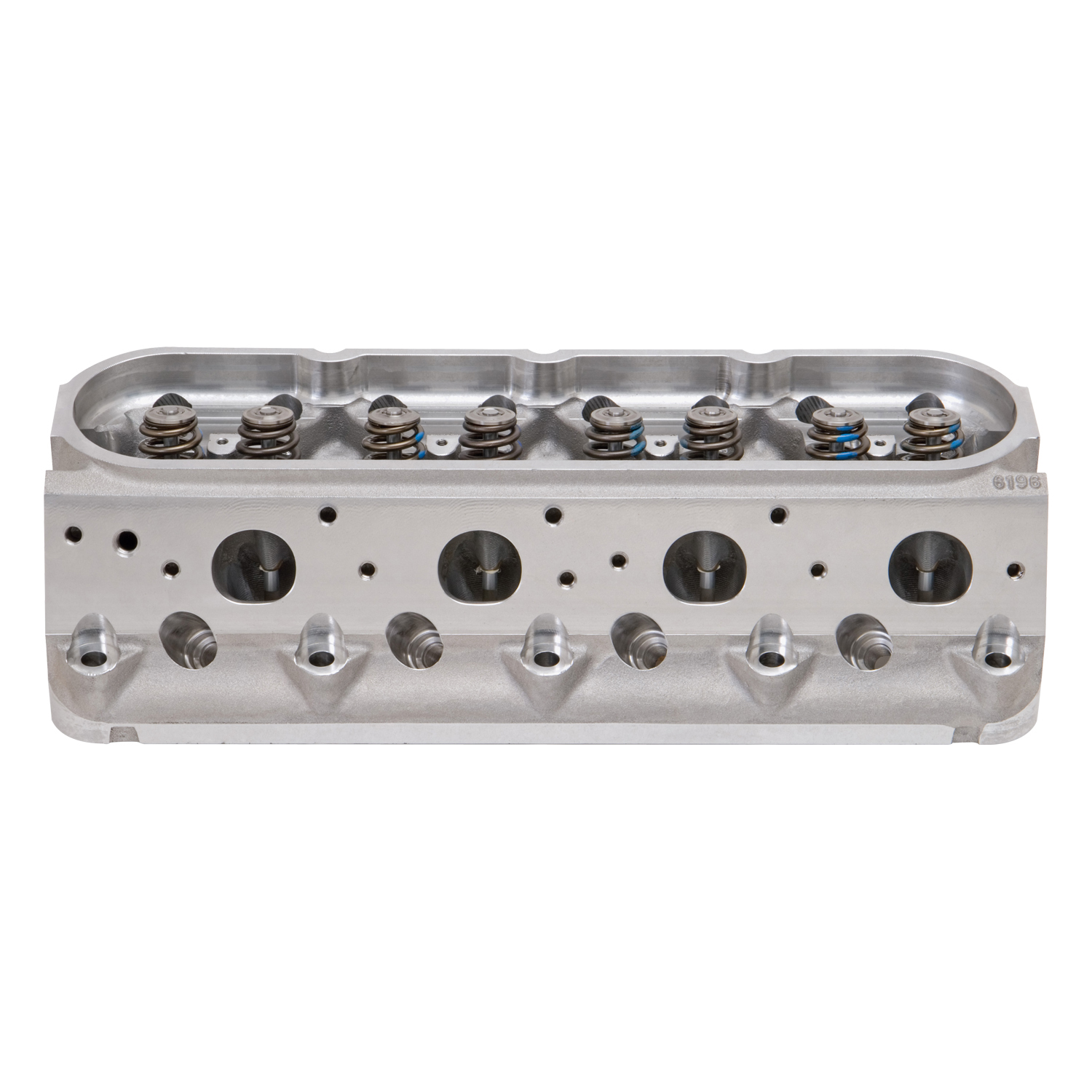

The Edelbrock 79949 E-CNC Small Block Chevy Gen III & IV LS cylinder head is engineered for 1997 and later LS1/LS2 Chevy engines, including 4.8L, 5.3L, 5.7L, and 6.0L applications. This high-performance cylinder head features fully CNC-machined intake ports, combustion chambers, and exhaust ports for optimized airflow and power delivery.

Key Features:

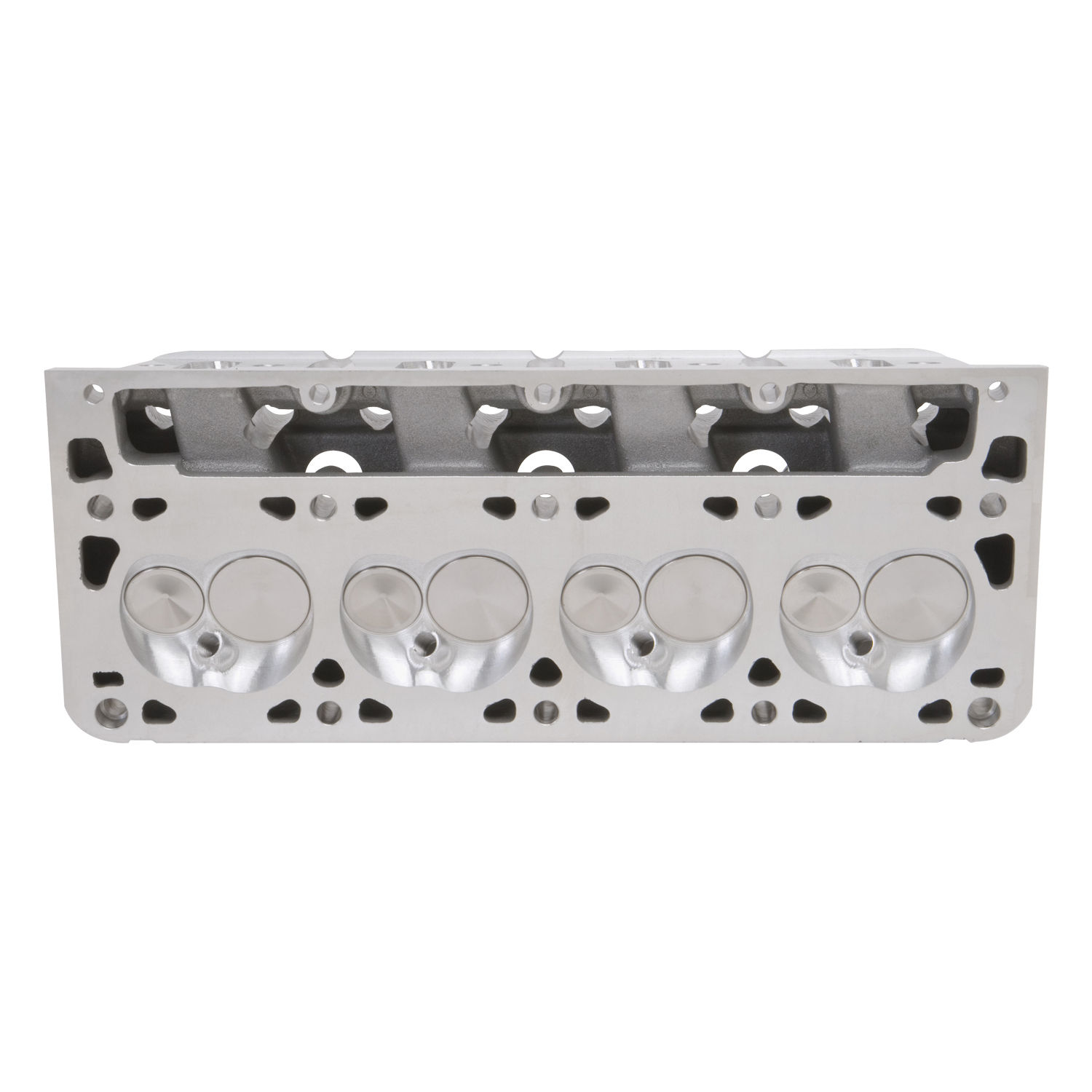

  • Fully CNC-ported intake ports, exhaust ports, and combustion chambers for maximum flow efficiency
  • Dyno-proven performance: 457 horsepower and 438 ft-lbs of torque
  • High-quality conical beehive valve springs with steel retainers and locks
  • Supports valve lift up to .600 inches for aggressive camshaft profiles
  • Compatible with Edelbrock LS series intake manifolds and camshafts
  • 50-state street legal (CARB compliant)
  • Requires rocker bolt kit #8597 (shorter bolts prevent protrusion into intake ports)

This E-CNC 215 cylinder head is designed to work seamlessly with hydraulic roller camshafts and delivers exceptional performance gains when paired with Edelbrock's complete LS performance lineup. Ideal for street performance, hot rod, and muscle car builds seeking reliable, emissions-compliant power increases.

Products specifications

Fits

Chevrolet Camaro 1998-2002, 2010-15, Corvette 1997-2004, 2006-13, Trailblazer 2006-09, SS 2014-17, SSR 2005-06; Pontiac GTO 2004-06, Firebird 1998-2002, G8 2009; Cadillac CTS 2006-07; Avanti II 2001-04

Seat Material

Ductile Iron

Material

Aluminum

Grade Type

Performance

RGL

WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

Valve Spring Maximum Lift

0.680

Deck Thickness

0.625

Retainer Included

Yes

Intake Runner Volume

215

Push Rod Diameter

(Suggested) 0.3125

Valve Angle

15

Exhaust Runner Volume

76

Exhaust Port Location

Standard

Intake Valve Diameter

2.02

Construction Type

Complete

Guide Plates Included

No

Exhaust Valve Diameter

1.57

Horsepower

400-500

EGR Port

No

Valve Springs Included

Yes

Combustion Chamber Volume

65

Valve Spring Diameter

1.30

Camshaft Type

Hydraulic Roller

Family

E-CNC

Seat Angle

Exhaust 45 deg/Intake 45

CNC Ported

Yes

Guide Material

Manganese Bronze

Series

E-CNC

Quantity

Sold individually

CARB Executive Order Number

D-215-70

Valve Included

Yes

Valve Stem Diameter

0.314961
