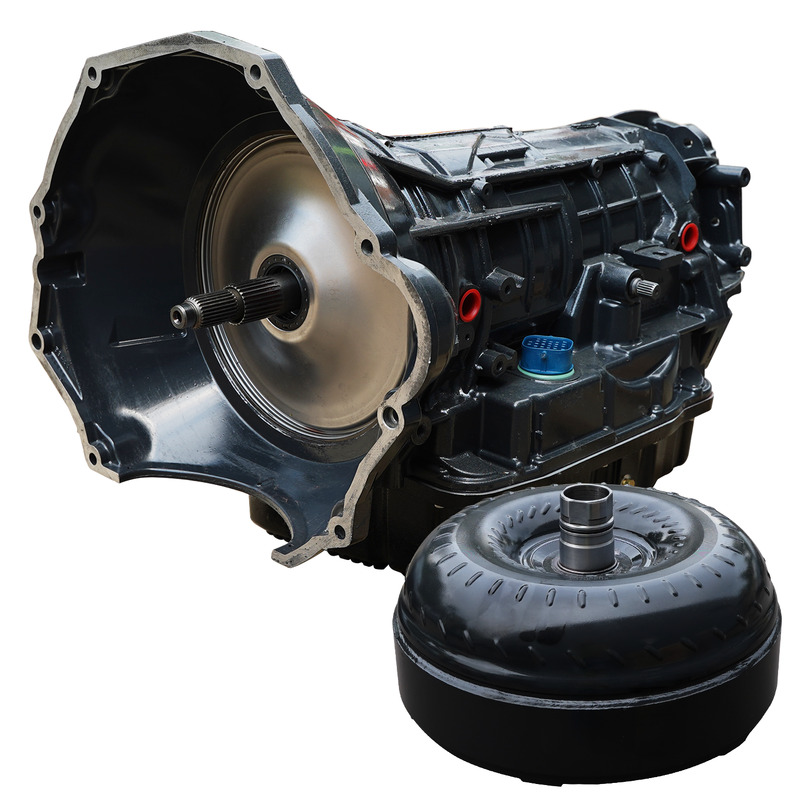

BD Diesel 1064294SS TowMaster Transmission Converter Package Dodge - 68RFE 2019-2024 4WD

The BD Diesel TowMaster 68RFE Transmission and Torque Converter Package delivers a dyno-tested, matched transmission and converter combination engineered for maximum performance and reliability in 2019-2024 Dodge 4WD applications. This complete package features BD's heavy-duty deep sump pan for increased fluid capacity and cooling, ensuring your transmission can handle the extreme power and torque demands of modern diesel engines.

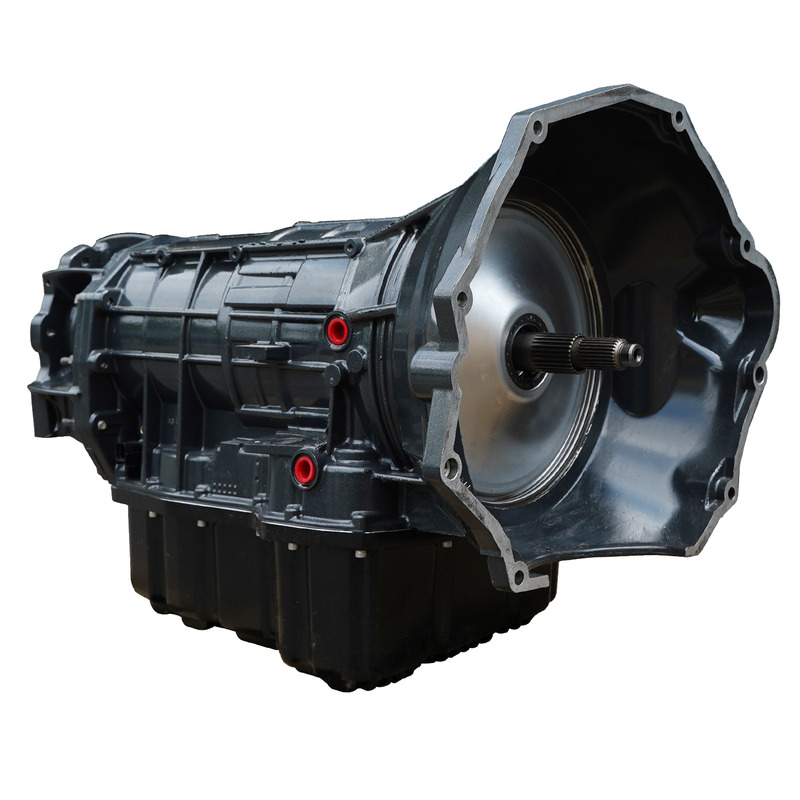

Transmission Features:

• Hard anodized valve body with new solenoid pack installed
• Custom bonded gasket valve body separator plate increases line pressure and eliminates internal cross leaks
• Heavy-duty cam and roller design Low Reverse one-way clutch
• New 4C billet spring retainer for enhanced durability
• Steel girdle added to 2C piston allows for increased clutch count and broader apply area
• BD QT100 durable pressure plates reduce deflection and distortion within clutch drums
• 33% increase in Overdrive clutch capacity and 33% increase in 2C clutch capacity
• Custom Big Stack Overdrive shaft
• BD reinforced accumulator plate
• BD deep sump oil pan adds extra fluid capacity and reduces case flex

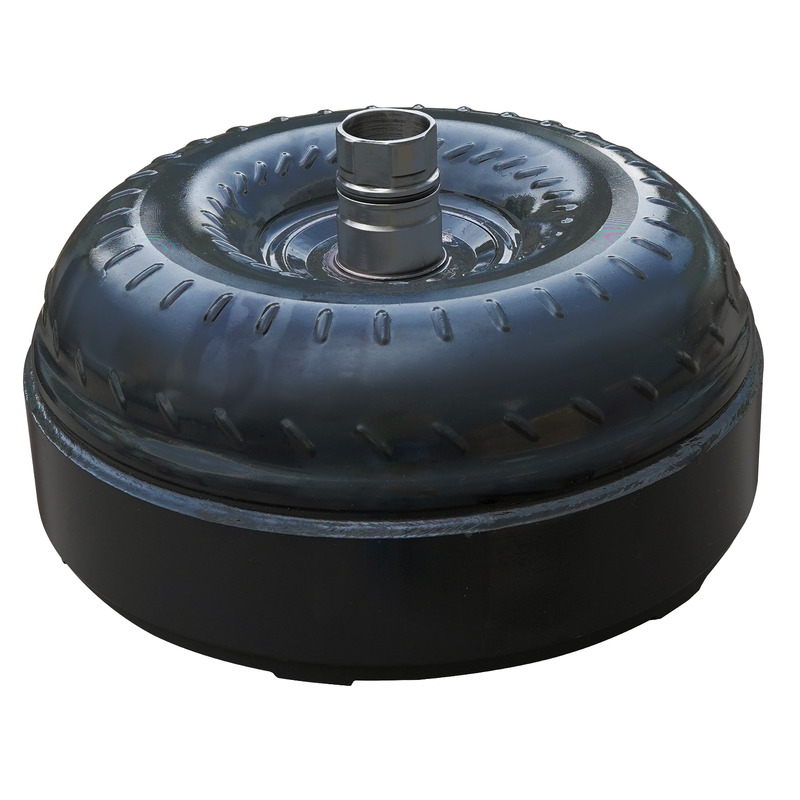

ProForce Torque Converter Features:

• Rated for 550 flywheel horsepower
• High-performance enhanced stall stator for improved response
• Lower RPM response compared to stock converter
• Furnace-brazed turbine fins for superior fluid coupling efficiency
• Upgraded damper springs
• 11.625-inch dual-clutch design
• Billet forged front cover with reinforced walls and stronger mounting pads

Installation & Warranty:

Estimated installation time is 9 hours. Includes a 36-month/150,000-mile parts warranty and 12-month/24,000-mile labor warranty (race abuse not covered). Important: Special tuning required for 2019-up applications to achieve increased line pressure. Line Pressure Controller sold separately.

Emissions Compliance:

This product is legal for sale and use in all 50 states, including California. Classified as replacement parts.
