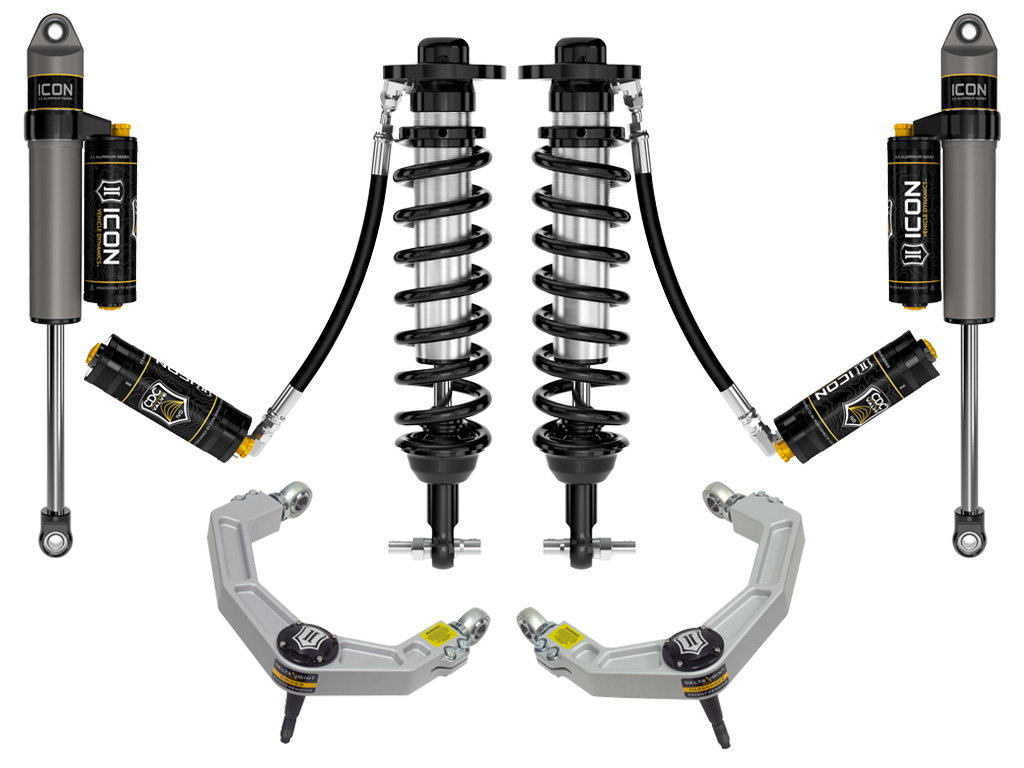

ICON Vehicle Dynamics K93125 Stage Suspension System Ford Lift Tubular UCA - 5 2021-2023 F-150 2WD 0-3

The ICON Vehicle Dynamics Stage 5 Suspension System for 2021-2023 Ford F-150 2WD trucks delivers maximum on-road and off-road performance through engineered components designed to increase wheel travel, damping ability, and overall vehicle control. This comprehensive bolt-on system requires no cutting or welding and maintains factory towing capacity while dramatically improving ride quality and capability.

Key Components:

• 2.5" Coilover Shocks: Vehicle-specific tuned coilovers with external remote reservoir and CDCV (Compression Damping Control Valve) for exceptional heat dissipation and adjustable damping performance
• ICON-Engineered Eibach Coil Springs: Precision-wound springs provide superior vehicle feel throughout the entire range of suspension travel
• Billet Aluminum Upper Control Arms: Tubular UCAs increase strength and durability while retaining factory alignment specifications, adding caster over stock with additional caster/camber adjustability
• 2.5" Aluminum Series Piggyback Rear Shocks with CDCV: Vehicle-specific valving balances front-to-rear performance with 10 externally adjustable settings from soft to hard
• Height Adjustability: Coilovers adjust from 0-3 inches of lift to accommodate larger, more aggressive wheel and tire combinations

ICON Delta Joint Technology:

The upper control arms feature ICON's patented Delta Joint, a revolutionary design that combines the durability of a heavy-duty ball joint with the performance characteristics of a traditional uniball. Unlike standard uniballs that suffer from exposure to elements in daily driven applications, the Delta Joint features a zinc-plated housing for corrosion resistance and a robust grease seal to protect internal components. The metal-on-metal construction with greaseable design ensures extended longevity and noise-free operation while providing greater angularity than typical ball joints and superior durability compared to uniballs.

Performance Features:

• FK Rod End bearings throughout for extended component life and minimal deflection under load
• 2.5" CDC (Compression Damping Control) reservoirs front and rear maintain cooler operating temperatures during heavy use
• Remote reservoirs increase oil capacity for consistent damping performance in demanding conditions
• Complete bolt-on installation with no permanent vehicle modifications required
• Maintains factory towing capacity while significantly enhancing ride quality and wheel travel

This Stage 5 system represents ICON's most comprehensive suspension upgrade for the 2WD F-150 platform, delivering professional-grade performance and adjustability for enthusiasts who demand the ultimate in suspension capability.
