ICON Vehicle Dynamics K93124 Stage Suspension System Ford Lift Billet UCA - 4 21-23 F150 2WD 0-3

(2021 Ford F-150; 2014-2019 Toyota Corolla; 2003-2006 Subaru Baja)

Manufacturer

Part Number

K93124
Black Friday Price

$3,291.05

4 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ICON Vehicle Dynamics Stage 4 Suspension System transforms the 2021-2023 Ford F150 2WD into a capable on-road and off-road performer with 0-3" of adjustable lift. This comprehensive system maximizes wheel travel and damping ability while maintaining factory towing capacity, delivering exceptional vehicle control and ride quality in any driving situation.

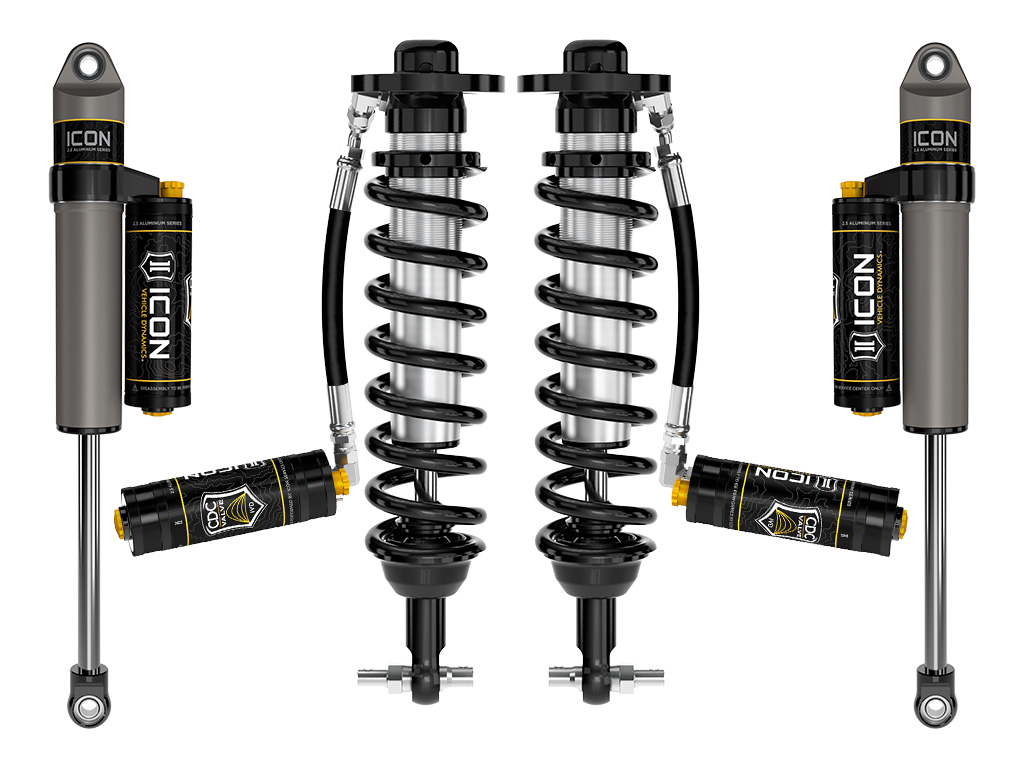

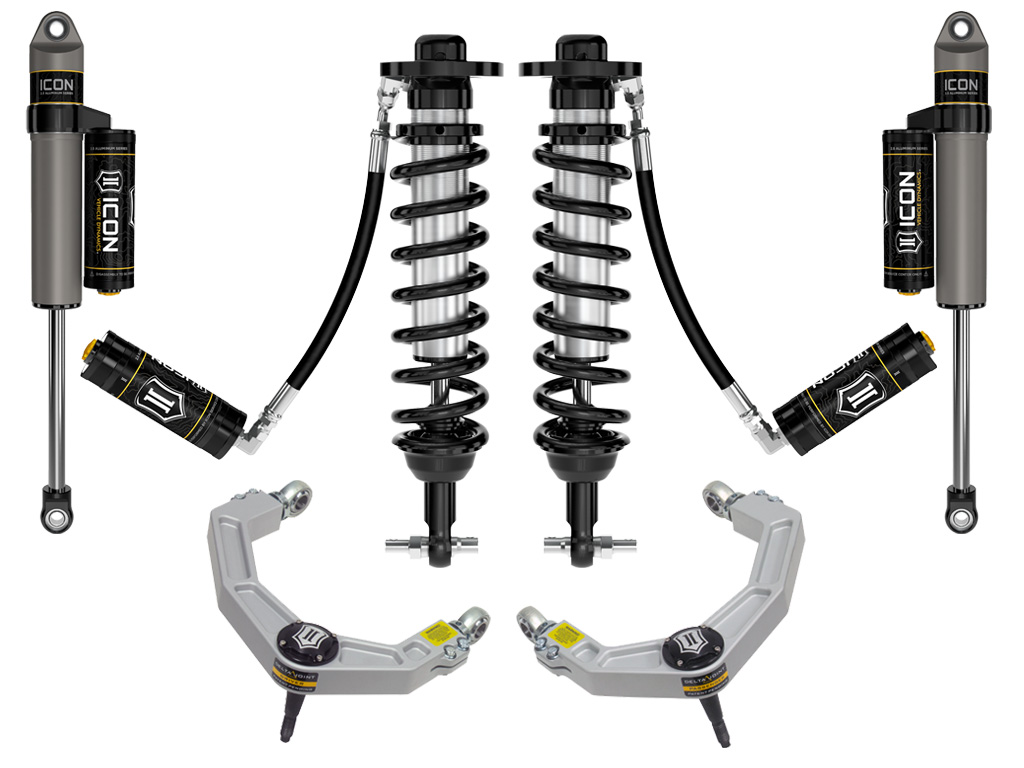

System Components:

  • Vehicle-specific tuned 2.5" coilover shocks with external remote reservoirs for superior cooling during extended off-road use
  • ICON-engineered Eibach coil springs for exceptional vehicle feel through the full range of travel
  • Height-adjustable coilovers (0-3" lift) accommodate larger, more aggressive wheel and tire combinations
  • Billet aluminum upper control arms with patented Delta Joint technology
  • 2.5" Aluminum Series Piggyback rear shocks with vehicle-specific valving
  • High-strength alloy CNC machined lower bar pins
  • FK Rod End bearings for extended longevity and minimal deflection

Delta Joint Technology:

The upper control arms feature ICON's patented Delta Joint, a heavy-duty high-angle ball joint that combines the durability of a traditional ball joint with the performance characteristics of a uniball. The Delta Joint features a zinc-plated housing for corrosion resistance and a robust grease seal to protect internal components from the elements. This metal-on-metal, greaseable design delivers noise-free operation, greater angularity than standard ball joints, and superior durability compared to uniballs in daily driving conditions.

Performance Benefits:

  • Increased wheel travel and ride quality over stock suspension
  • No reduction in towing capacity
  • Improved caster over stock with additional caster/camber adjustability
  • Maintains factory alignment specification range
  • Balanced front-to-rear performance through matched shock valving
  • Consistent damping performance with cooler operating temperatures

This Stage 4 system is engineered for drivers who demand maximum capability from their F150 2WD, whether navigating daily commutes or tackling challenging off-road terrain.

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Products specifications

Fits

2021 Ford F-150; 2014-2019 Toyota Corolla; 2003-2006 Subaru Baja

Spring Color

Black

Add-On Part

191014 - .25" COLLAR SPANNER PIN WRENCH

Bushings Included

Yes

OEM Wheels & Tires Fitment

Yes

Add-On Part

191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)

Recommended Aftermarket Wheels

ICON Alloys | 20x9" w/ 5.625" Backspace / 16mm Offset

Maximum Lift

3

Recommended Aftermarket Wheels

ICON Alloys | 17x8.5" w/ 5” Backspace / 6mm Offset

Add-On Part

198001 - BILLET SPANNER WRENCH KIT

Spring Material

Steel

Coils Quantity Front

2

Recommended Aftermarket Wheels

ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset

Shocks Included

Yes

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT

Grade Type

Performance

Add-On Part

252012 - -4 TO -10 HOSE SHIELD KIT

Recommended Aftermarket Tires

33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

Add-On Part

611071 - DYNAMIC HEADLAMP KIT

Add-On Part

191013 - NIPPLE GREASING ADAPTER KIT

Mounting Hardware Included

Yes
