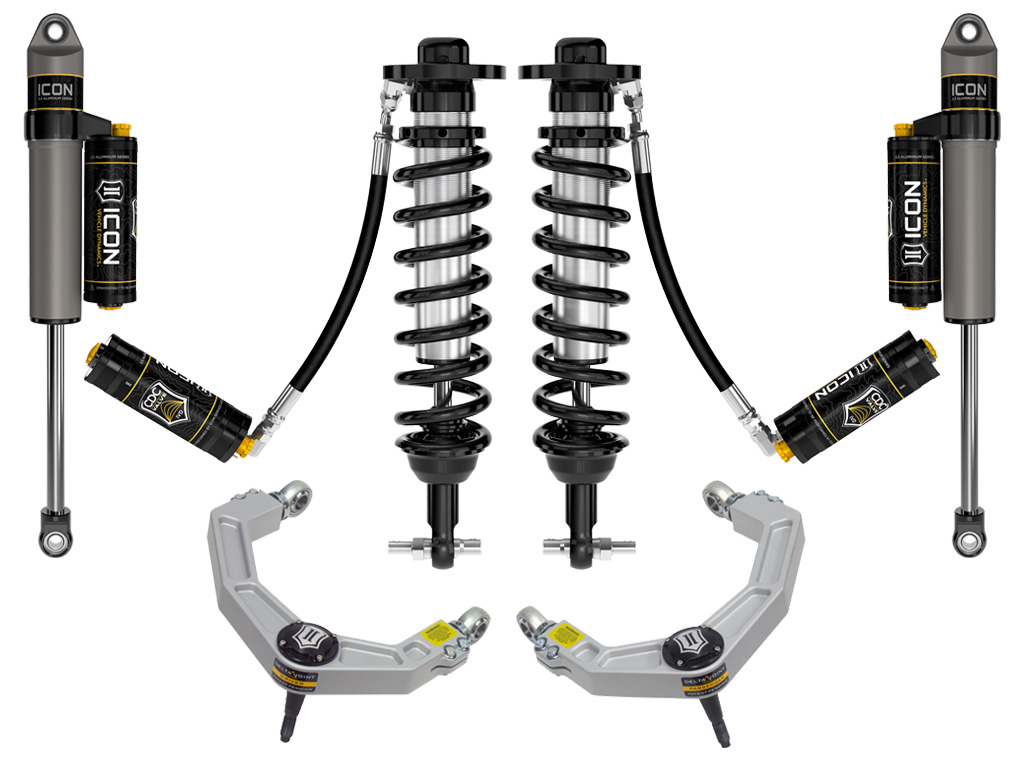

ICON Vehicle Dynamics K93115 Stage 5 Suspension System 2021-2023 Ford F150 4WD 0-2.75" Lift with Billet Upper Control Arms

The ICON Vehicle Dynamics Stage 5 Suspension System for 2021-2023 Ford F-150 4WD trucks is engineered for maximum performance both on and off-road. This comprehensive bolt-on system increases wheel travel and damping ability while maintaining factory towing capacity, delivering exceptional vehicle control and ride quality without requiring any cutting or welding.

Front Suspension Components:

• Vehicle-specific tuned 2.5" coilover shocks with remote reservoirs featuring CDC Valves for exceptional heat dissipation
• Corrosion-resistant CAD plated coilover shock bodies with 7/8" shafts for durability
• ICON-engineered Eibach coil springs providing superior vehicle feel through the full range of travel
• Height adjustable from 0-2.75" of lift to accommodate larger, more aggressive wheel and tire combinations
• Billet aluminum upper control arms with increased caster over stock for improved alignment spec range
• Additional caster and camber adjustability for precise alignment tuning
• High strength alloy CNC machined lower bar pin

Rear Suspension Components:

• 2.5 Aluminum Series piggyback reservoir rear shocks with CDC Valves
• Hard anodized, one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Vehicle-specific valving that balances front-to-rear performance

ICON Delta Joint Technology:

The upper control arms feature ICON's patented Delta Joint, a revolutionary heavy-duty high-angle ball joint that combines the durability of a traditional ball joint with the performance characteristics of a uniball. The Delta Joint offers superior angularity compared to standard ball joints while providing better protection from the elements than uniballs. Key features include a zinc-plated housing for corrosion resistance, a tough grease seal to keep contaminants out, metal-on-metal construction for longevity, and a greaseable design for noise-free operation.

This Stage 5 system is the ideal choice for drivers seeking to enhance their F-150's capabilities for daily driving, highway travel, and off-road adventures while maintaining factory-like refinement and full towing capacity.

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
