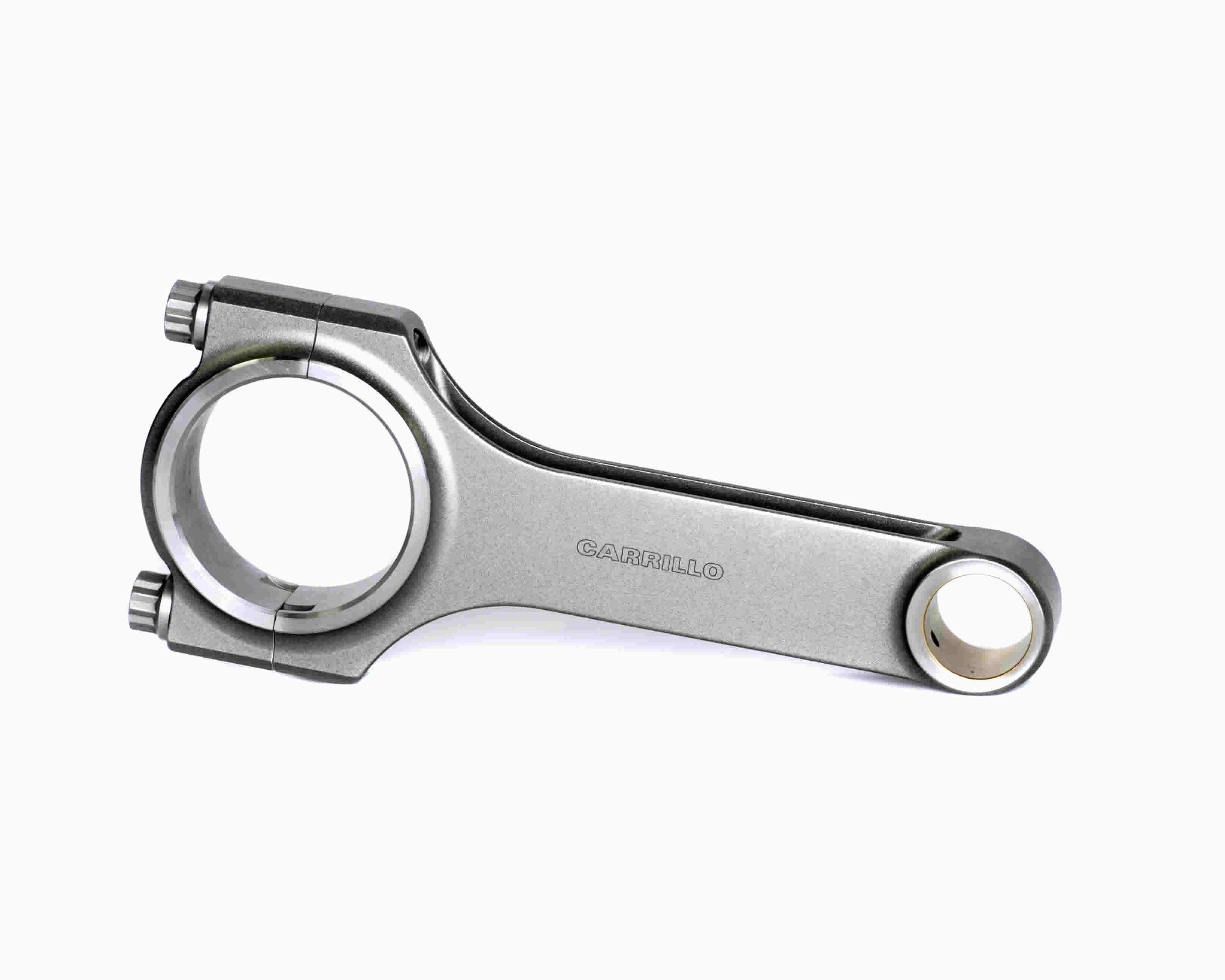

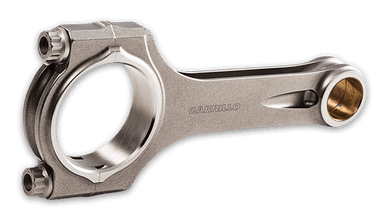

Carrillo SCR7069-4 Pro-H Beam Connecting Rod Set 4-Cylinder

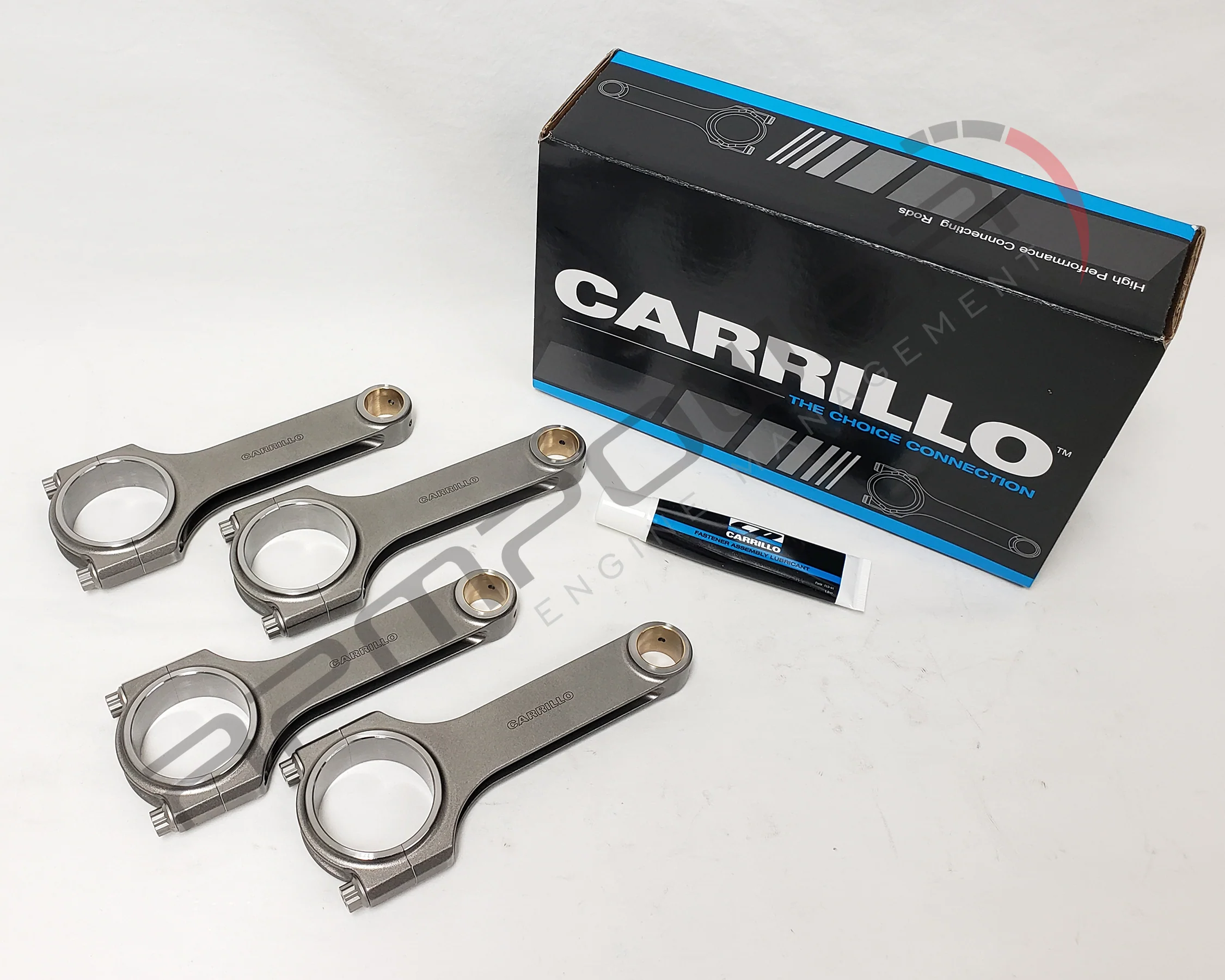

The Carrillo SCR7069-4 is a premium forged Pro-H beam connecting rod set designed for high-performance applications in BMW Mini Cooper S (N14 1.6L Turbo), Peugeot 207/308 1.6 PSA EP6CDT/EP6DTS, and Citroen C4/DS3 1.6L turbocharged engines. This complete matched set includes four precision-machined connecting rods engineered to handle extreme cylinder pressures and RPM.

Key Specifications:

• Rod length: 5.454 inches (138.53mm)
• Wrist pin diameter: 20mm bushed, full floating design
• Rod bolts: 5/16" CARR bolts (high-strength multiphase material)
• Weight: 459 grams per rod (advertised)
• Beam design: Straight Pro-H beam - the stoutest configuration available

Premium Construction:

• Manufactured from proprietary Carrilloloy steel alloy with chrome, nickel, molybdenum, and vanadium
• Precision forged from oversized forgings ensuring proper grain flow
• 100% CNC machined for extreme dimensional accuracy
• Each rod is Magnaflux inspected and Rockwell tested
• Set balanced to ±1 gram tolerance
• Heat treated via mar-aged operation for optimal strength

Carrillo Pro-H beam connecting rods represent the pinnacle of connecting rod technology, trusted by professional racing teams worldwide. The straight H-beam design provides maximum strength and rigidity, capable of handling the most abusive forces in turbocharged and high-RPM applications. CARR bolts offer superior strength compared to standard ARP2000 bolts, with ultimate tensile strength of 285,000 PSI.
