ARB BP5190013L Old Man Emu BP-51 Front Left Coilover for 2019-2023 Ford Ranger

Manufacturer

Part Number

BP5190013L
Sale Price

$949.95

3 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

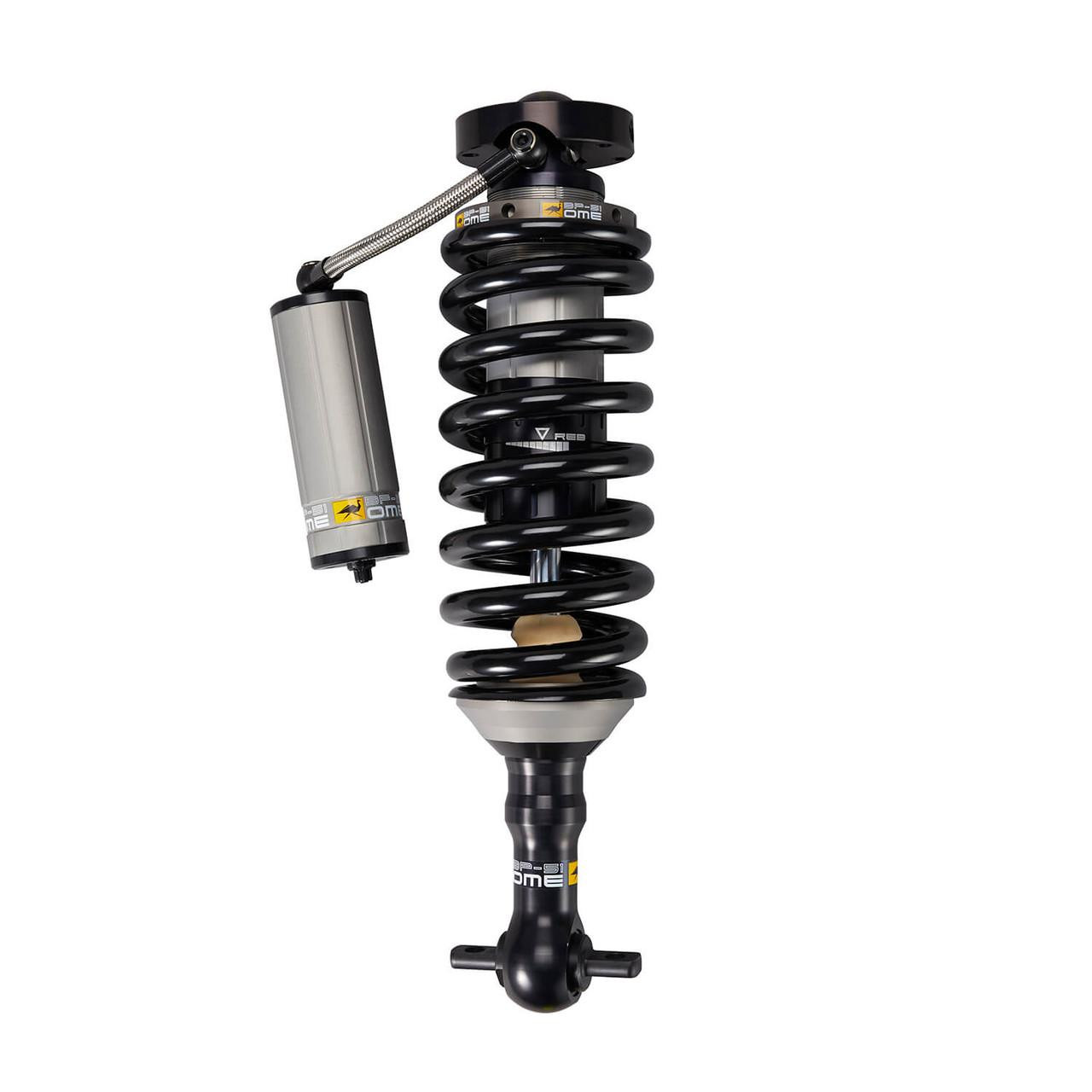

The ARB BP5190013L is an Old Man Emu BP-51 high-performance bypass coilover designed specifically for the front left position on 2019-2023 Ford Ranger vehicles. This premium coilover brings race-proven technology to your truck, delivering exceptional comfort on the highway and superior control in off-road conditions.

Advanced Bypass Technology

The BP-51 features a 51mm bore diameter with internal bypass design and position-sensitive damping. Unlike conventional adjustable shocks that only offer compression adjustment, the BP-51 provides independent adjustability of both rebound and compression damping. This allows you to fine-tune your suspension to match driving conditions, vehicle weight, and personal preferences. The internal bypass design uses kidney-shaped ports and high-strength shims to create multiple damping zones throughout the shock's travel, providing a plush ride at normal ride height while ramping up control as you approach full compression or extension.

Premium Construction and Components

Constructed from 6061-T6 aluminum with Type 3 hard anodized finish (40 micron) for superior heat dissipation and corrosion resistance. The coilover includes a remote reservoir with high-pressure nitrogen and aluminum anodized floating piston for consistent performance. Key features include a 19mm hard-chromed ground piston shaft, large Teflon-lined spherical bearings for smooth articulation, high-flow -6 fittings with high-temperature PTFE hose, and quality oversized rubber bushings. The shock uses high-viscosity index oil and incorporates Viton and PTFE seals for long-term reliability.

Complete Coilover Assembly

This unit comes pre-assembled with high-quality X5K grade steel coil spring with adjustable spring preload for ride height customization. The coilover is designed to bolt directly to factory mounting locations without vehicle modifications, making installation straightforward. Specifications include a closed length of 402mm (15.8 inches) and extended length of 631mm (24.8 inches).

What's Included

  • One front left BP-51 coilover with integrated coil spring
  • Spherical mount bearings
  • Mounting hardware

Designed, developed, tested, and manufactured entirely in-house by ARB's Old Man Emu engineering team in Australia. Backed by ARB's 3-year warranty. This coilover is part of the most advanced suspension system offered by Old Man Emu, providing the ultimate balance of on-road comfort and off-road capability.

Products specifications

Fits

2019-2023 Ford Ranger
