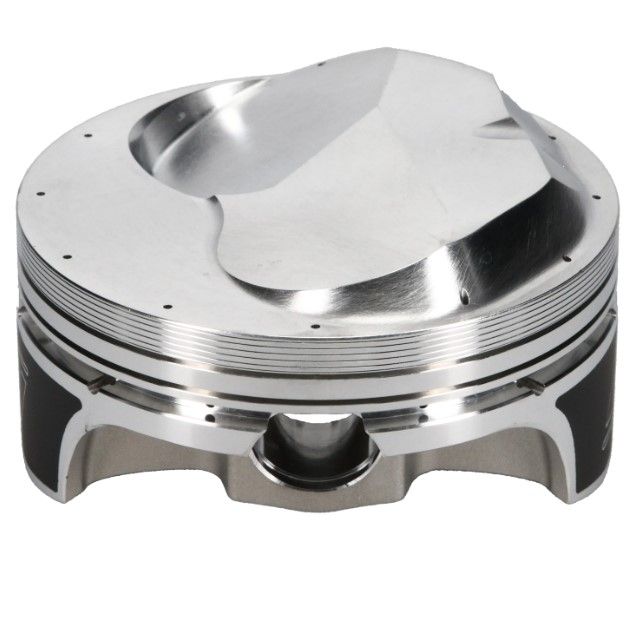

The Wiseco K0006B115 is a high-performance forged piston set engineered specifically for Big Block Chevy 572 and 632 cubic inch racing engines. These Professional Series pistons feature a semi-hollow dome design with a +42.0cc dome volume, delivering exceptional strength while maintaining an optimized strength-to-weight ratio for maximum performance.
Manufactured from premium 2618 aluminum alloy, these pistons are designed to withstand extreme temperatures and pressures encountered in high-performance and forced induction applications. Each piston features a 1.120-inch compression height and accommodates a 4.615-inch bore diameter, making them ideal for stroker builds with 4.500 or 4.750-inch strokes and rod lengths of 6.800 or 6.700 inches. The pistons utilize a .990-inch wrist pin and each piston has an advertised weight of 655 grams.
These forged pistons are engineered, forged, and machined in the USA at Wiseco's state-of-the-art facility in Mentor, Ohio using advanced CNC computer-controlled machining centers. The diamond-turned finish guarantees a perfect surface with no size variation, while the precise tolerances ensure optimal ring seal and reduced piston rock. Wiseco's forging process creates improved tensile strength compared to cast pistons, delivering superior durability and extended service life in demanding racing applications.
This complete set includes 8 pistons designed for 24-degree conventional cylinder heads, making them suitable for both naturally aspirated and forced induction Big Block Chevy builds. The dome configuration provides excellent compression characteristics for high-performance street and racing applications. Each piston is designed to work with cast iron, nickel ceramic plating (Nikasil), boron composite, and Electrofusion cylinder bores.
Specifications:
- Bore: 4.615 inches
- Compression Height: 1.120 inches
- Dome Volume: +42.0cc semi-hollow dome
- Wrist Pin Diameter: .990 inches
- Piston Weight: 655 grams (advertised)
- Compatible Strokes: 4.500 / 4.750 inches
- Compatible Rod Lengths: 6.800 / 6.700 inches
- Application: Big Block Chevy 572 & 632 engines
- Cylinder Head: 24-degree conventional head design
- Material: 2618 forged aluminum alloy
- Valve Pocket: Intake .320" / Exhaust +.120"
