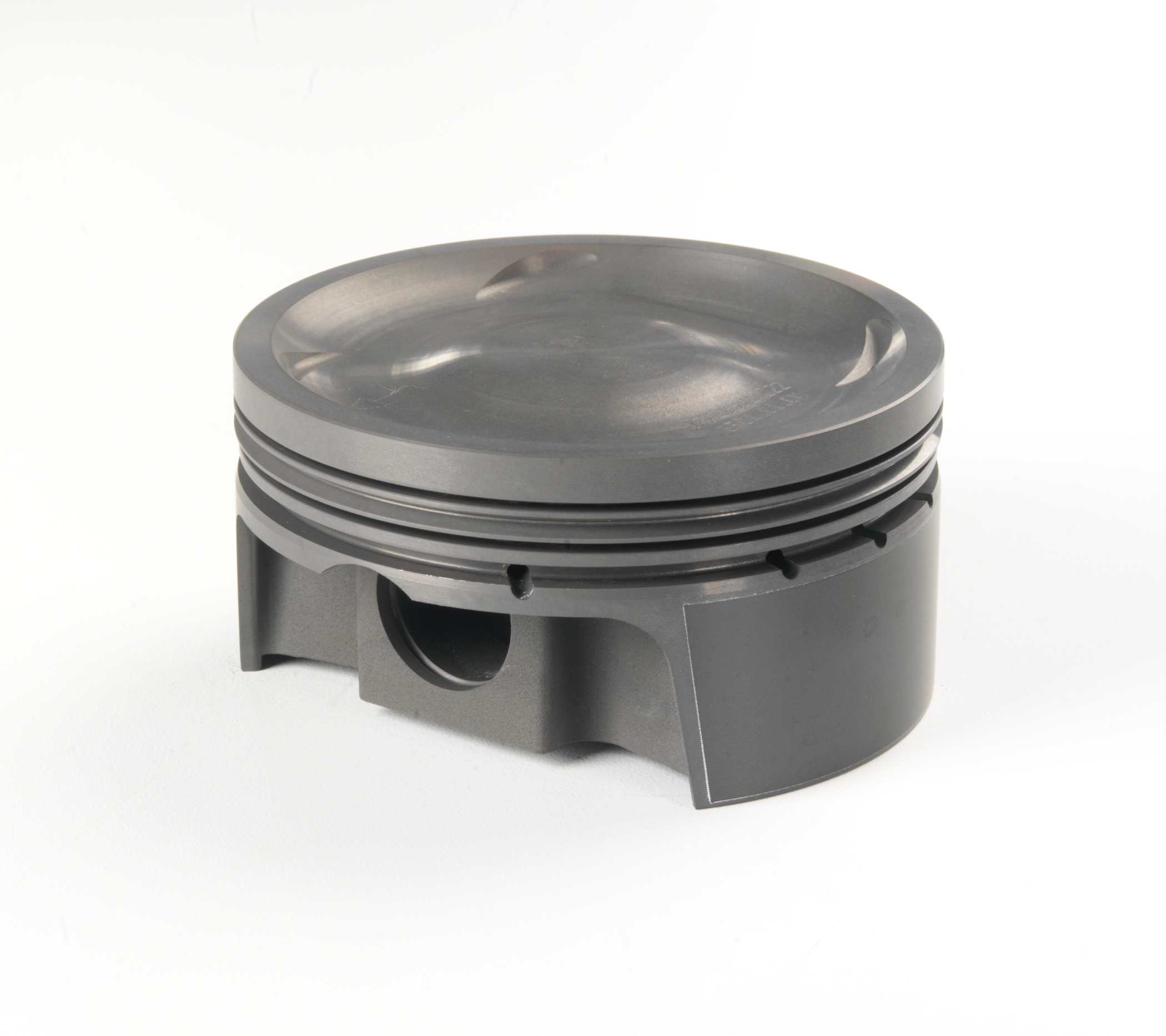

MAHLE 930285037-1 PowerPak Forged Piston 100mm 8.5:1 CR Subaru EJ25 EJ257 2.5L

Manufacturer

Part Number

930285037-1
Black Friday Price

$147.38

Estimated ship date Saturday, December 05

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The MAHLE 930285037-1 is a single forged performance piston from MAHLE's renowned PowerPak lineup, engineered for the Subaru EJ25/EJ257 2.5L flat-four engine. Built to race-proven standards, this piston delivers the strength, thermal stability, and precision tolerances demanded by high-performance and motorsport applications.

Forged from 4032 aluminum alloy, this piston offers excellent temperature stability and allows for tighter cylinder-to-wall clearances compared to cast alternatives. The alloy's low-expansion characteristics help maintain consistent fit and quiet operation across a wide range of operating temperatures.

Key Features:

  • 100.0mm bore diameter (+0.5mm over stock) for use with a bored and honed block
  • 8.5:1 compression ratio with a -19.3cc dish volume, ideal for forced induction builds
  • 30.7mm compression height (CH) for precise deck clearance setup
  • 23mm wrist pin diameter for strong, reliable pin retention
  • 79.0mm stroke and 130.5mm rod length compatibility specs
  • Lightweight design at approximately 405 grams per piston
  • Phosphate dry lubricant coating on pin bores and ring grooves to prevent micro-welding and galling during initial start-up and break-in
  • Grafal® anti-friction skirt coating reduces drag, scuffing, and cylinder bore wear while minimizing piston noise
  • Hand-deburred finish for consistency and quality control

This listing is for a single piston (ea). MAHLE part number 930285037 is also referenced without the -1 suffix in kit configurations. This piston is designed for use in performance engine rebuilds on the Subaru EJ257 (WRX STI) and compatible EJ255 / EJ25 applications including the Forester XT and Legacy GT platforms.

Products specifications

Pin Material

Steel

Clip Style

Round Wire

Prop 65

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Piston Ring Thickness

1.0mm, 1.0mm, 2.0mm

Piston Mass

405g

Pin Style

Floating

Piston Material

Forged, 4032
