EBC BBK005YEL-1 Apollo Balanced Big Brake Kit
The EBC BBK005YEL-1 Big Brake Kit features Apollo 4-piston calipers and 330mm floating discs in Luminous Yellow, delivering high-performance braking for performance road driving enthusiasts. This comprehensive front axle upgrade brings together precision-engineered components, offering a significant upgrade over standard braking systems.
Apollo 4-Piston Calipers with BC4101 Design
These lightweight yet strong aluminum brake calipers utilize a 2-piece bolted design, incorporating high-tensile 12.9 Grade steel bolts for stiff reinforcement of the caliper bridge section, resulting in a firmer and more responsive pedal feel. Apollo Series caliper bodies are machined from heat-treated low-pressure castings—a vastly more expensive production method that greatly improves the consistency of the finished part, giving these calipers a noticeable performance advantage over conventional gravity cast calipers.
The BC4101 calipers feature staggered piston diameters of 1.500 and 1.622 inches to eliminate uneven pad wear. Lightweight hard-anodized aluminum pistons with serrated piston noses reduce heat transfer into the braking hydraulics. All hardware is manufactured from stainless steel, ensuring these calipers never rust or corrode.
Premium Luminous Yellow Finish
EBC uses their revolutionary high-temperature PTFE polyester coating process, which unlike powdercoating that fades, is durable and fade-resistant, easy to wipe clean, and will look good for years to come. This advanced coating system is derived from cookware technology and resists cracking under extreme heat.
Two-Piece Floating Brake Discs
The 2-piece swept and grooved discs are made of copper-carbon enriched G3500 alloy and mounted on aerospace-grade anodized aluminum bells. With a 330mm diameter and disc thickness of 28mm at the outer edge and 26mm at the inner edge, these two-piece floating brake discs provide increased heat resistance, allowing for more consistent and powerful braking. The discs feature 48 directional curved vanes for exceptional heat dissipation.

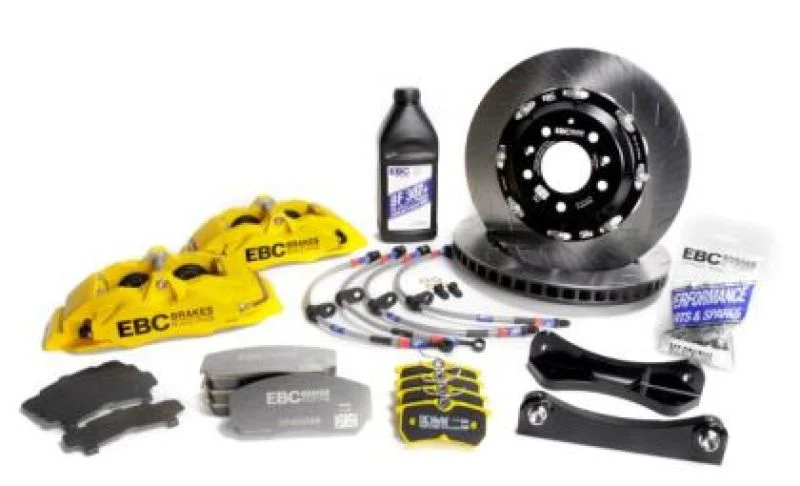

Complete Kit Includes
- Front Apollo 4-piston calipers (BC4101) in Luminous Yellow
- Two-piece 330mm swept and grooved floating brake discs
- EBC YellowStuff high-performance brake pads
- Braided stainless steel brake lines for the front
- Rear brake pads to fit original rear calipers (balanced kit)
- Braided brake lines for rear axle
- All necessary mounting hardware, brackets, bolts, washers, nuts, and spacers
Balanced Brake System Design
EBC's balanced big brake kits include brake pads and brake lines for the rear axle to fit the original rear brake caliper, achieving optimum brake balance which leads to increased brake system performance and shorter overall stopping distances.
Technical Specifications
- Caliper Type: Apollo 4-piston front
- Caliper Model: BC4101
- Color: Luminous Yellow
- Disc Diameter: 330mm (13 inches)
- Disc Type: 2-piece floating, swept and grooved
- Disc Thickness: 28mm outer / 26mm inner (approximately 1.102 inches)
- Disc Material: G3500 copper-carbon enriched cast iron
- Disc Mounting: Aerospace-grade anodized aluminum bells
- Piston Diameters: 38mm and 41mm (1.500 and 1.622 inches)
- Pad Shape: EBC DP002 or equivalent
- Pad Compound: EBC YellowStuff (fast road and track)
- Brake Lines: Braided stainless steel (front and rear)
- Configuration: Balanced front and rear system
Note: Professional installation recommended. Proper bedding-in procedure required for optimal performance. Check wheel clearance before installation—minimum 3.0mm clearance between caliper and wheel is mandatory.
