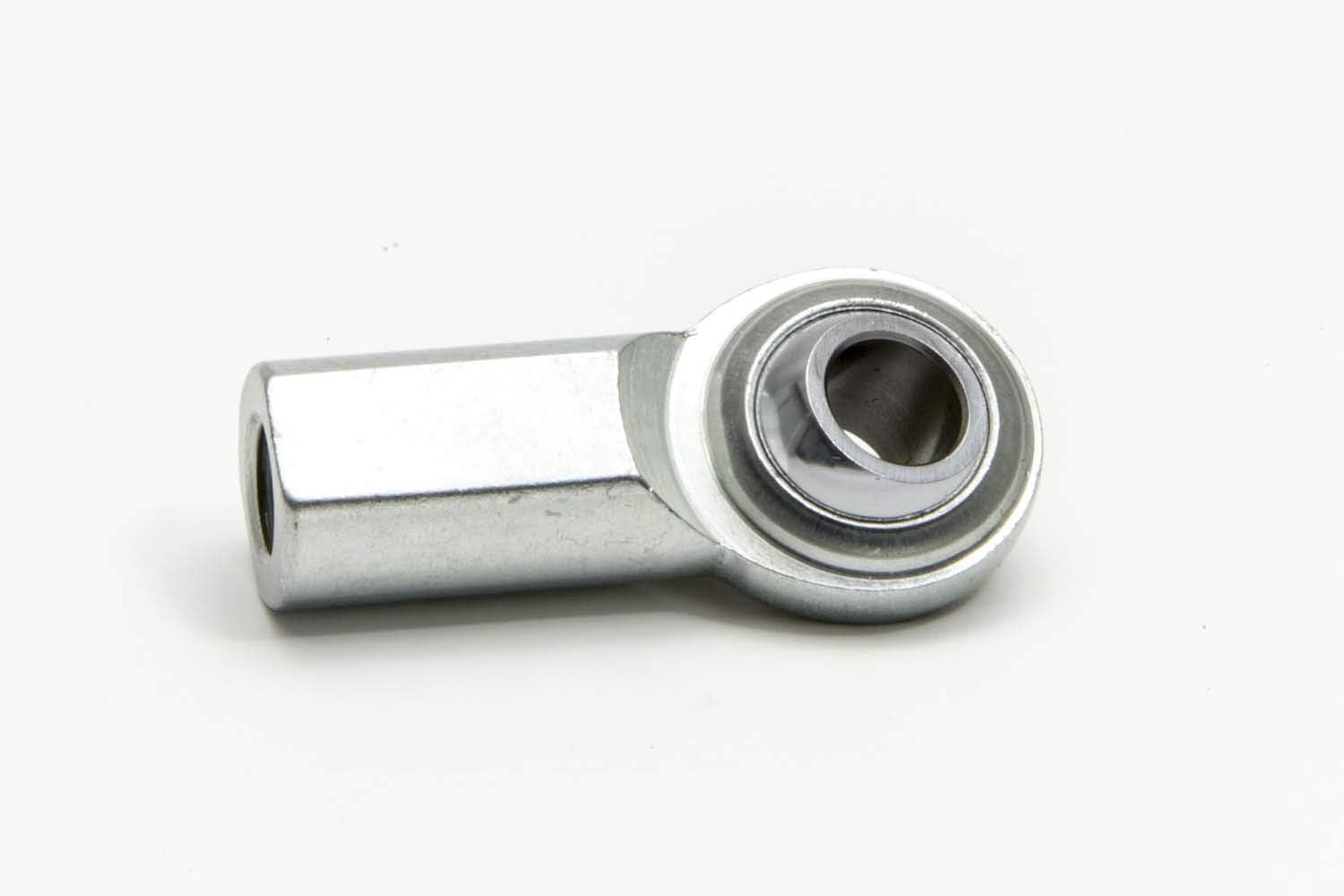

QA1 CFR6 C Series Carbon Steel Female Rod End 3/8 Inch Bore 3/8-24 RH Thread

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

CFR6
8 reviews
Sale Price

$5.29

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 CFR6 is a C Series carbon steel female rod end designed for economical light-duty applications. This 2-piece rod end features a traditional design with a heat-treated 52100 bearing steel ball that is hard chrome plated and precision ground, housed in a protective-coated carbon steel body for excellent corrosion resistance.

Key Specifications:

  • Bore Size: 3/8 inch (0.375 in)
  • Thread Size: 3/8-24 RH (right-hand female threads)
  • Thread Length: 0.812 inch
  • Head Diameter: 1.000 inch
  • Head Width: 0.500 inch
  • Centerline Length: 1.625 inch
  • Misalignment Angle: 22 degrees
  • Static Load Capacity: 6,323 lbs

Construction Features:

  • Ball: 52100 bearing steel, heat treated, hard chrome plated, precision ground
  • Body: Carbon steel with zinc plating for corrosion resistance
  • 2-piece construction (ball and body)
  • Metal-to-metal contact (non-lubricated)

This rod end is ideal for suspension linkages, steering components, throttle linkages, and general mechanical connections where durability and affordability are essential. The rod end is sold individually without grease fitting or jam nut. Optional grease fittings and stud configurations are available separately for custom applications.

Products specifications

A (+/-0.015)

1.625

Approx Bearing Weight

0.13

B (+0.0025/-0.0005)

0.375

Ball Dia Ref

0.719

C (+0.062/-0.031)

0.812

D Ref

1

E (+/-0.010)

0.687

F (+/-0.010)

0.562

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

22

Quantity

Sold individually.

Rod End Attachment

Female threads

Rod End Ball Width

0.500 in.

Rod End Centerline Length

1.625 in.

Rod End Construction

2-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.375 in.

Rod End Head Diameter

1.000 in.

Rod End Head Width

0.500 in.

Rod End Material

Carbon steel

Rod End Misalign Angle (degrees)

22 degrees

Rod End Static Load Capacity

6,323 lbs.

Rod End Style

Metal to metal

Rod End Thread Size

3/8-24 RH in.

Thread Length

0.812 in.

Thread Type

Right Hand

Thread UNF-2B

3/8 -24

UTL Radical Static

6323

W (+/-0.005)

0.5
