Wiseco Pistons K614M83 Pistons

Manufacturer

Wiseco Pistons

Picture for manufacturer Wiseco Pistons S626 Wrist Pin

Part Number

K614M83
7 reviews
04/25/2034 3:30 AM
Sale Price

$689.93

In Stock (5)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Select Your Vehicle:

Add To Cart

Check out with

PayPay

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

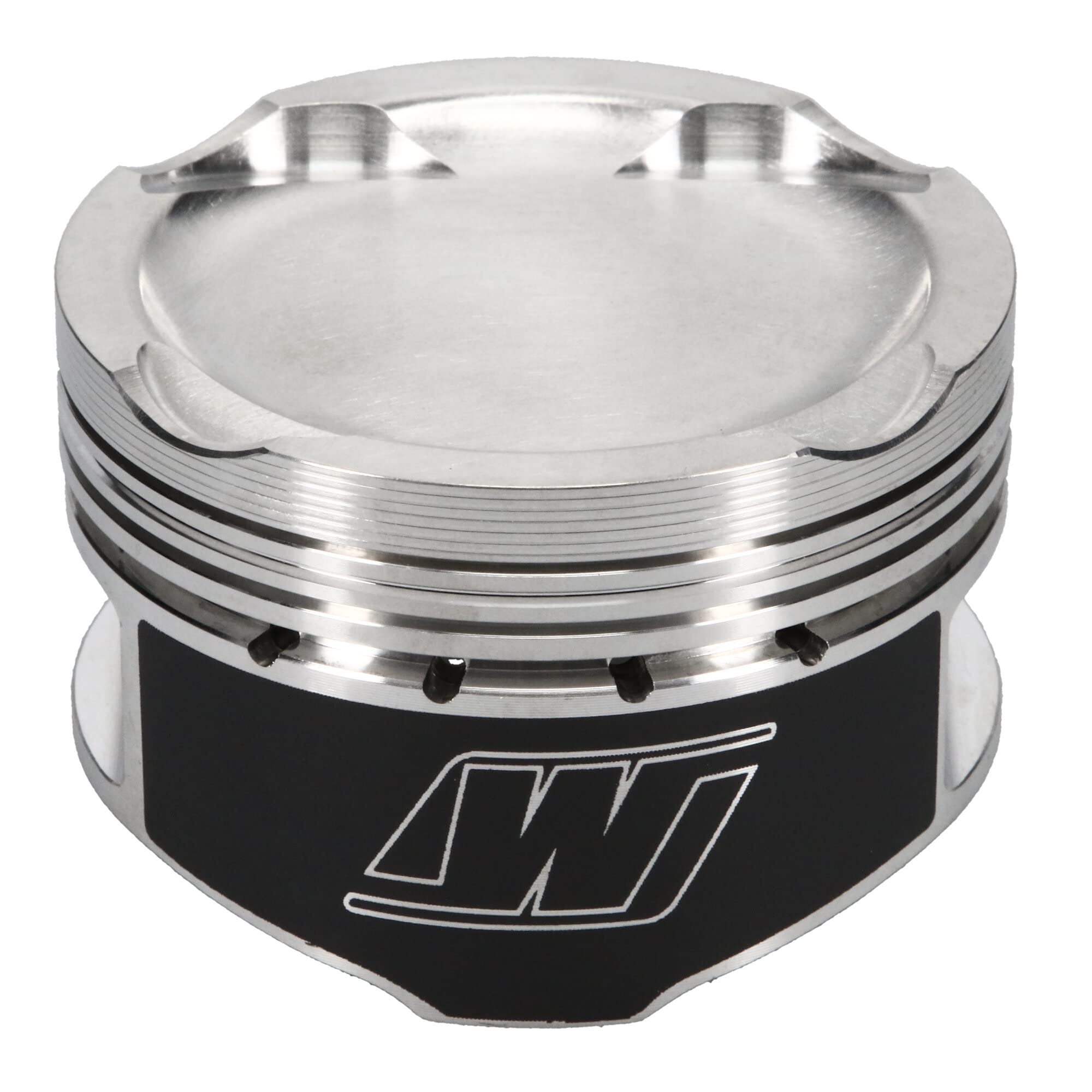

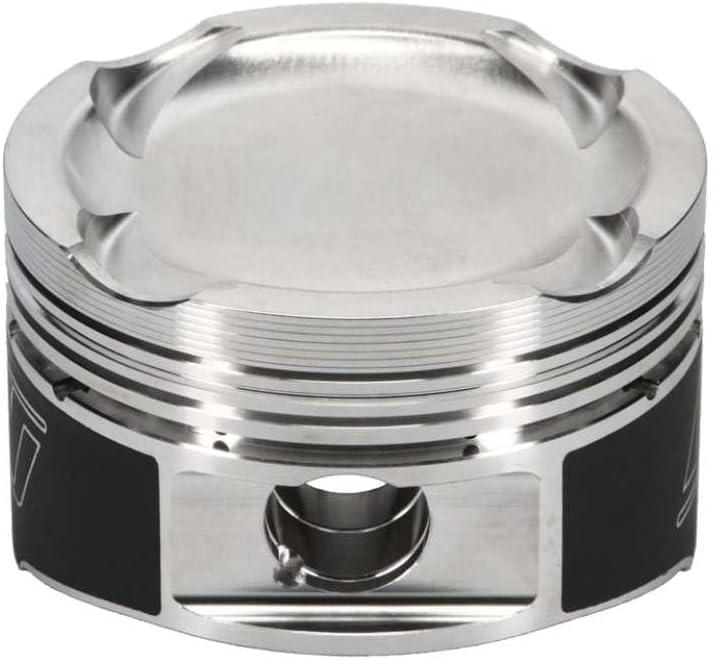

Wiseco Pistons K614M83 Pistons

Wiseco Pistons K614M83 Pro Tru Pistons
Sport Compact Series
Set of 4 Pistons
Recommended RingSet: 8300XX
Rings & Pins Included

World renowned for our work building race winning pistons, Wiseco utilizes experience from a diverse background of the most sophisticated sport compact engines.

Wiseco?s Sport Compact Pro Tru line creates the best value in forged pistons today. These American made pistons are forged and machined by skilled Ohio craftsmen with state-of-the-art forging presses and CNC machines. By using dedicated forgings specific to the final piston shape, Pro Tru pistons are stronger and lighter than industry standards.

Pro Tru sets include plasma moly 1/16, 1/16, 3/16 pre-gapped ring packages which provide excellent seal, friction reduction, and long life. Pro Tru pistons also come in a variety of volumes that allow the engine builder to choose the exact compression ratio required for their engine.

Products specifications

Bore

83mm

Bore (in)

3.268 in.

Bore (mm)

83.000mm

Comp Height

29.85

Comp Ratio

9.0:1

Compression Distance (in)

1.175 in.

Dome Volume

-16.5

File Fit

No

Gapless

No

Gram Weight

283

Oil Ring Material

Stainless steel

Oil Ring Tension

Standard

Oil Ring Thickness

2.8mm

Pin Diameter (in)

0.748 in.

Piston Head Volume (cc)

+16.50cc

Piston Material

Forged aluminum

Piston Style

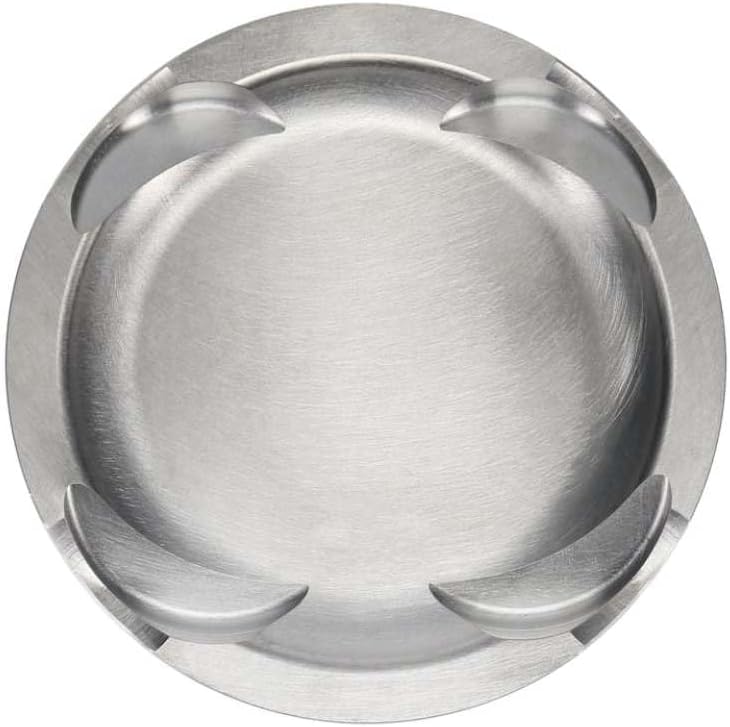

Dish, with four valve reliefs

Quantity

Sold as a kit.

Rod

135.25

Second Ring Facing Material

Phosphate coated

Second Ring Material

Cast iron

Second Ring Thickness

1.2mm

Stroke

92

Top Ring Facing Material

Gas nitrided

Top Ring Material

Steel

Top Ring Thickness

1.0mm

Wrist Pin Style

Press-fit or floating
