Wiseco Pistons 8000XX XX Type Replacement Ring Set

Manufacturer

Part Number

8000XX
Black Friday Price

$33.26

In Stock (10+)

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wiseco 8000XX XX Type Ring Set is a premium three-ring replacement piston ring assembly designed specifically for Wiseco pistons. This complete set delivers optimal compression, sealing, and durability for high-performance engine rebuilds.

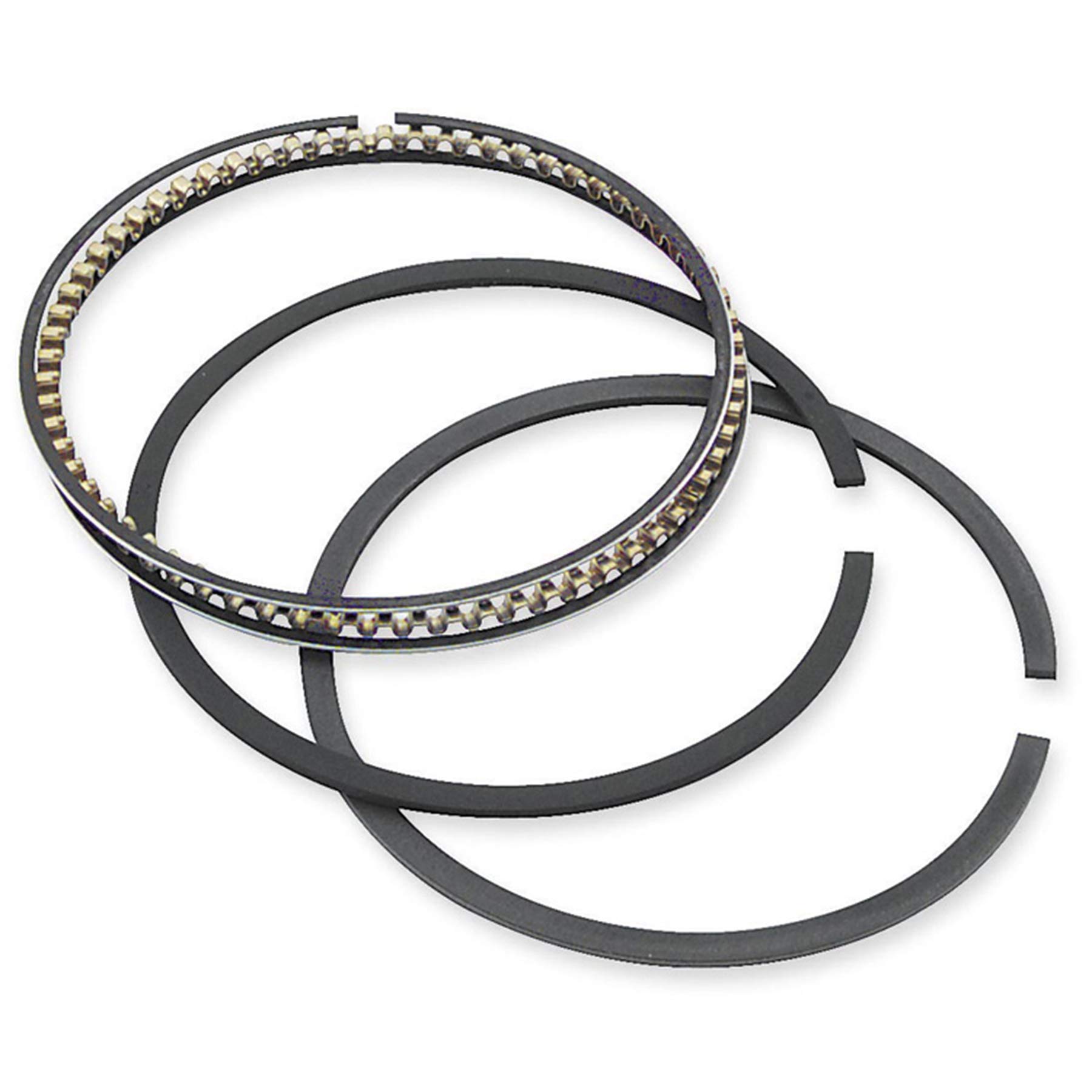

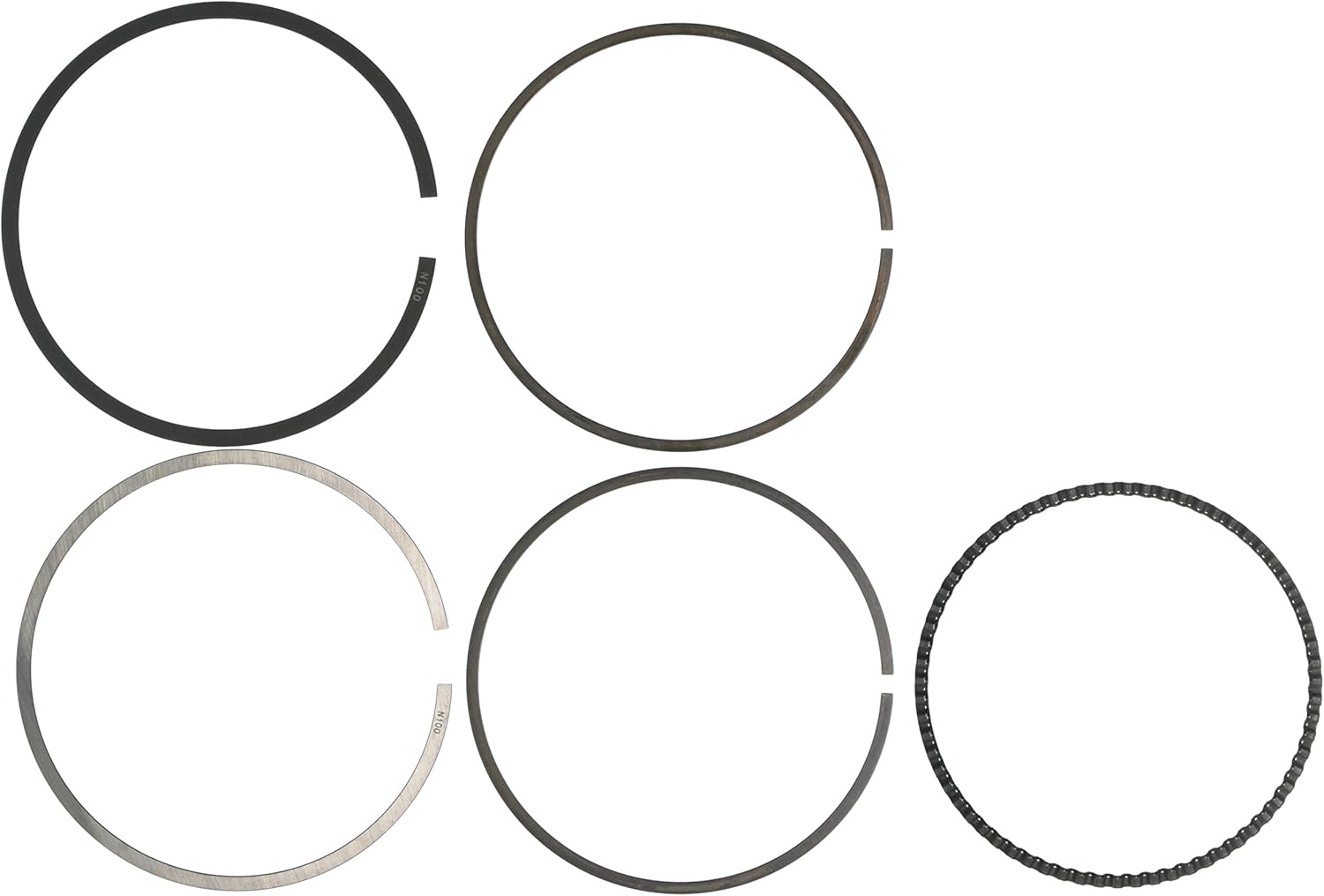

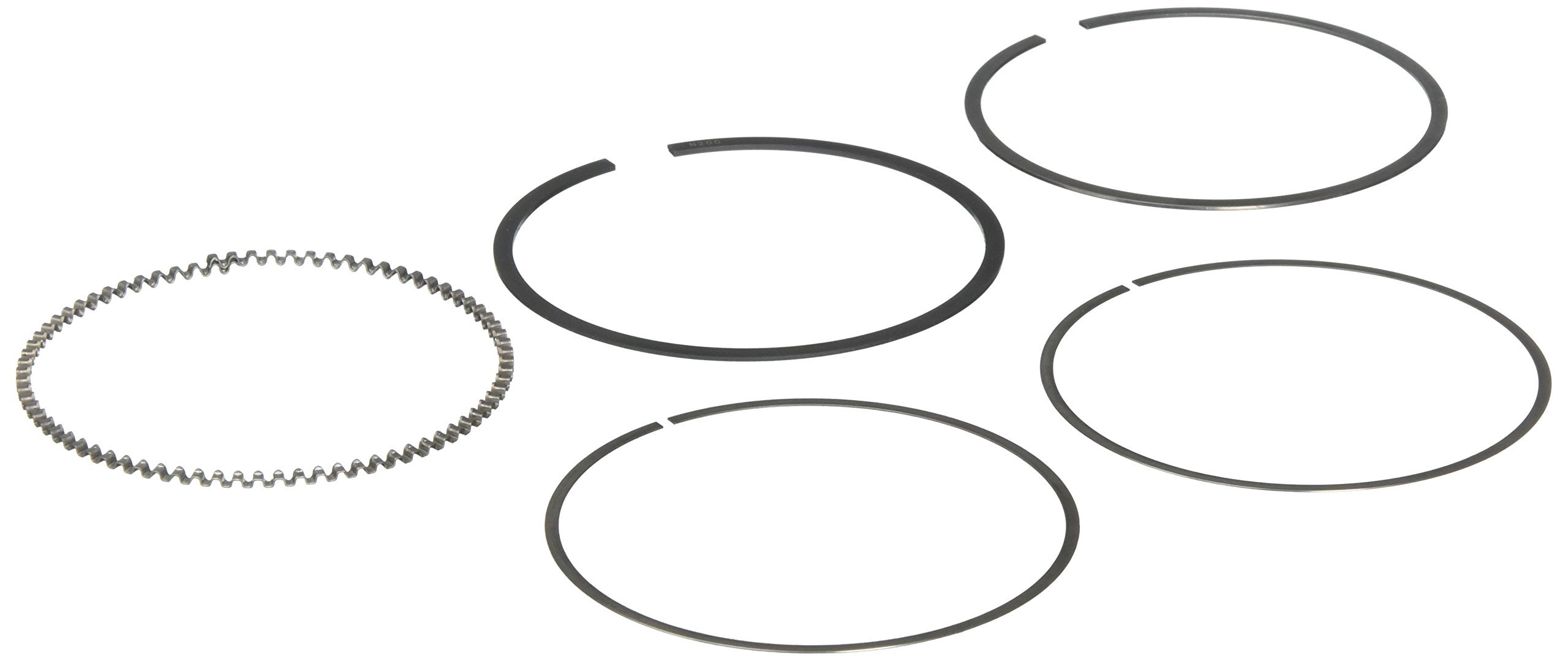

Complete Ring Set Includes:

  • Top Ring: Stainless steel with gas nitrided barrel-faced design for superior wear resistance and sealing
  • Compression Ring: Cast iron with phosphate coating and taper-faced under hook configuration for optimal cylinder wall contact
  • Oil Ring: 3-piece oil assembly featuring stainless steel flex-vent spacer with nitrided rails for precise oil control

Important Fitment Information: The ring type and bore size (in millimeters) are stamped on the dome of your Wiseco piston. Always refer to this stamped information when ordering replacement rings, as ring styles cannot be interchanged. Only Wiseco replacement ring sets are compatible with Wiseco pistons to ensure proper fit, performance, and warranty coverage.

Wiseco's XX Type ring sets are engineered to meet the demanding requirements of performance and racing applications, providing reliable sealing and long-term durability under extreme conditions.

Products specifications

2nd Ring

1.2mm Cast Iron / Napier Hook

Bore

80mm

Oil Ring

3/16 3-Piece Std Tension

Size

.039-.047-2.8mm

Top Ring

1mm Alloy Steel / Gas Nitrated

File Fit

No

Gapless

No

Second Ring Facing Material

Phosphate coated

Second Ring Material

Cast iron

Top Ring Facing Material

Gas nitrided

Top Ring Material

Stainless steel

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

80.00

Oil Ring Thickness

2.80

Third Ring Material

Stainless Steel

Industry

Automotive

Second Compression Ring Thickness

1.20

Top Compression Ring Thickness

1.00

Engine Type

ICE

Product Type

Engine Piston Ring Set

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

EBAY Category ID

33623

Title

Piston Ring Set - 80.00 mm Bore - 1.00 mm Top / 1.20 mm 2nd / 2.80 mm Oil

Title - Web

Piston Ring Set - 80.00 mm Bore - 1.00 mm Top / 1.20 mm 2nd / 2.80 mm Oil
