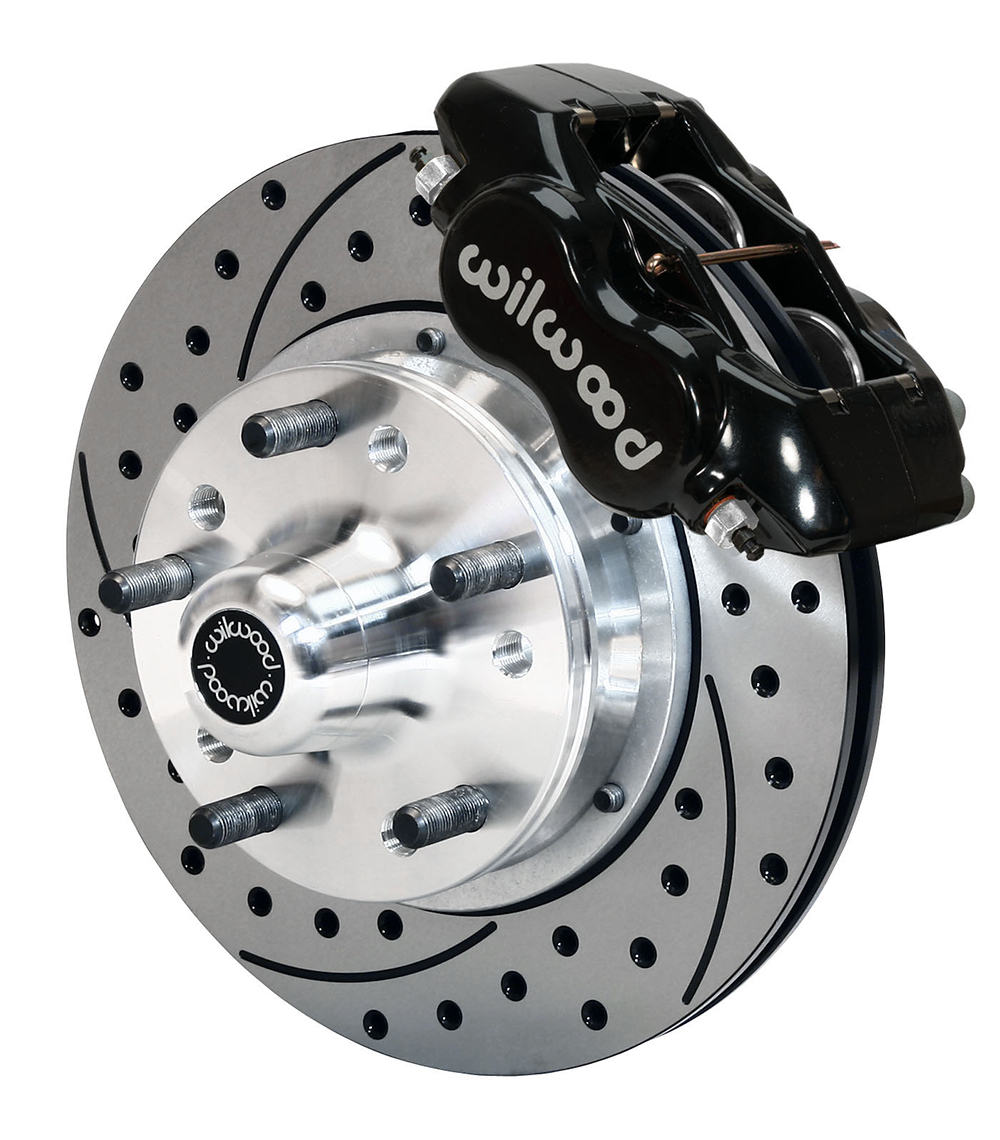

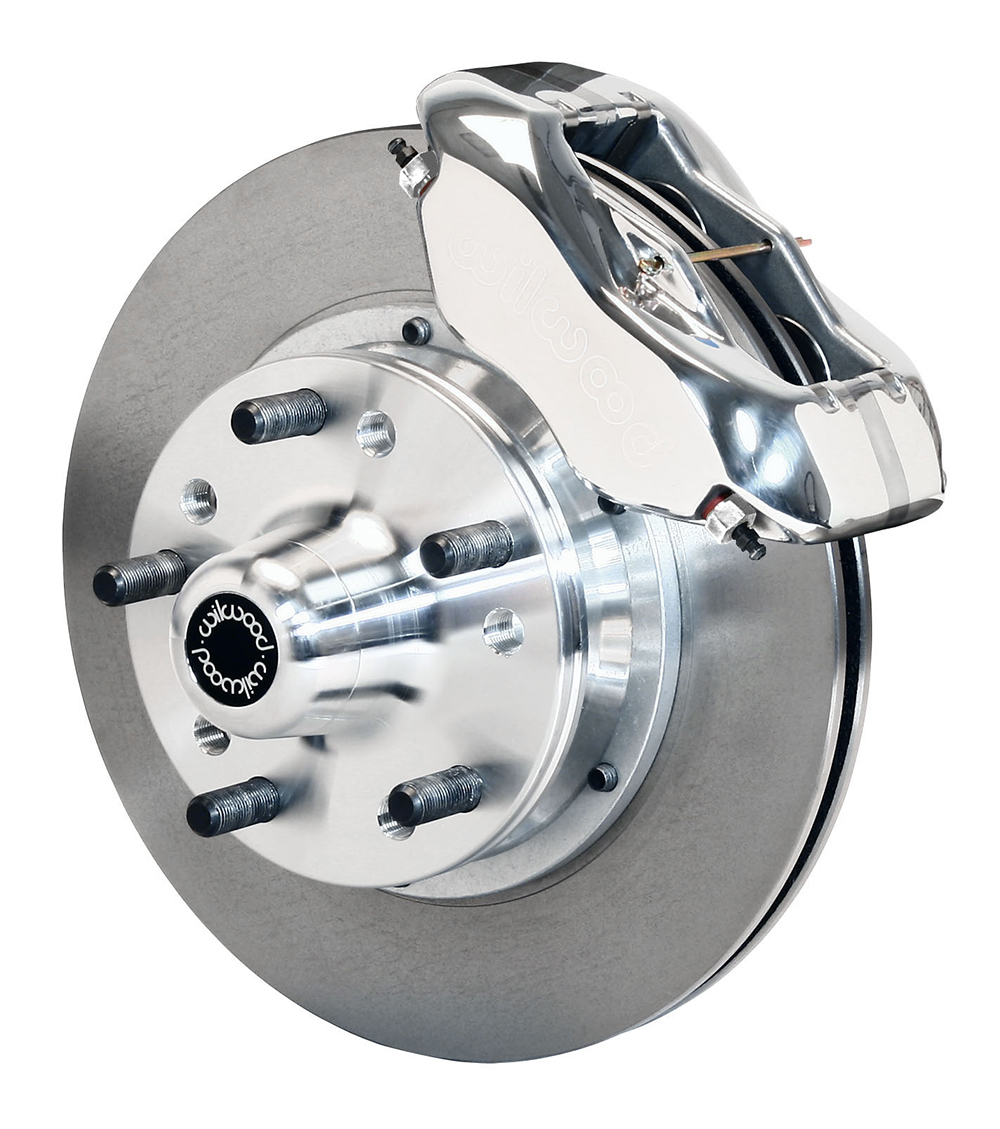

Wilwood 140-11013 FDL Pro-Series Front Disc Brake Kit 11.00"

The Wilwood 140-11013 FDL Pro-Series Front Hub Kit delivers a complete disc brake upgrade solution for traditional non-ABS spindle applications on American muscle cars, vintage hot rods, and heavy weight drag cars. Built around the proven forged billet Dynalite caliper design, this versatile kit suits the braking requirements and style preferences for daily drivers, serious competition vehicles, or discriminating show builds.

Key Features:

• Forged billet four-piston Dynalite calipers with black powder coated finish for enhanced corrosion resistance
• 11.00-inch diameter Ultralite HP 30-vane iron rotors with plain finish
• Wilwood BP-10 SmartPads featuring low noise and low dust formulation
• Lightweight anodized aluminum Pro Street hubs
• Dual bolt pattern: 5 on 4.5-inch and 4.75-inch
• 0.81-inch thick vented rotors with 1/2-inch diameter studs (1/2-20 thread pitch)

Most kits require no modifications for installation and provide plenty of clearance inside popular 15-inch wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders. These kits can also reduce front-end weight by as much as 35 pounds.

Complete kit includes rotors, hubs, bearings and seals, calipers, caliper brackets, pads, and mounting hardware. The caliper inlet fitting is 1/8-27 NPT.

Installation Note: If using steel wheels with this kit, steel shims (part 835-3007500) are required to prevent steel wheels from galling the aluminum hub.
