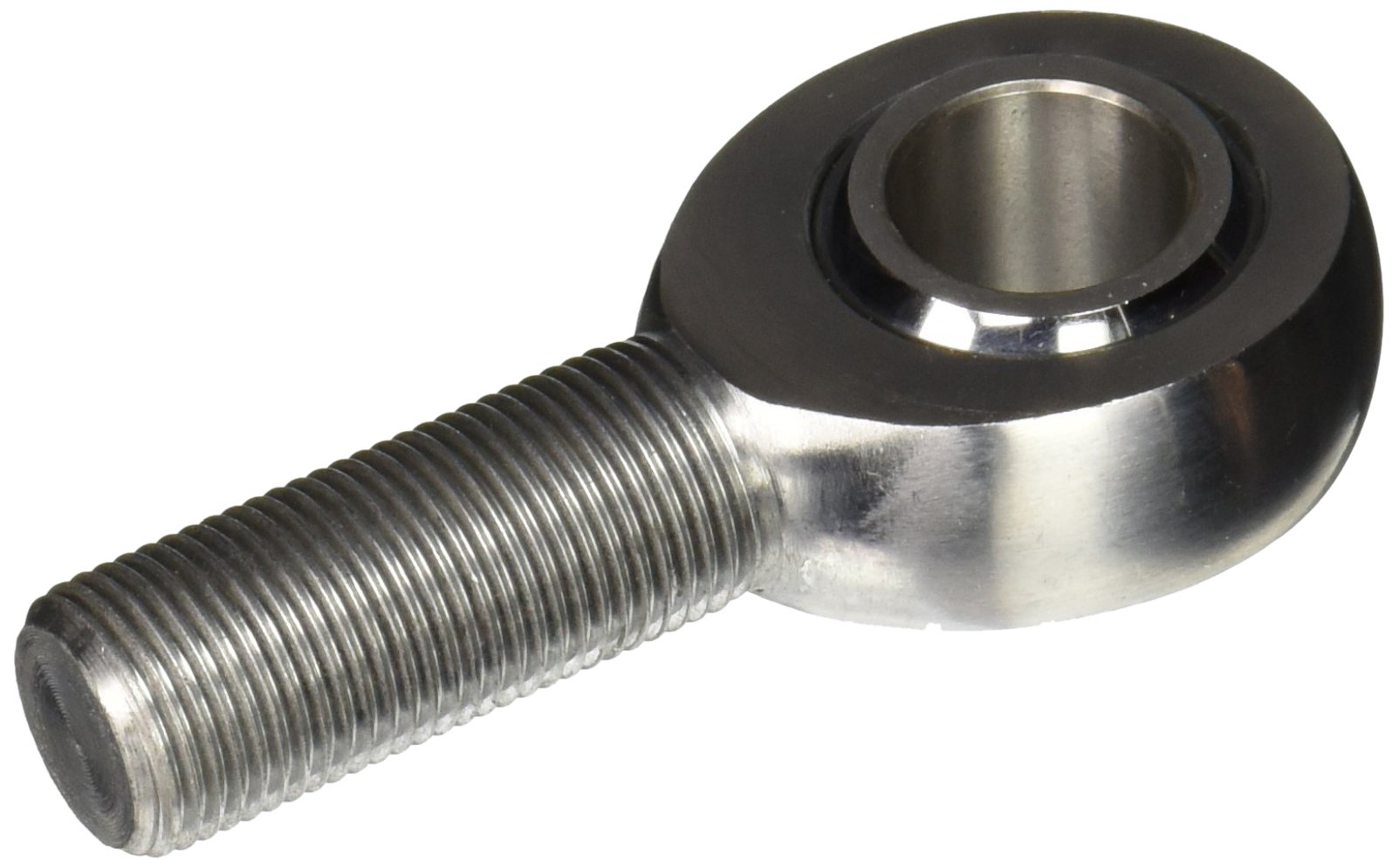

QA1 XMR12S X Series Alloy Rod End 3/4in. Bore 3/4in.-16 RH Male Thread PTFE Lined Stud

Manufacturer

Part Number

XMR12S
Black Friday Price

$38.11

$40.54 Save 6%

Estimated ship date Wednesday, December 02

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 XMR12S is an X Series (XM Endura) alloy loader-slot rod end featuring a 3/4 in. (0.750 in.) bore, 3/4 in.-16 right-hand male thread, and a pre-attached stud for easy installation and greater misalignment clearance compared to standard bolt-mounted applications. Sold individually, this rod end is engineered for demanding performance and chassis applications where strength, durability, and contamination resistance are critical.

Key Features:

  • PTFE-Lined Race: Reinforced Nylon 12 injection-molded race with self-lubricating PTFE keeps dirt and debris out while eliminating the need for periodic greasing
  • Metal-to-Metal Support: Unique design provides rigid metal-to-metal contact under heavy shock loads while allowing smooth, low-friction movement under light loads
  • 52100 Bearing Steel Ball: Heat-treated, precision ground, and hard chrome plated for maximum hardness and wear resistance
  • Heat-Treated Alloy/Chromoly Steel Body: Protective coating applied for corrosion resistance in harsh environments
  • Increased Cross-Sectional Thickness: Engineered for greater tensile strength compared to standard rod ends
  • Loader Slot Design: Unique head geometry delivers ultra-high strength and performance in a compact package
  • Pre-Attached Stud: Right-hand threaded stud included for simplified installation and increased misalignment range
  • Right-Hand Thread: 3/4 in.-16 RH male thread configuration
  • Bore Size: 0.7500 in.
  • Sold individually; no grease fitting or jam nut included

The QA1 XMR12S X Series rod end delivers excellent overall value and is an ideal choice for performance suspension, steering linkage, 4-link bars, ladder bars, and other high-load chassis applications where a studded, self-lubricating heim joint is required.

Products specifications

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Notes

Features 3/4-16 RH in. male threaded stud built into the rod end head.

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

0.875 in.

Rod End Centerline Length

2.875 in.

Rod End Construction

2-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.750 in.

Rod End Head Diameter

1.750 in.

Rod End Head Width

0.875 in.

Rod End Material

Chromoly

Rod End Misalign Angle (degrees)

14 degrees

Rod End Static Load Capacity

28,081 lbs.

Rod End Style

PTFE/KEVLAR® lined

Rod End Thread Size

3/4-16 RH in.

Size

3/4-3/4

Thread

Right Hand

Thread Length

1.750 in.
