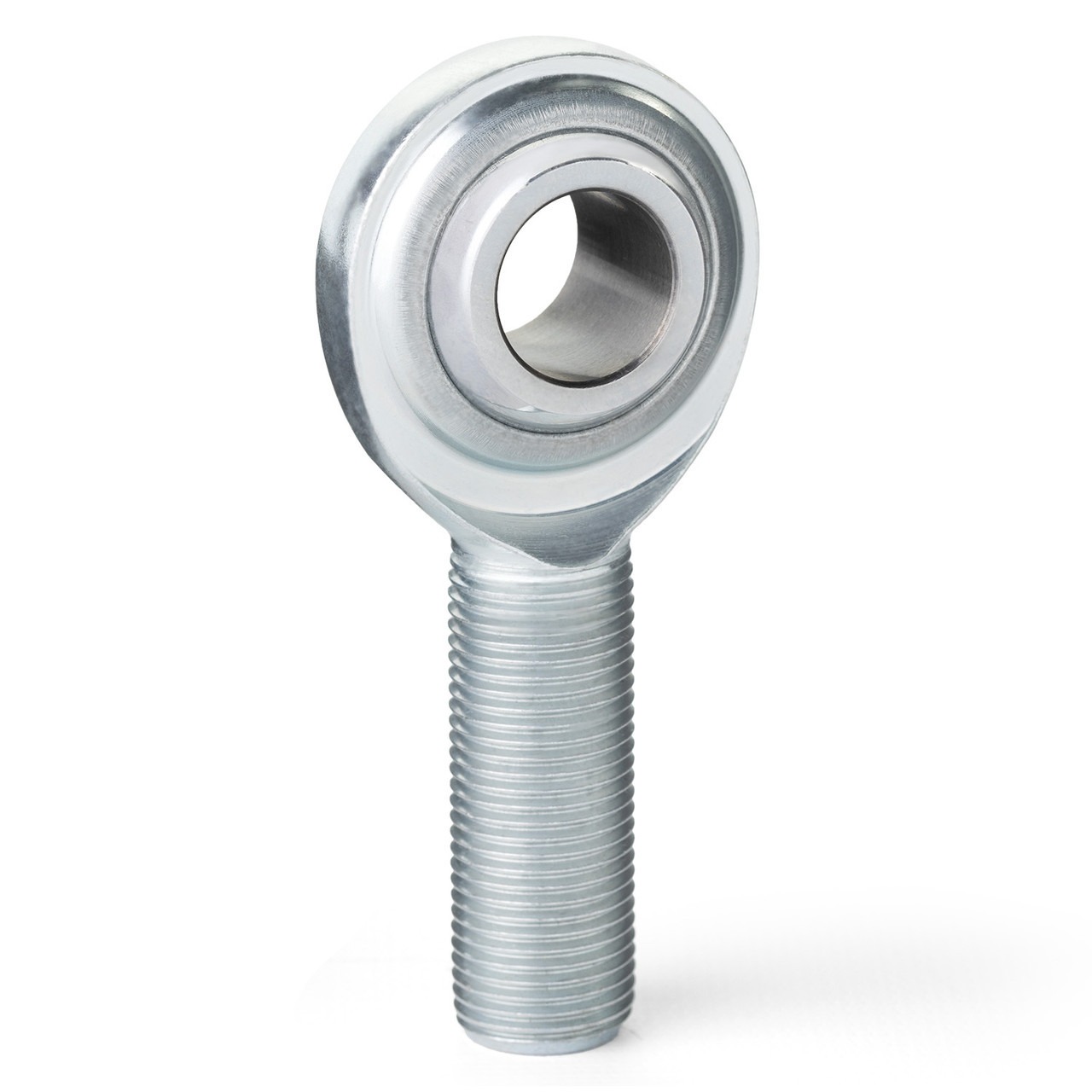

QA1 CML7-8 C Series 2-Piece Carbon Steel Rod End 7/16in. Bore 1/2in.-20 LH Male Thread

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

CML7-8
5 reviews
Sale Price

$6.96

Estimated ship date Saturday, November 21

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 CML7-8 is a C Series two-piece carbon steel male rod end featuring a 7/16 in. (0.4375 in.) bore and 1/2 in.-20 left-hand male threads. Designed for demanding automotive, motorsports, and commercial suspension applications, this rod end delivers reliable performance with a traditional metal-to-metal construction.

Key Features:

  • Ball: 52100 bearing steel, heat treated, hard chrome plated, and precision ground for consistent fit and long service life
  • Body: Carbon steel with a protective coating for corrosion resistance
  • Thread Type: Left-hand (LH) 1/2 in.-20 male thread — ideal for use in systems requiring opposite-hand threading
  • Bore Size: 7/16 in. (0.4375 in.) inner diameter
  • Two-Piece Construction: Traditional metal-to-metal design offering strength and durability
  • Available Options: Grease fittings and stud configurations available; contact QA1 for details
  • ISO 9001 Certified: Manufactured under QA1's certified quality management system

The CML7-8 is sold individually and is part of QA1's extensive CM Carbon Steel Series, available in hundreds of size, thread, and head configurations. Note: Published load ratings apply only to rod ends without grease fittings.

Products specifications

A (+/-0.015)

2.437

Approx Bearing Weight

0.22

B (+0.0025/-0.0005)

0.4375

Ball Dia Ref

0.812

C (+0.062/-0.031)

1.5

D Ref

1.312

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

21

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

0.562 in.

Rod End Centerline Length

2.438 in.

Rod End Construction

2-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.438 in.

Rod End Head Diameter

1.312 in.

Rod End Head Width

0.562 in.

Rod End Material

Carbon steel

Rod End Misalign Angle (degrees)

21 degrees

Rod End Static Load Capacity

11,191 lbs.

Rod End Style

Metal to metal

Rod End Thread Size

1/2-20 LH in.

Thread Length

1.500 in.

Thread Type

Left Hand

Thread UNF-3A

1/2 -20

UTL Radical Static

11191

W (+/-0.005)

0.56
