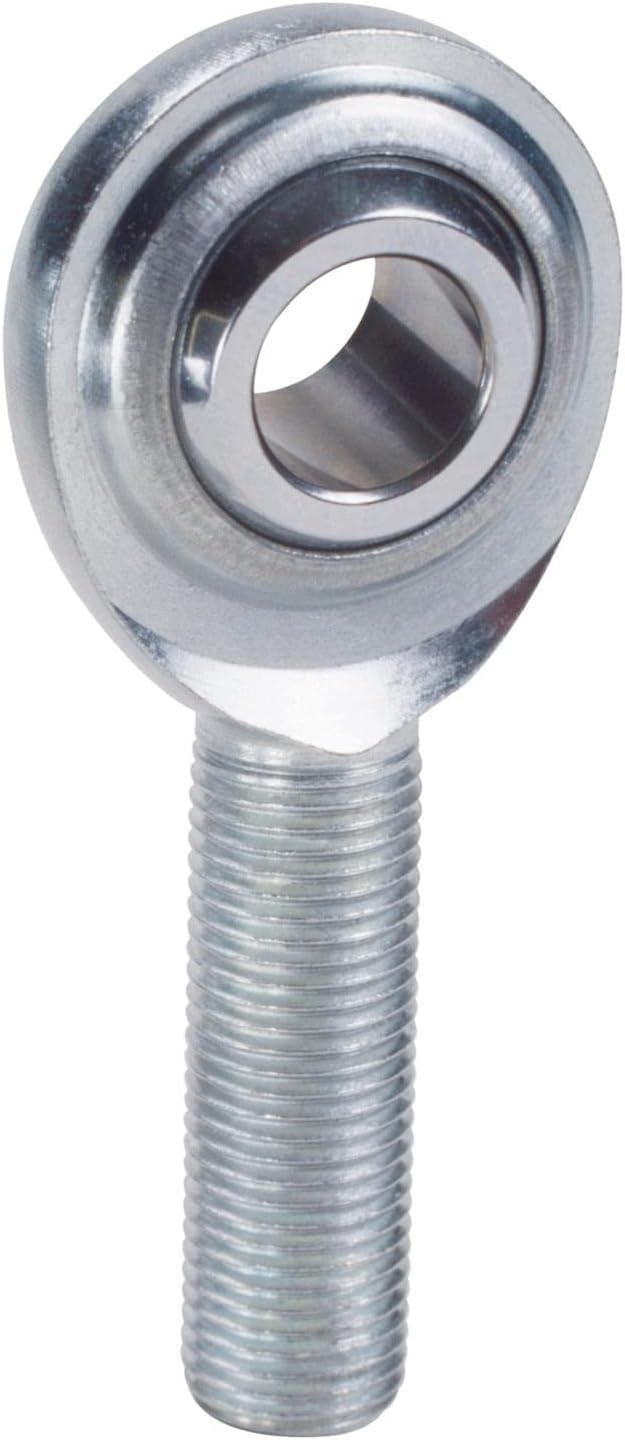

QA1 CMR6T Carbon Steel Male Rod End with PTFE Liner

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

CMR6T
9 reviews
Sale Price

$8.04

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 CMR6T is a two-piece economy style male rod end from the CF-T Carbon Steel Series, featuring a self-lubricating PTFE liner for maintenance-free operation. This mohawk-design rod end consists of just two components—a precision-ground ball and a protective-coated body—making it an economical choice for light to medium-duty applications.

Ball Specifications:

  • 52100 bearing steel construction for durability
  • Heat treated for enhanced strength
  • Hard chrome plated for wear resistance
  • Precision ground for smooth articulation

Body Specifications:

  • Carbon steel construction
  • Protective coating for corrosion resistance
  • PTFE liner for self-lubrication and reduced friction

Design Features:

  • Two-piece swaged design keeps manufacturing costs low
  • Available in inch dimensions with left and right-hand threads
  • Self-lubricating PTFE liner eliminates need for regular greasing
  • Suitable for suspension linkages, steering components, and chassis applications

The CMR6T's simple, economical design makes it ideal for race cars, off-road vehicles, custom fabrication projects, and other applications where a reliable, low-maintenance rod end is needed. Custom stud configurations are available by contacting QA1 directly.

Products specifications

A (+/-0.015)

1.938

Approx Bearing Weight

0.11

B (+0.0025/-0.0005)

0.375

Ball Dia Ref

0.719

C (+0.062/-0.031)

1.25

D Ref

1

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

22

Notes

Only rod end ball is heat treated.

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

0.500 in.

Rod End Centerline Length

1.938 in.

Rod End Construction

2-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.375 in.

Rod End Head Diameter

1.000 in.

Rod End Head Width

0.500 in.

Rod End Material

Carbon steel

Rod End Misalign Angle (degrees)

22 degrees

Rod End Static Load Capacity

6,323 lbs.

Rod End Static Load Capacity (lbs)

4,552 lbs.

Rod End Style

Teflon® lined

Rod End Thread Size

3/8-24 RH in.

Thread Length

1.250 in.

Thread Type

Right Hand

Thread UNF-3A

3/8 -24

UTL Radical Static

4552

W (+/-0.005)

0.5

Title

QA1 Suspension Rod End Bearing CMR6T
