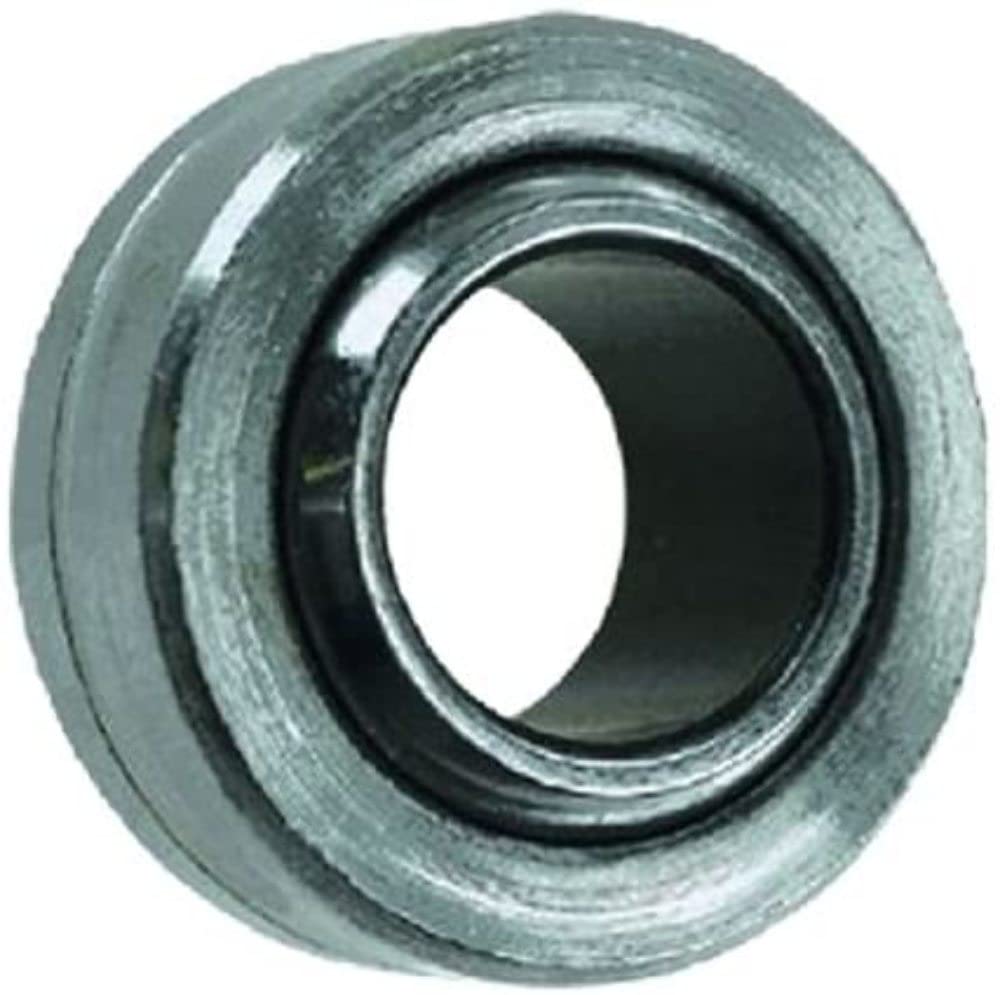

QA1 AIB12 AIB Series Spherical Bearing 3/4 in. Bore Chromoly Steel

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

AIB12
6 reviews
Sale Price

$18.46

Estimated ship date Sunday, November 22

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 AIB12 is a commercial-grade AIB Series spherical bearing featuring a 3/4-inch inner bore diameter. Built from alloy/chromoly steel, this bearing delivers superior wear resistance compared to traditional carbon steel alternatives, making it a dependable choice for demanding suspension and rod end applications.

The bearing ball is manufactured from 52100 bearing steel — heat treated, precision ground, and hard chrome plated for smooth operation and long service life. The alloy/chromoly steel race is also heat treated and features a protective coating for corrosion resistance, with an oil coating applied at the factory. The AIB Series offers dimensions that differ from the standard COM Series, providing flexibility for a wider range of chassis and suspension builds.

Key Features:

  • Inner Ball Diameter: 0.75 in. (19.05 mm)
  • Inner Ball Width: 0.875 in. (22.225 mm)
  • Race Width: 0.687 in. (17.4 mm)
  • Receiver Race Diameter: 1.5 in. (38.1 mm)
  • Rod End Ball Diameter: 1.312 in. (33.3 mm)
  • Misalignment Angle: 10 degrees
  • Chamfer Reference: 0.030 in.
  • Ball Material: 52100 Bearing Steel — Heat Treated, Precision Ground, Hard Chrome Plated
  • Race Material: Alloy/Chromoly Steel — Heat Treated, Protective Coated for Corrosion Resistance
  • Sold individually

For applications requiring a self-lubricating option, the AIB12T variant includes a PTFE liner. QA1's AIB Series bearings are a proven upgrade for performance suspension builds where wear life and dimensional precision matter.

Products specifications

Approx Bearing Weight

0.25

B (+0.0015/-0.005)

0.75

Ball Dia Ref

1.312

Chamfer Reference

0.030 in.

D (+0.0000/-0.0007)

1.5

Inner Ball Diameter (in.)

0.7500 in.

Inner Ball Width (in.)

0.875 in.

M Cham Ref

0.03

Misalign Angle

10

Notes

Alloy steel.

O Flat Dia Ref

0.978

Quantity

Sold individually.

Race Width (in.)

0.687 in.

Receiver Race Diameter (in.)

1.5000 in.

Rod End Ball Diameter (in.)

1.312 in.

Rod End Bearing Material

Steel

Rod End Misalign Angle (degrees)

10 degrees

T (+/-0.005)

0.687

ULT. Static Radial Load (lbs.)

48,672 lbs.

UTL Radical Static

48672

W (+0.000/-0.005)

0.875

Title

QA1 Suspension Bearing AIB12
