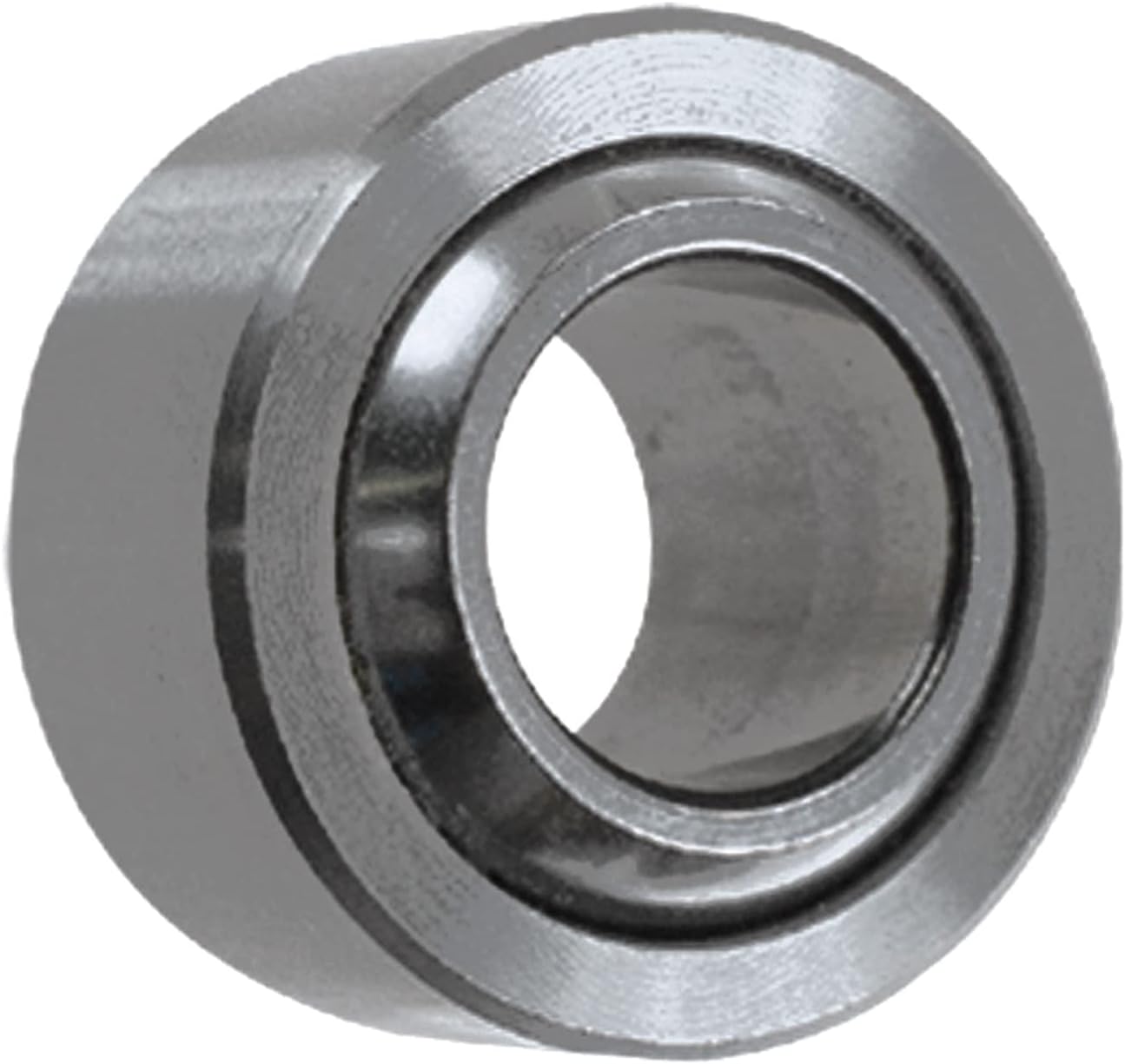

QA1 Precision Products NPB16T Narrow Spherical Bearing 1 Inch Bore Stainless Steel PTFE Lined

Manufacturer

Part Number

NPB16T
Sale Price

$43.79

In Stock (10+)

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 NPB16T is a precision-engineered narrow spherical bearing designed for demanding suspension and linkage applications in automotive, racing, and industrial environments. This bearing features a 1-inch bore diameter with a 1.75-inch outside diameter and 0.797-inch outer ring width, making it ideal for applications requiring compact design without sacrificing strength.

Key Features:

  • 440C stainless steel ball that has been heat treated, hard chrome plated and precision ground for maximum durability
  • Stainless steel construction with PTFE liner and tighter tolerances than traditional spherical bearings
  • Self-lubricating PTFE liner with heat treated stainless steel race for maintenance-free operation
  • 1.5-inch ball diameter with chrome plated finish
  • Open closure design for maximum articulation
  • Narrow profile design optimizes space in tight installations

Technical Specifications:

  • Bore Diameter: 1.000 inch
  • Outside Diameter: 1.750 inches
  • Outer Ring Width: 0.797 inch
  • Inner Ring Width: 1.000 inch
  • Ball Material: 440C Stainless Steel
  • Liner Material: PTFE (Teflon)
  • Outer Ring Material: Stainless Steel

The NPB16T is part of QA1's NPB (Narrow Plain Bearing) series, engineered for applications where precise articulation and compact dimensions are critical. The self-lubricating PTFE liner eliminates the need for regular maintenance while providing smooth operation under load. This bearing is commonly used in control arms, suspension links, steering components, and custom linkage assemblies where reliability and precision are paramount.

Products specifications

Approx Bearing Weight

0.39

B (+0.0000/-0.0005)

1

Ball Dia Ref

1.5

Chamfer Reference

0.044 in.

D (+0.0000/-0.0005)

1.75

Inner Ball Diameter (in.)

1.0000 in.

Inner Ball Width (in.)

1.000 in.

M Cham Ref

0.035

Misalign Angle

9

No Load Breakaway

3-12

O Flat Dia Ref

1.118

Quantity

Sold individually.

Race Width (in.)

0.797 in.

Receiver Race Diameter (in.)

0.7500 in.

Rod End Ball Diameter (in.)

1.500 in.

Rod End Bearing Material

Stainless steel

Rod End Misalign Angle (degrees)

9 degrees

T (+/-0.005)

0.797

ULT. Static Radial Load (lbs.)

82,200 lbs.

UTL Axial Push

12160

UTL Radical Static

82200

W (+0.000/-0.002)

1

Title

QA1 Suspension Bearing NPB16T
