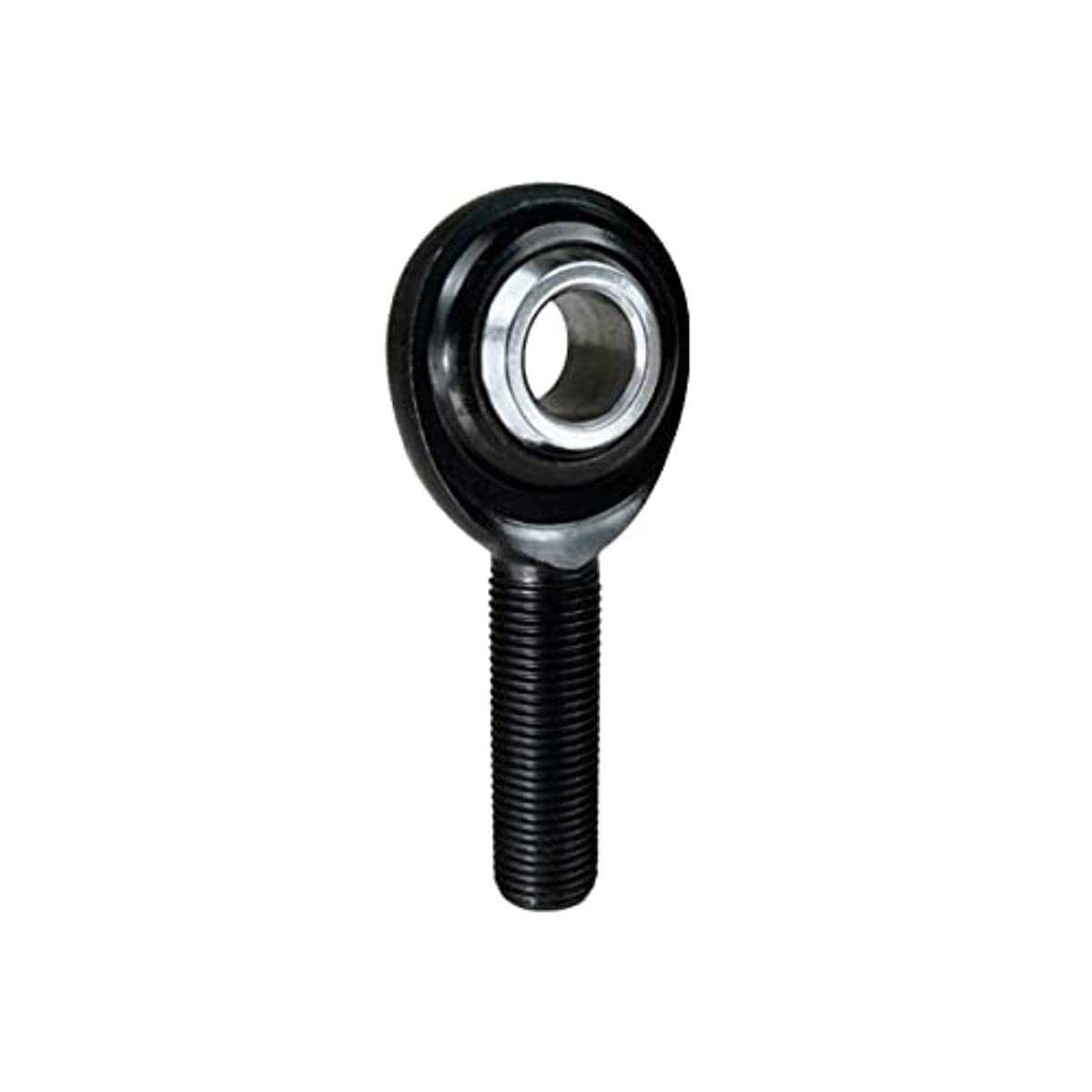

QA1 PCMR8S PC Series 2-Piece Alloy Rod End 1/2 in. Bore 1/2-20 RH Male Stud

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

PCMR8S
6 reviews
Sale Price

$11.08

Estimated ship date Saturday, November 21

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 PCMR8S is a PC Series 2-piece alloy/chromoly steel male rod end in a stud configuration, featuring a 1/2 in. bore and 1/2-20 right-hand male thread. Engineered for high-load steering and suspension applications, this rod end delivers superior performance over standard carbon steel alternatives.

Key Features:

  • Construction: 2-piece alloy/chromoly steel body, heat treated and black oxide coated for corrosion resistance
  • Ball Material: 52100 bearing steel — heat treated, precision ground, and hard chrome plated for long-lasting wear resistance
  • Contact Style: Metal-to-metal for maximum load-carrying capacity
  • Configuration: Stud-type mounting for easy installation in steering and suspension linkages
  • Bore Size: 0.5000 in. (1/2 in.)
  • Thread Size: 1/2-20 right-hand male
  • Misalignment Angle: Up to 20°
  • Finish: Black oxide coated body with hard chrome plated ball

The PCMR8S is sold individually and is an excellent choice for performance steering linkages, custom suspension builds, and race car applications where precision and durability are critical. The stud configuration simplifies installation in applications where a traditional threaded shank is not ideal.

Products specifications

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Notes

Features 1/2-20 RH in. male threaded stud built into the rod end head.

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

0.625 in.

Rod End Centerline Length

2.438 in.

Rod End Construction

2-piece

Rod End Finish

Black oxide

Rod End Head Bore Size

0.500 in.

Rod End Head Diameter

1.312 in.

Rod End Head Width

0.625 in.

Rod End Material

Chromoly

Rod End Misalign Angle (degrees)

20 degrees

Rod End Static Load Capacity

17,000 lbs.

Rod End Style

Metal to metal

Rod End Thread Size

1/2-20 RH in.

Size

1/2-1/2

Thread

Right Hand

Thread Length

1.500 in.
