RADIUM Engineering 20-0768 Fuel Rail for Toyota 1JZ-GTE VVT-i Engine

The RADIUM Engineering 20-0768 is a high-performance aftermarket fuel rail designed specifically for the Toyota 1JZ-GTE VVT-i engine. This precision-engineered component provides superior fuel delivery capabilities for enthusiasts seeking reliable performance upgrades.

Construction and Design:

• CNC machined from 6063 billet aluminum for exceptional strength and lightweight performance
• Black anodized finish with laser etching for corrosion resistance and professional appearance
• Large 0.69-inch internal bore supports high-horsepower applications and ensures adequate fuel flow
• Lightweight billet aluminum mounting feet with stainless steel hardware included

Port Configuration and Compatibility:

• Three 8AN ORB (O-Ring Boss) ports for flexible fuel line and accessory connections
• Compatible with all fuel types including gasoline, race fuel, and E85 alcohol blends
• 11mm injector bores accommodate OEM 1JZ-GTE VVT-i top-feed fuel injectors and aftermarket equivalents
• Works with factory fuel injectors or aftermarket performance injectors that fit OEM fuel rail specifications

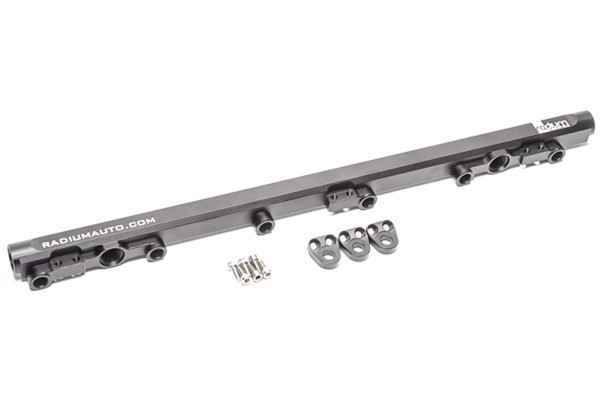

Kit Includes:

• Black anodized laser-etched aluminum fuel rail
• Three black anodized aluminum mounting feet
• Six stainless steel mounting bolts

This fuel rail provides ample port spacing for accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. An optional 14-0285 8AN ORB to M12x1.25mm fitting is available separately for those wishing to reuse the OEM fuel pressure regulator. Appropriate fittings must be selected based on your specific application requirements.
