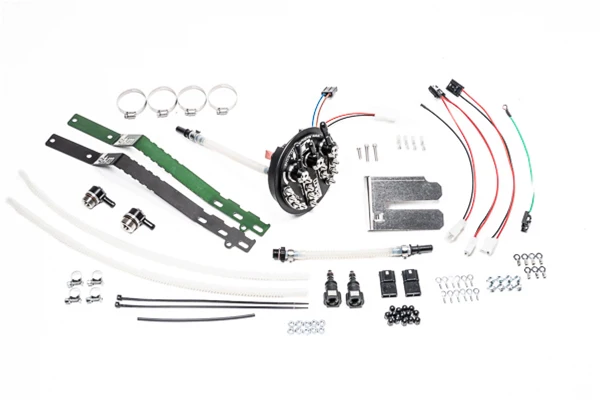

RADIUM Engineering 20-0630-00 Fuel Pump Hanger Assembly Late Nissan S14 S15 R33 R34

The RADIUM Engineering 20-0630-00 fuel pump hanger is a complete drop-in replacement for the factory fuel pump assembly in late model Nissan fuel tanks, including S14/S15 240SX, 200SX, Silvia, and R33/R34 Skyline models. This performance-engineered hanger assembly addresses the limitations of OEM fuel systems while retaining full factory functionality.

Key Features:

• Anodized aluminum construction with drop-in installation design
• Configurable for 1 or 2 aftermarket fuel pumps to meet high-performance fuel demands
• Compatible with Walbro GSS342 (255 LPH) or AEM 50-1200 fuel pumps (pumps sold separately)
• Merged 10AN ORB female pump-out port with restriction-free 8AN ORB return port
• Integrated venturi jet pump siphon system transfers fuel from passive to active tank side
• Retains factory fuel level sender, low fuel switch, and OBD-II fuel temperature sensor
• Polyamide nylon tubing feeds fuel from tank bottom to top hat assembly
• Custom anti-rotation stainless steel electrical terminals handle high current demands
• Hermetically sealed electrical connections with non-conductive anodized acorn nuts
• Compatible with gasoline, methanol, and E85 fuel types
• Brushless fuel pump compatible with FHST surge tank add-on capability

The redesigned venturi siphon system eliminates the backpressure restrictions common with OEM jet pumps when using high-flow aftermarket fuel pumps, while still effectively scavenging fuel from the saddle-bag style factory tank. Pre-installed adapter fittings accommodate all factory fuel line variations including SAE quick-connect and hose barb connections. Note that fuel pumps are not included and must be purchased separately.
