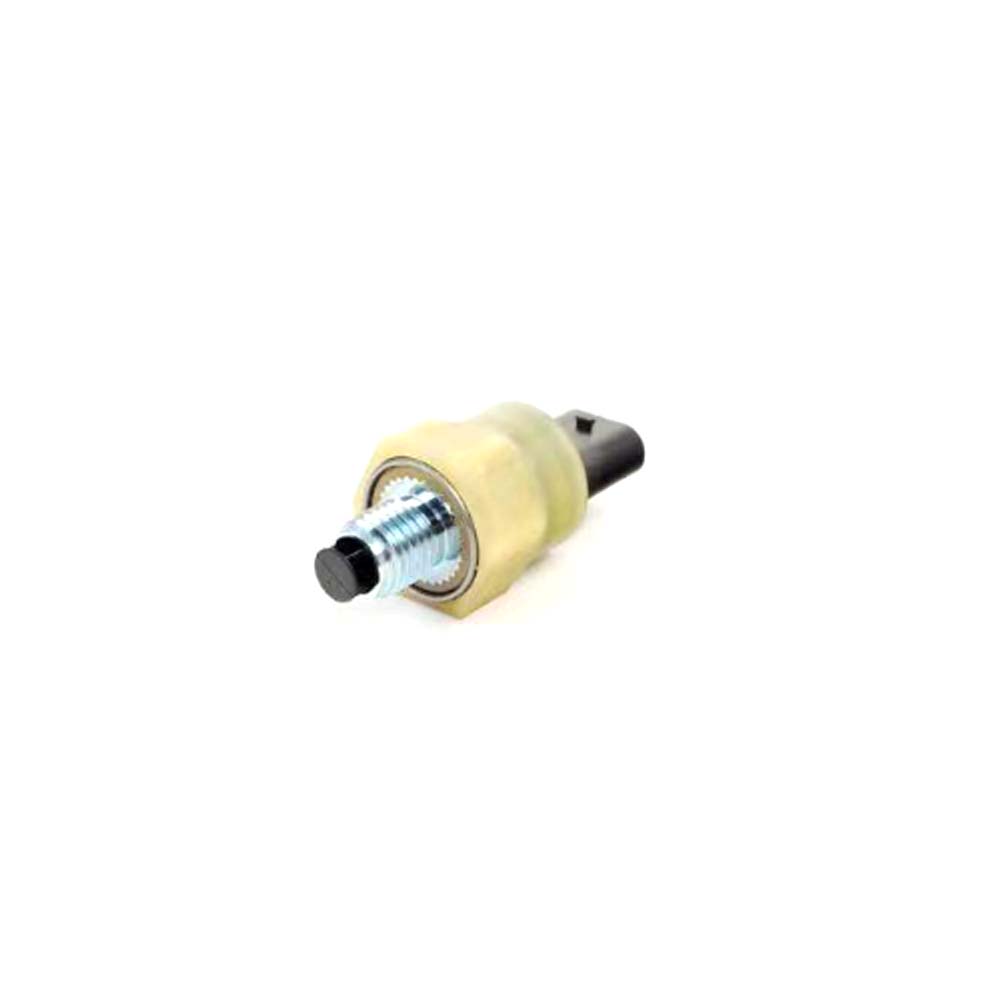

Hella 12-61-8-613-333 Engine Oil Temperature and Pressure Sensor

The Hella 12-61-8-613-333 is a precision-engineered engine oil temperature and pressure sensor designed to provide accurate, real-time monitoring of critical engine oil conditions. Also known by Hella part number 6PP 010 378-201, this dual-function sensor monitors both oil temperature and pressure through a single, integrated unit.

Key Specifications:

• Temperature measuring range: -40°C to 160°C (-40°F to 320°F)
• Pressure measuring range: 0.5 to 10.5 bar (7 to 152 PSI)
• Operating pressure rating: up to 40 bar (580 PSI)
• Thread size: M12 x 1.5
• 3-pin electrical connector
• Digital multipurpose sensor design

Features and Benefits:

• Dual-sensor design monitors both temperature and pressure simultaneously
• High-quality construction engineered to withstand harsh engine compartment conditions
• Provides critical data to the engine control unit for optimal lubrication and performance
• Helps prevent engine damage by alerting the system to low oil pressure or excessive temperature
• Direct replacement for OEM part number 12618613333
• Easy installation with standard M12 x 1.5 thread fitting

This sensor is commonly found mounted on the side of the engine block and is essential for maintaining proper engine oil management. By delivering accurate readings to the vehicle's computer system, it enables timely warnings that help protect your engine from damage due to inadequate lubrication or overheating.
