QA1 AIB6T AIB-T Series Spherical Bearing 3/8 in. Bore PTFE Lined

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

AIB6T
9 reviews
Sale Price

$12.54

Estimated ship date Saturday, November 21

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

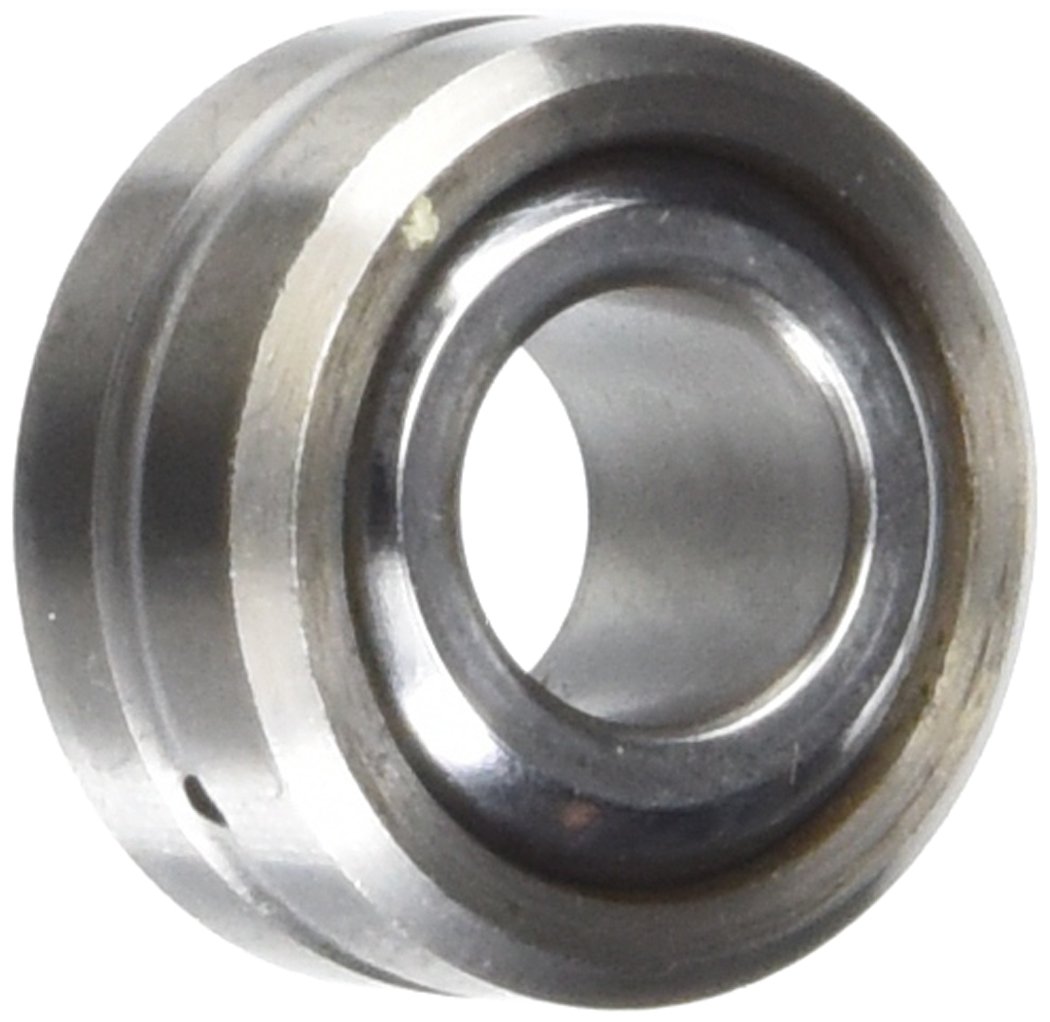

The QA1 AIB6T is an AIB-T Series commercial-grade spherical bearing featuring a 3/8 in. (0.375 in.) inner bore and a self-lubricating PTFE race liner. Designed as a commercial-grade option, the AIB-T Series is available in dimensions different from traditional COM Series bearings, making it a versatile choice for suspension links, rod ends, and other high-load pivot applications.

Key Features:

  • Ball: 52100 bearing steel, heat treated, precision ground, and hard chrome plated for maximum durability and wear resistance
  • Race: Alloy/chromoly steel, heat treated, with protective coating for corrosion resistance and oil coating
  • PTFE Liner: Self-lubricating polytetrafluoroethylene (PTFE) race lining eliminates the need for routine greasing
  • Inner Diameter (Bore): 3/8 in. (0.375 in.)
  • Outer Race Diameter: 0.8437 in.
  • Construction: Alloy/chromoly steel offers superior wear characteristics versus traditional carbon steel bearings

The AIB6T spherical bearing is sold individually and is ideal for performance automotive, racing, and powersports suspension builds where a maintenance-free, high-strength bearing is required.

Products specifications

Approx Bearing Weight

0.06

B (+0.0015/-0.005)

0.375

Ball Dia Ref

0.719

Chamfer Reference

0.020 in.

D (+0.0000/-0.0007)

0.8437

Inner Ball Diameter (in.)

0.3750 in.

Inner Ball Width (in.)

0.500 in.

Misalign Angle

9.5

Notes

Alloy steel.

O Flat Dia Ref

0.516

Quantity

Sold individually.

Race Width (in.)

0.406 in.

Receiver Race Diameter (in.)

0.8437 in.

Rod End Ball Diameter (in.)

0.719 in.

Rod End Bearing Material

Steel

Rod End Misalign Angle (degrees)

9.5 degrees

T (+/-0.005)

0.406

ULT. Static Radial Load (lbs.)

17,516 lbs.

UTL Radical Static

17516

W (+0.000/-0.005)

0.5
