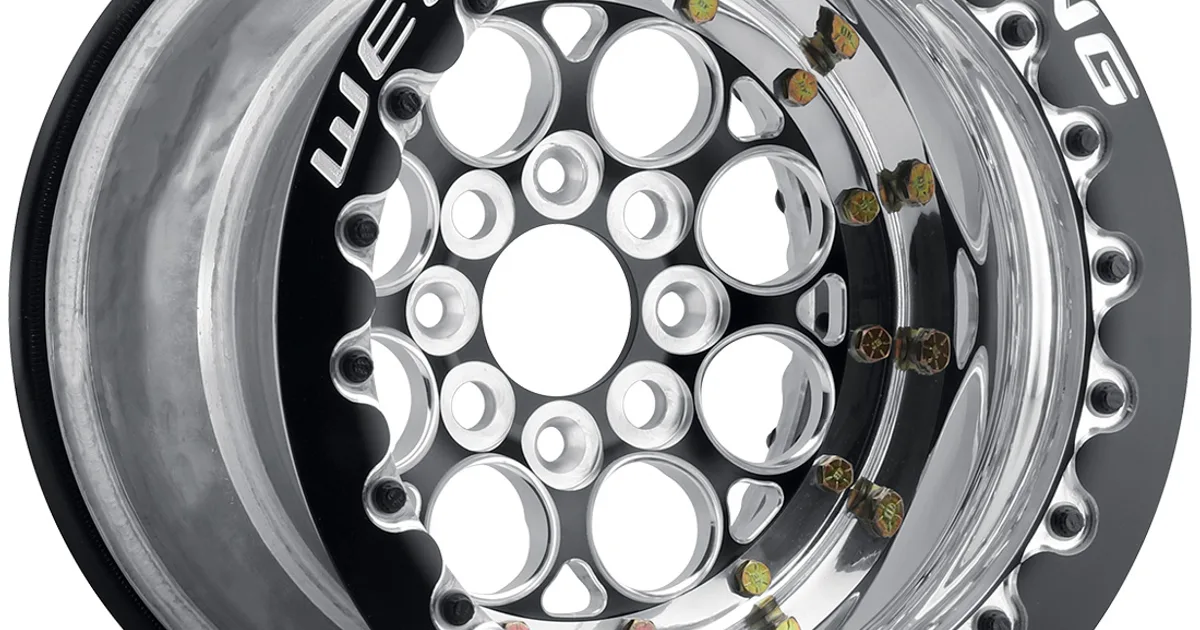

Weld Racing 766B-31016F Magnum Import 13x10 Black Single Beadlock Drag Wheel 5x100mm

The Weld Racing Magnum Import 766B-31016F is a 13x10-inch black single beadlock drag wheel purpose-built for front-wheel-drive import drag racing applications. Featuring a 5x100mm bolt pattern and 6-inch backspacing, this wheel is engineered to handle the extreme demands of the drag strip while keeping unsprung weight to a minimum.

Key Features:

• Size: 13x10 inches
• Bolt Pattern: 5x100mm
• Backspacing: 6 inches
• Offset: +12.7mm
• Center Bore: 2.515 in. / 63.881mm
• Finish: Black anodized center with polished forged aluminum shell
• Beadlock: Black anodized single beadlock ring, compatible with Mickey Thompson (MT) tire bead style
• Construction: 6061-T6 forged aluminum center with polished forged aluminum rim shell
• Rim Flange: Double-rolled forged flange for increased bead strength and additional material for rim screws
• Lug Compatibility: Accepts both shank and conical 60-degree lug nuts
• Drag strip use only
• Manufactured in Kansas City, MO, USA

The Magnum Import series picks up where Weld's domestic drag wheel lineup ends, addressing the specific needs of front-wheel-drive platforms with 4x100mm and 5x100mm bolt patterns. The single beadlock ring mechanically locks the tire bead to the wheel, preventing tire slippage or debeading during aggressive launches and high-speed runs. Combined with the lightweight forged construction, this wheel delivers the precision and consistency that serious import drag racers demand. Sold individually.
