ACL Bearings 5M1117H-10 Race Series Main Bearing Set Ford Oversize - 2.3L 010

Manufacturer

Part Number

5M1117H-10
Black Friday Price

$128.00

Estimated ship date Tuesday, December 08

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

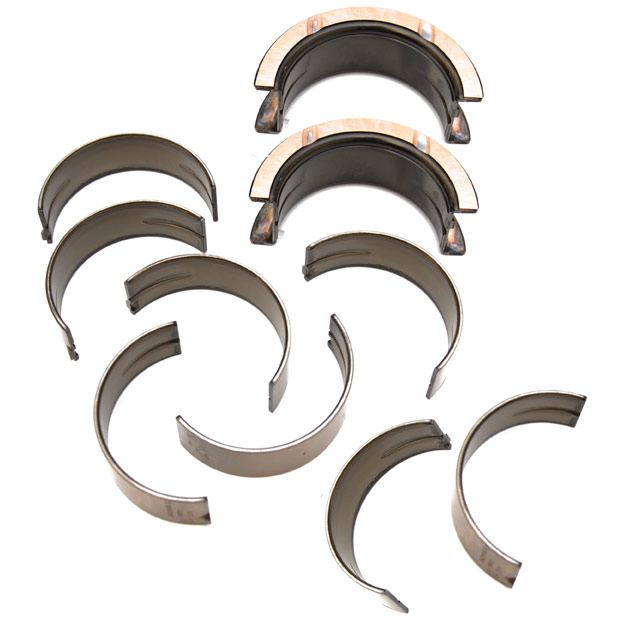

The ACL Bearings 5M1117H-10 is a Race Series main bearing set engineered for Ford 2300 (2.3L) single spark plug engines with large journal crankshafts, manufactured to .010" oversize specifications. These main bearings feature multi-layered tri-metal copper alloy construction that blends characteristics to provide high strength and excellent seizure resistance.

Key Features:

  • High strength overlay plate with reduced thickness for improved fatigue properties
  • Manufactured to exact tolerances ensuring a reliable fit and helping to maintain consistent clearances
  • Augmented with extended grooves, increased crush, bearing eccentricity, and enlarged I.D. chamfers
  • Elimination of flash plating on the back of the bearings to improve heat transfer and maximize grip between bearings and housing
  • 3/4 grooved design to optimize bearing load carrying surface area and oil flow to connecting rod bearings

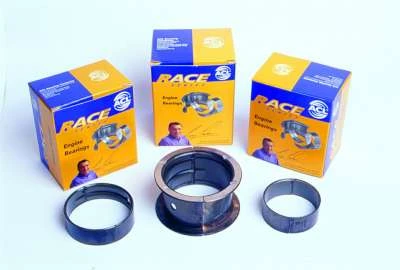

ACL Race Series performance bearings are designed for extreme endurance under harsh conditions, making them ideal for high-RPM racing applications where bearings have set records and won championships from Mexico to Bonneville. ACL is an engine builder's top choice for their quality and consistency, serving as both an OEM supplier and the preferred choice of professional engine builders worldwide.

Products specifications

Max Overall Length

0.950" (24.13mm) - 2185H-U/2194H-L 1.195" (30.35mm) - 2187H Flange

Max Std Shaft Size

2.3990" (60.935mm)

Max Std Tunnel Size

2.5910" (65.811mm)

Max Wall at Crown

0.0956" (2.428mm)

Min Std Shaft Size

2.3982" (60.914mm)

Min Std Tunnel Size

2.5902" (65.791mm)

Oil Clearance

Standard
