Wilwood 140-15949 Forged Superlite 6R Front Disc Brake Kit GM C1500 13.06" Rotor

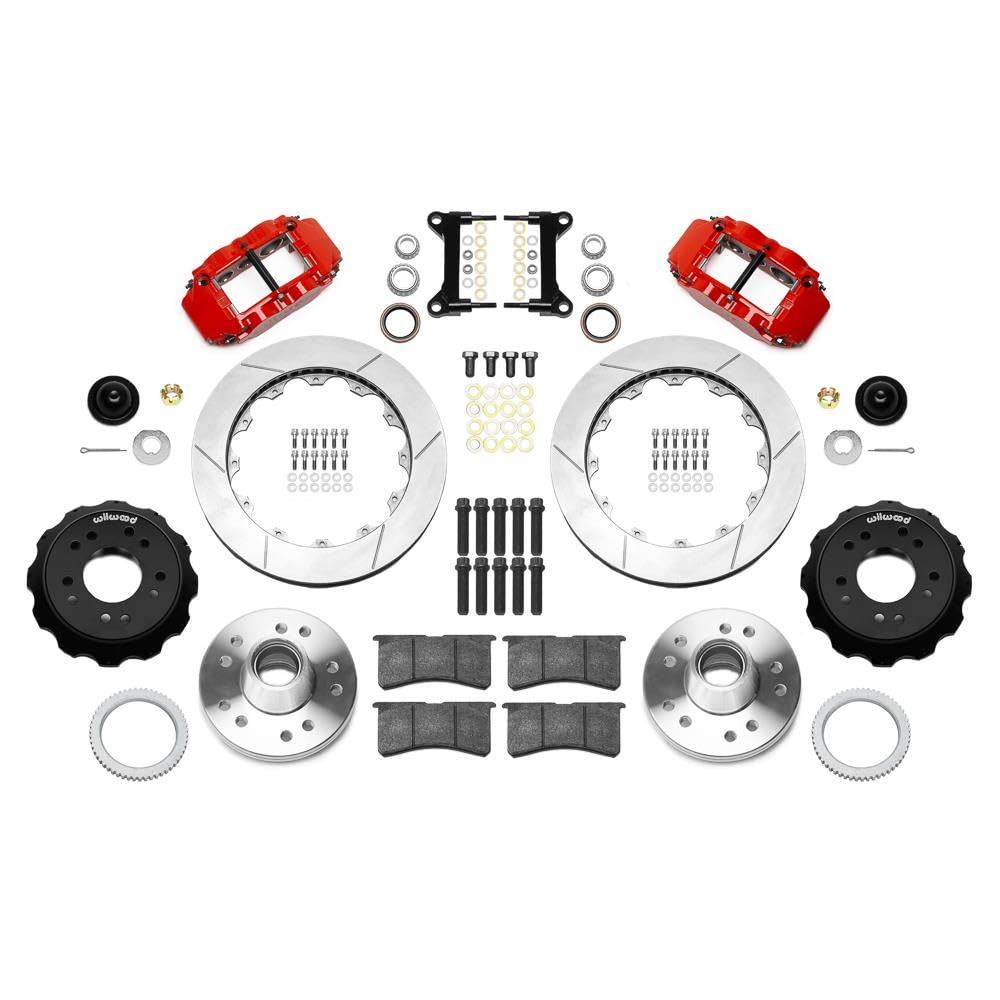

The Wilwood 140-15949 is a high-performance front disc brake kit engineered specifically for 1988-1998 Chevrolet and GMC C1500 and C2500 trucks. This complete brake upgrade system features the Forged Narrow Superlite 6R six-piston caliper paired with 13.06-inch rotors, delivering exceptional stopping power for modified trucks and performance applications.

Key Features:

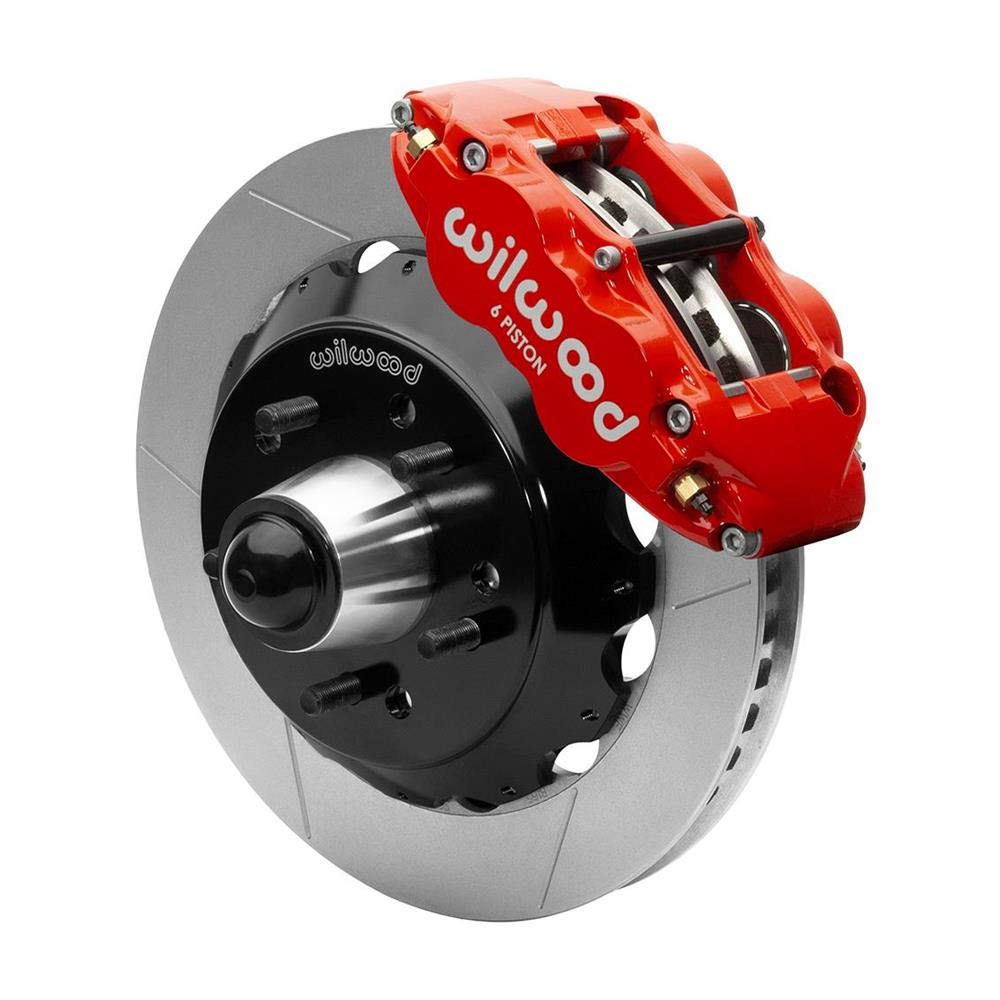

• Forged Narrow Superlite 6R six-piston calipers for maximum braking force and heat dissipation
• 13.06-inch one-piece iron rotors provide increased thermal capacity over stock brakes
• Includes Wilwood's 1-Piece Iron Drop Pro Spindles for bolt-on installation
• Dual bolt pattern hubs: 5 x 4.75" and 5 x 5.00" for versatile wheel fitment options
• Engineered for full compatibility with OE master cylinder output and factory ABS systems
• Application-specific design ensures simplified installation without fabrication
• Available in optional caliper finishes and rotor configurations for custom styling

This big brake kit is ideal for show trucks, high-performance street driving, and track applications where increased brake capacity is essential. The larger rotor diameter and six-piston caliper design work together to reduce brake fade, improve pedal feel, and deliver consistent stopping performance under demanding conditions. Perfect complement to wheel, tire, and suspension upgrades.
