Product Details

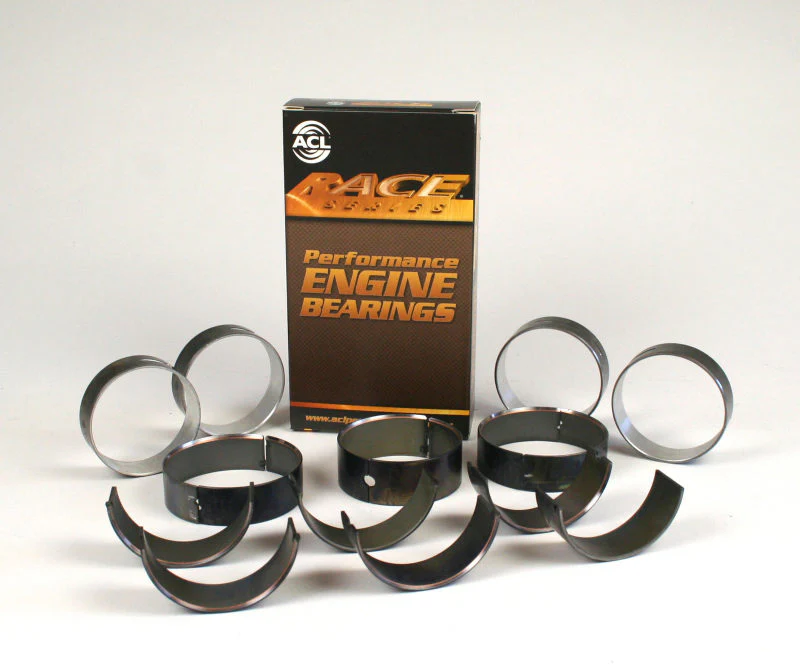

The ACL Bearings 5M7292HX-STD is a high-performance Race Series main bearing set designed specifically for Chevrolet Gen V LT engines, including the 376ci (6.2L) LT1, LT4, and L86 V8 applications. This main bearing set is offered with an additional lower thrust shell compared to the OEM main set, giving the builder the option to fit the engine bearings with either a 180° thrust or a full 360° thrust.

Key Features:

  • The 'HX' designation signifies the set will give .001" (0.025mm) extra oil clearance on a standard shaft
  • High performance tri-metal engine bearings designed to withstand higher RPM conditions
  • Bearing material: F780 with standard size (STD) upper and lower bearing halves
  • High strength overlay plate with reduced thickness for improved fatigue properties
  • The OEM set for the LT engine only has a 180° thrust, so the ACL set provides a good option for the performance builder
  • Improvements of material, dynamic thickness, heat conduction, oil grooves and oil distribution

Technical Specifications:

  • Minimum shaft size: 64.993mm (2.5588")
  • Maximum shaft size: 65.007mm (2.5593")
  • Minimum tunnel size: 69.873mm (2.7509")
  • Maximum tunnel size: 69.887mm (2.7515")
  • Maximum wall at crown: 2.417mm (0.0952")
  • Maximum overall length: 20.45mm (0.8051")
  • Vertical oil clearance range: 0.052mm to 0.119mm

ACL Race Series performance engine bearings are recognized as a premier brand throughout the motorsports world, making them an excellent choice for high-performance Gen V LT engine builds requiring precise oil clearances and enhanced thrust capacity.
