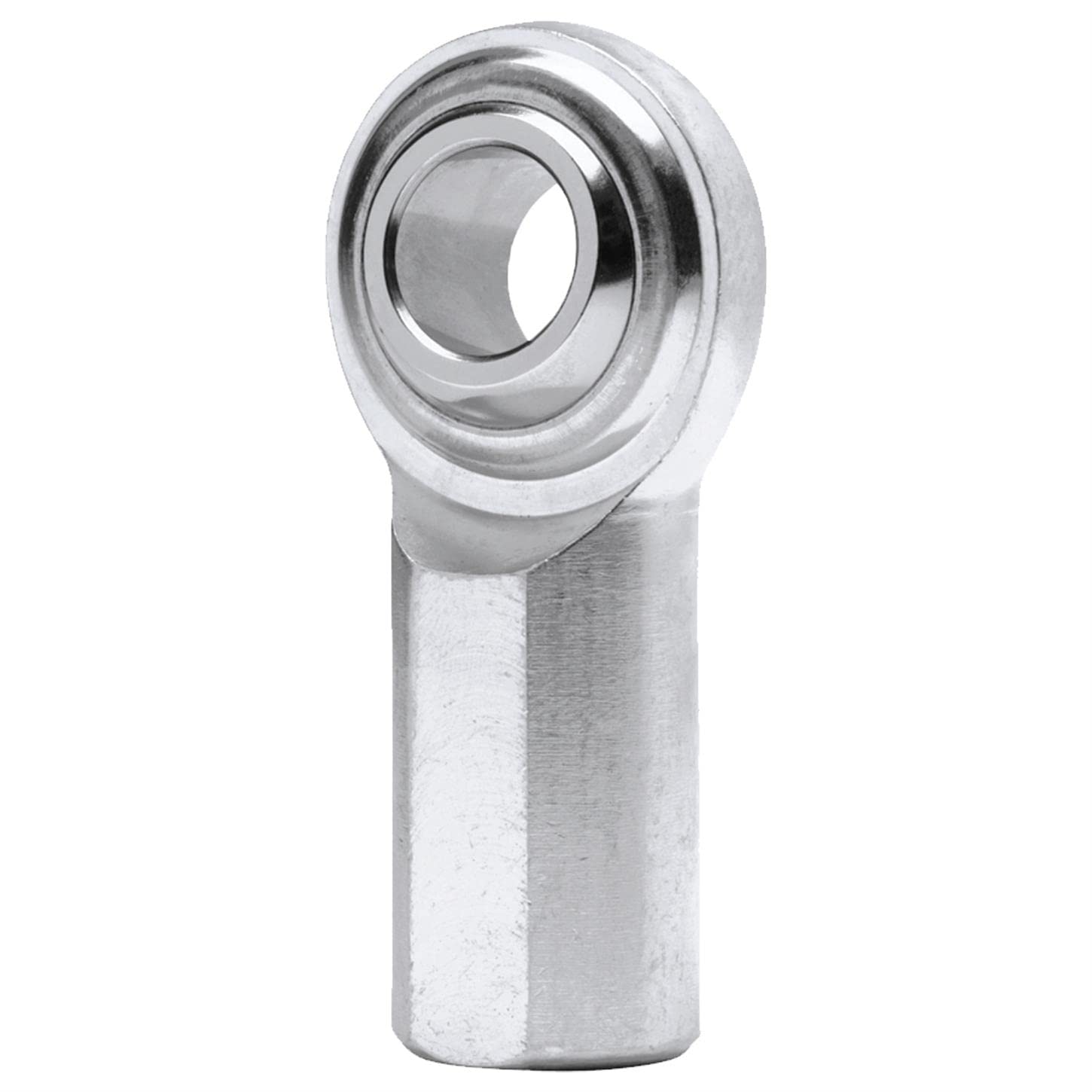

QA1 Precision Products GFL12T Rod End Bearing Bore Stainless Steel PTFE Lined - 3/4

Manufacturer

Part Number

GFL12T
Black Friday Price

$46.41

$49.56 Save 6%

In Stock (10+)

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 Precision Products GFL12T is a premium G Series two-piece stainless steel rod end bearing designed for high-performance suspension and linkage applications. Constructed from 300 series stainless steel, this rod end provides exceptional corrosion resistance and durability in demanding environments.

Key Features:

  • Female mounting configuration with 3/4" bore diameter
  • 3/4"-16 right-hand thread for secure installation
  • PTFE (polytetrafluoroethylene) race lining for reduced friction and maintenance-free operation
  • Two-piece construction allows for easy inspection and maintenance
  • 300 series stainless steel body for superior corrosion resistance
  • Ideal for suspension links, steering systems, and custom fabrication projects

The PTFE race lining provides smooth articulation while eliminating the need for regular greasing, making this rod end perfect for racing applications, off-road vehicles, and performance street machines. The female mounting style allows for bolt-through installation with standard hardware.

Products specifications

A (+/-0.015)

2.875

Approx Bearing Weight

0.65

B (+0.0015/-0.0005)

0.75

Ball Dia Ref

1.312

C (+0.062/-0.031)

1.562

D (+/-0.010)

1.75

E (+/-0.010)

1.125

F (+/-0.010)

1

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

24

Quantity

Sold individually.

Rod End Attachment

Female threads

Rod End Ball Width

0.875 in.

Rod End Centerline Length

2.875 in.

Rod End Construction

2-piece

Rod End Finish

Natural

Rod End Head Bore Size

0.750 in.

Rod End Head Diameter

1.750 in.

Rod End Head Width

0.875 in.

Rod End Material

Stainless steel

Rod End Misalign Angle (degrees)

24 degrees

Rod End Static Load Capacity

11,595 lbs.

Rod End Style

PTFE lined

Rod End Thread Size

3/4-16 LH in.

Thread Length

1.562 in.

Thread Type

Left Hand

Thread UNF-2B

3/4 -16

UTL Radical Static

11595

W (+/-0.005)

0.875
