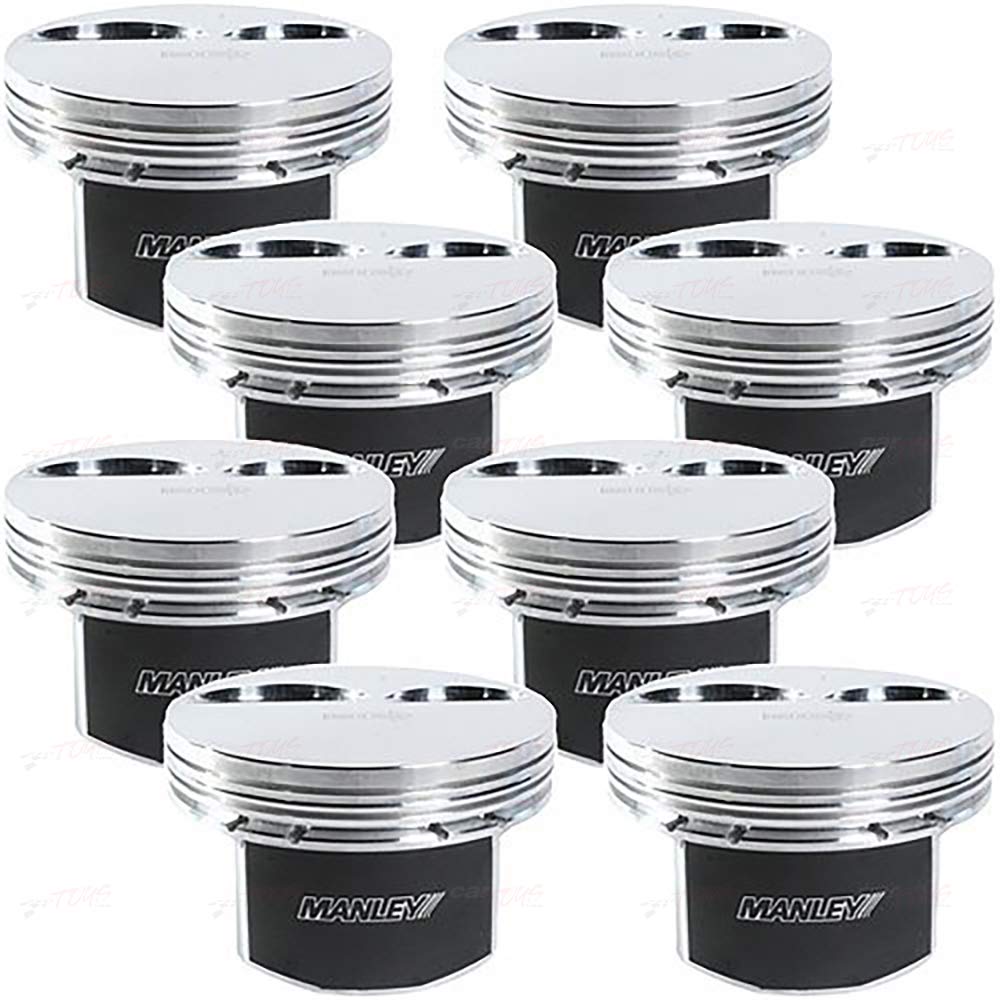

Manley 596570C-8 Forged Pistons Bore Compression Distance Dish - 4.070 1.065 10cc

Manufacturer

Part Number

596570C-8
Black Friday Price

$889.40

1 left at this price

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Manley 596570C-8 Platinum Series Piston Set is engineered for high-performance Chevrolet LS engine builds with a 4.100" stroke. Forged from domestic 2618 high-strength aluminum alloy, these pistons are designed to withstand extreme forces and high-temperature environments, making them ideal for power-adder and nitrous applications.

Key Specifications:

  • Bore Size: 4.070 inches
  • Compression Height: 1.065 inches
  • Dish Volume: -10cc for optimized compression ratios
  • Piston and Pin Weight: 413 grams (piston) + 110 grams (pin) = 523 grams total
  • Pin Size: 0.927" diameter x 2.300" length with 0.150" wall thickness
  • Valve Pocket Design: LS1, LS2, LS3, LS6, L92 compatible with 0.185" intake / 0.130" exhaust depth
  • Ring Grooves: 1.5mm top (positioned 0.225" down), 1.5mm middle, 3mm bottom
  • Recommended Rod Length: 6.125 inches
  • Piston Clearance: 0.0045" measured 1.100" from bottom of oil ring

Performance Features:

  • Contour forgings provide optimal strength-to-weight balance without grain-interrupting internal milling
  • Proprietary multi-step top ring groove machining ensures precise control of groove size, geometry, flatness, and finish
  • Offset wrist pin design for quieter start-ups and improved performance
  • Pressure balance grooves for enhanced stability
  • Perfect ring groove to skirt squareness achieved through unique single-fixturing manufacturing process
  • Compatible with Manley ring set P/N 46117-8
  • Premium Chrome Moly wrist pins and round wire locks included (0.061" wide)

Compression Ratios (with various chamber sizes): 11.5:1 (64cc), 11.3:1 (66cc), 10.8:1 (70cc), 10.6:1 (72cc). This 8-piston set is designed for professional engine builders and performance enthusiasts seeking maximum durability and horsepower in their LS builds.

Products specifications

Piston Quantity

8

Weight

413

Make

Chevrolet

Engine

LS

Bore Diameter

4.070

Compression Height

1.065

Engine Type

ICE

Product Type

Engine Piston Kit

Piston Volume

-10.00

Piston Series

Platinum Series

Piston Sub-Series

Standard

Title

Manley Piston Set, PIST-4.070/1.065CD/10ccDISH
