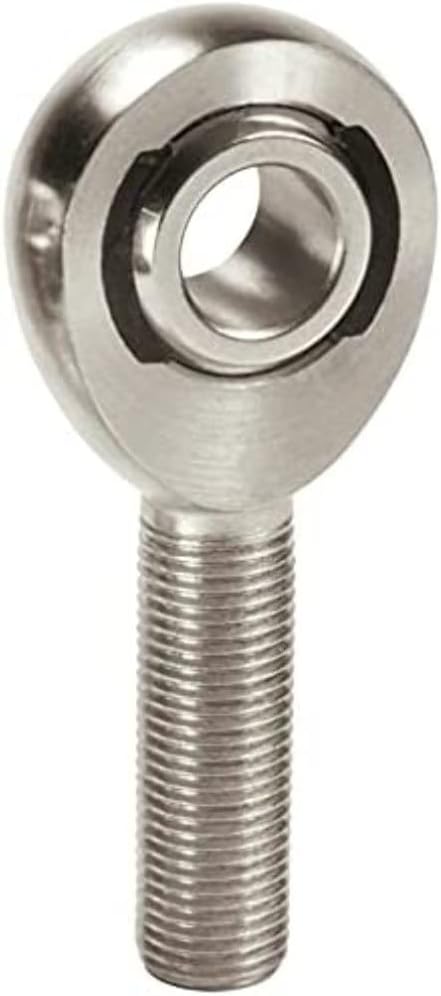

QA1 Precision Products XMR5 X Series Rod End 5/16" Bore Male Right-Hand Thread

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

XMR5
10 reviews
Sale Price

$10.92

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 XMR5 is a high-performance X Series rod end engineered for demanding suspension applications including 4-link setups, ladder bars, and steering linkages. Part of QA1's premium X Series lineup, this rod end delivers ultra-high strength and exceptional durability through its advanced loader slot design and chromoly steel construction.

Key Features:

  • Premium Materials: Heat-treated chromoly steel body with protective coating for corrosion resistance
  • Advanced Ball Design: 52100 bearing steel ball, heat-treated, precision ground, and hard chrome plated for maximum strength
  • Self-Lubricating Race: Reinforced Nylon 12 injection molded race with PTFE liner that keeps dirt and debris out while providing continuous lubrication
  • Loader Slot Technology: Unique design allows the ball to be inserted through a machined slot, creating metal-to-metal support for heavy shock loads
  • High Load Capacity: 7,639 lbs static radial load rating with 14-degree misalignment angle
  • No Maintenance Required: Self-sealing, self-lubricating design that won't pound out like traditional PTFE liners

Specifications:

  • Bore Size: 5/16 inch (0.313")
  • Thread Size: 5/16"-24 RH (right-hand male threads)
  • Thread Length: 1.250 inches
  • Head Diameter: 0.875 inches
  • Head Width: 0.437 inches
  • Ball Width: 0.437 inches
  • Centerline Length: 1.875 inches
  • Construction: 2-piece design

The XM Series rod ends offer exceptional value and are designed for most high-performance applications where strength, longevity, and smooth operation are critical. The increased cross-sectional thickness provides greater tensile strength compared to standard rod ends, making the XMR5 an excellent choice for racing and heavy-duty suspension systems.

Products specifications

A (+/-0.015)

1.875

Approx Bearing Weight

0.07

B (+0.0015/-0.0005)

0.3125

Ball Dia Ref

0.625

C (+0.062/-0.031)

1.25

D (+/-0.010)

0.875

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

14

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

0.437 in.

Rod End Centerline Length

1.875 in.

Rod End Construction

2-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.313 in.

Rod End Head Diameter

0.875 in.

Rod End Head Width

0.437 in.

Rod End Material

Chromoly

Rod End Misalign Angle (degrees)

14 degrees

Rod End Static Load Capacity

7,639 lbs.

Rod End Style

PTFE/KEVLAR® lined

Rod End Thread Size

5/16-24 RH in.

T (+/-0.005)

0.343

Thread Length

1.250 in.

Thread Type

Right Hand

Thread UNF-3A

5/16 -24

UTL Radical Static

7639

W (+/-0.005)

0.437
