ACL Bearings 5M429H-01 Race Series Main Bearing Set Small Block Chevy .001" Undersize

Manufacturer

Part Number

5M429H-01
Black Friday Price

$131.37

Estimated ship date Thursday, December 10

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

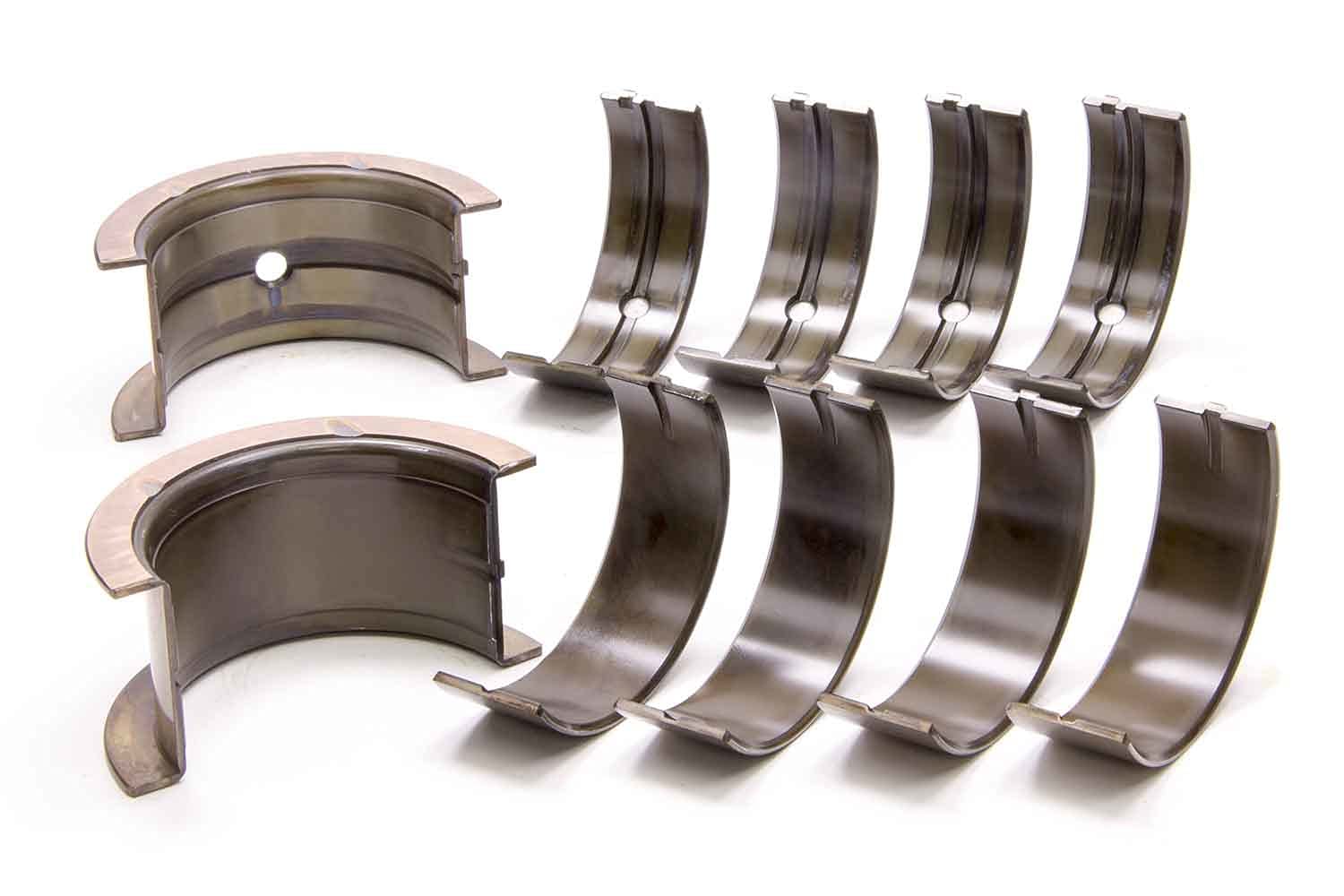

The ACL Bearings 5M429H-01 is a high-performance Race Series main bearing set engineered for small journal Small Block Chevrolet V8 engines, including 283 and 327 cubic inch displacements. This bearing set features a .001" undersize specification, designed for precision clearance control when used with standard crankshaft journals or to compensate for minor journal wear.

Race Series H-Series Construction:

  • Tri-metal design combining high strength with exceptional seizure resistance
  • Precision manufactured to micron-level tolerances for consistent wall thickness and crush
  • No flash plating applied to maximize bearing retention and heat transfer
  • Engineered to withstand extreme endurance conditions, high RPM operation, and demanding performance applications
  • Superior fatigue resistance compared to standard OEM bearings

Technical Specifications:

  • Application: Small Block Chevy small journal (283ci, 327ci V8 engines)
  • Size: .001" undersize
  • Series: ACL Race H-Series performance bearings
  • Material: Tri-metal construction with optimized bearing retention properties

ACL bearings are a trusted choice among engine builders and professional racers for their quality, consistency, and proven performance. As an Original Equipment supplier, ACL bearings deliver the durability needed for both high-performance street engines and extreme racing applications. The special coating process helps prevent premature bearing failures and expensive engine damage, making these bearings ideal for builds running high boost, elevated RPM ranges, or aggressive power modifications.

Products specifications

Max Overall Length

0.807" (20.49mm) w/ 2372H/HX 1.718" (43.64mm) w/ 7104H/HX Flange

Max Std Shaft Size

2.2993" (58.402mm)

Max Std Tunnel Size

2.4916" (63.287mm)

Max Wall at Crown

0.0954" (2.423mm)

Min Std Shaft Size

2.2983" (58.377mm)

Min Std Tunnel Size

2.4906" (63.261mm)

Oil Clearance

Standard
