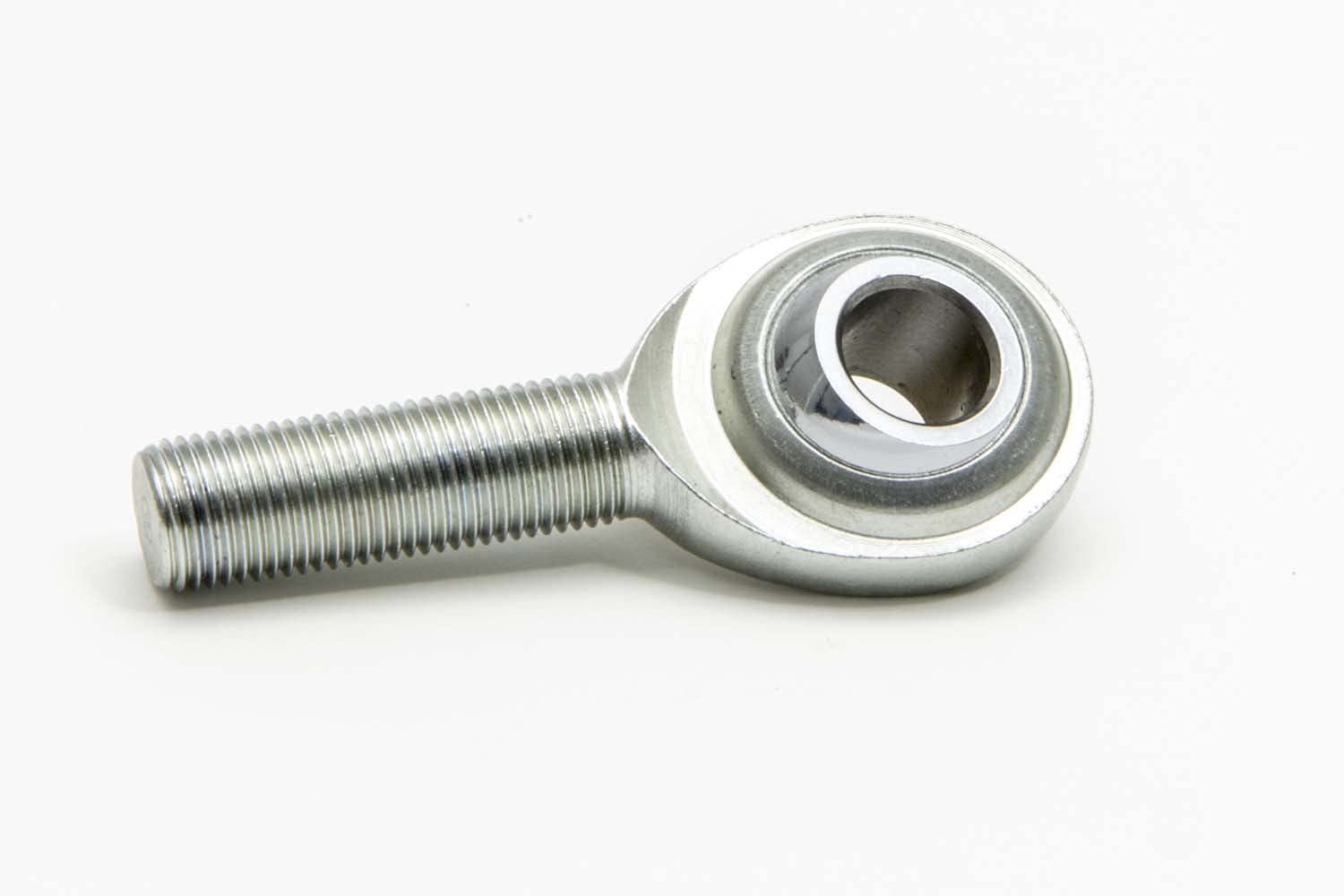

QA1 CMR4T C Series 2-Piece Carbon Steel Rod End 1/4in. Bore 1/4-28 RH Male Thread PTFE Lined

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

CMR4T
7 reviews
Sale Price

$7.53

Estimated ship date Saturday, November 21

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 CMR4T is a C Series two-piece carbon steel rod end featuring a self-lubricating PTFE race liner, male mounting configuration, a 1/4 in. bore, and right-hand 1/4 in.-28 threaded shank. Engineered for durability and low-maintenance performance, this rod end is well-suited for a wide range of commercial, racing, and performance suspension applications.

Key Features:

  • Two-piece construction — traditional C Series design for reliable strength and easy serviceability
  • PTFE race lining — integrated polytetrafluoroethylene liner provides self-lubrication, reducing maintenance intervals
  • 52100 bearing steel ball — heat treated, precision ground, and hard chrome plated for maximum wear resistance
  • Carbon steel body — protective coating applied for corrosion resistance
  • Male, right-hand thread — 1/4 in.-28 UNF threaded shank for straightforward installation
  • 1/4 in. bore — 0.2500 in. bore diameter for precise pin or bolt fitment
  • Available in inch dimensions; stud configurations also available

The QA1 CM-T Series rod end bearing delivers an economical yet dependable solution for builders and fabricators who need a maintenance-friendly spherical rod end without sacrificing performance. Sold individually.

Products specifications

A (+/-0.015)

1.562

Approx Bearing Weight

0.04

B (+0.0025/-0.0005)

0.25

Ball Dia Ref

0.5

C (+0.062/-0.031)

1

D Ref

0.75

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

27

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

0.375 in.

Rod End Centerline Length

1.562 in.

Rod End Construction

2-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.250 in.

Rod End Head Diameter

0.750 in.

Rod End Head Width

0.375 in.

Rod End Material

Carbon steel

Rod End Misalign Angle (degrees)

27 degrees

Rod End Static Load Capacity

2,835 lbs.

Rod End Style

PTFE lined

Rod End Thread Size

1/4-28 RH in.

Thread Length

1.000 in.

Thread Type

Right Hand

Thread UNF-3A

1/4 -28

UTL Radical Static

1842

W (+/-0.005)

0.375
