Wilwood 140-16010 AERO6 Front Lug Drive 14" Race Big Brake Kit Anodized Gray

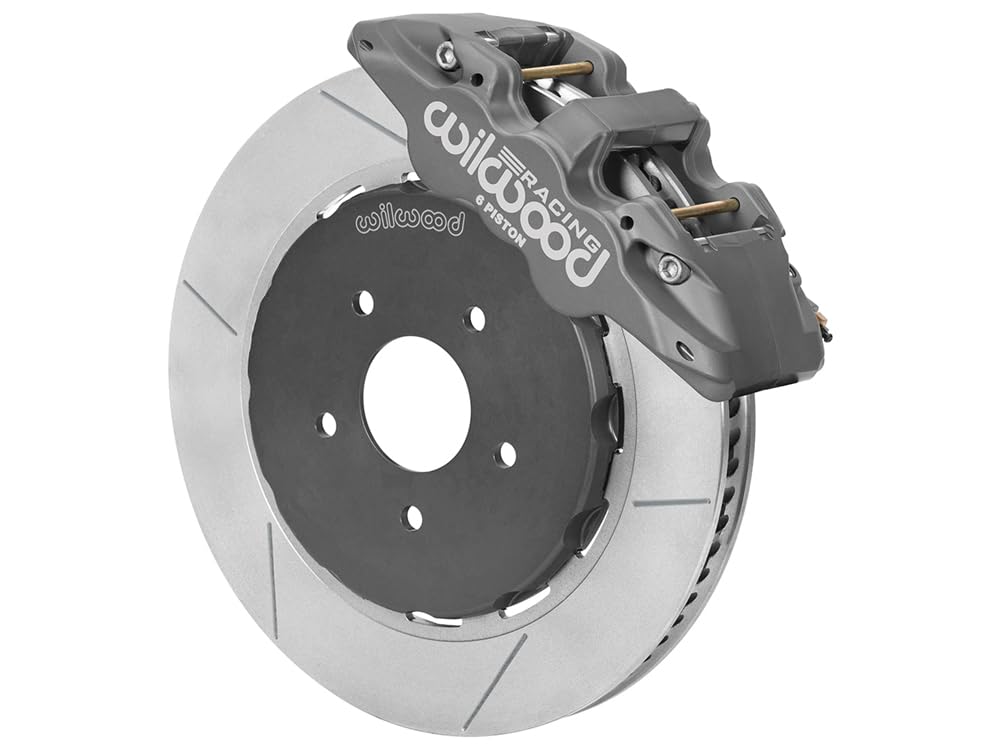

The Wilwood 140-16010 is a front lug drive big brake kit engineered specifically for dedicated road racing applications. Built around Wilwood's AERO6R/ST six-piston calipers, this kit delivers race-proven stopping power with a forged aluminum caliper body finished in a Type III Mil-Spec medium gray hard anodized coating for superior wear resistance, abrasion protection, and corrosion resistance throughout.

AERO6R/ST Caliper Features:

• Six-piston forged aluminum caliper body with Type III Mil-Spec hard anodized finish in medium gray
• Wide-body design accepts 20mm thick brake pads for increased pad volume and extended service life
• Thermlock® pistons reduce heat transfer from pads to caliper, increasing fade resistance and protecting caliper body, fluid, and seals
• Internal damper springs and controlled-retraction, high-temperature piston seals ensure consistent pedal feel throughout a race session
• Caliper piston volumes matched for full compatibility with OE master cylinder output and ABS systems
• Compatible with manual brake conversions using balance bar pedals and appropriately sized master cylinders

Rotor & Hat Assembly:

• Spec37 alloy GT competition series 14.00" diameter directional vane rotors for maximum thermal capacity
• Rotors dynamically mounted to OE hubs via lightweight forged aluminum hats
• Hats feature the same hard anodized finish for superior wear resistance at load-bearing surfaces
• Minimized unsprung and rotating mass while maximizing cooling efficiency and thermal stability under sustained high-heat racing conditions

Important Notes:

• Road race kit includes high-temperature racing brake pads — extended low-temperature use will cause premature rotor and pad wear

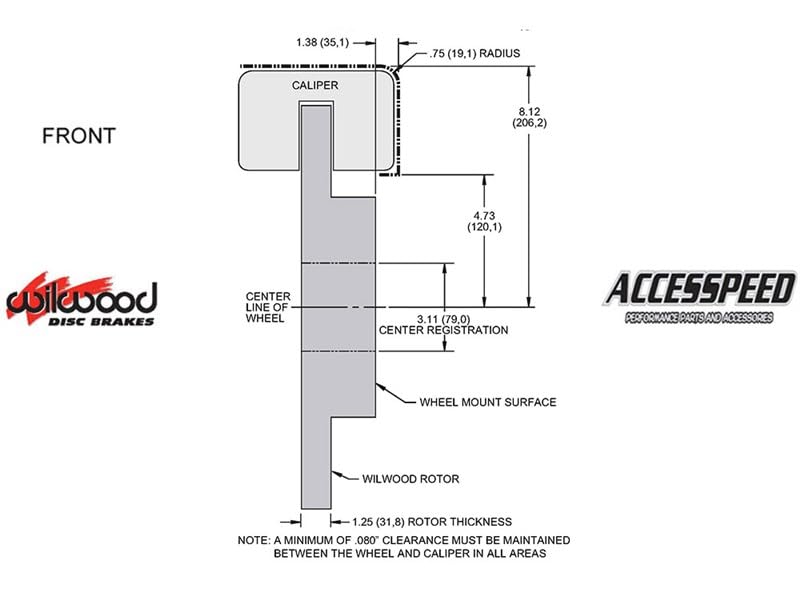

• Kit may fit some 18" wheels — verify clearance using the wheel clearance diagram in the kit installation instructions prior to purchase

The Wilwood 140-16010 front big brake kit provides the rigorous performance, durability, and thermal management required for sustained track competition, combining race-engineered components with a direct-fit, lug drive mounting design.
