MAHLE 930230010 LSX PowerPak Piston Kit 4.010 Bore 417ci 2618 Alloy

Manufacturer

Part Number

930230010
Black Friday Price

$793.78

In Stock (6)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

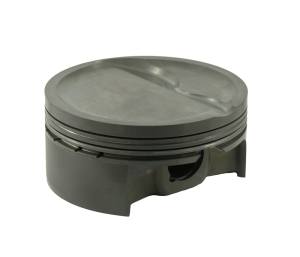

The MAHLE 930230010 PowerPak is a complete race-proven piston assembly kit engineered for high-performance LSX engine builds. This premium 8-piston set is designed with a unique LSX Combo Dish configuration featuring -20cc dish volume and specialized valve pockets that are compatible with LS1/2/6, LS7, and LS3/L92 style cylinder heads, providing exceptional versatility for various LS engine combinations.

Technical Specifications:

  • Bore: 4.010 inches
  • Compression Height: 1.050 inches
  • Stroke: 4.125 inches
  • Rod Length: 6.125 inches
  • Wrist Pin Diameter: 0.927 inches
  • Dish Volume: -20.0cc
  • Piston Weight: 392 grams
  • Compression Ratio: 9.7:1
  • Displacement: 417 cubic inches
  • Alloy: 2618 forged aluminum

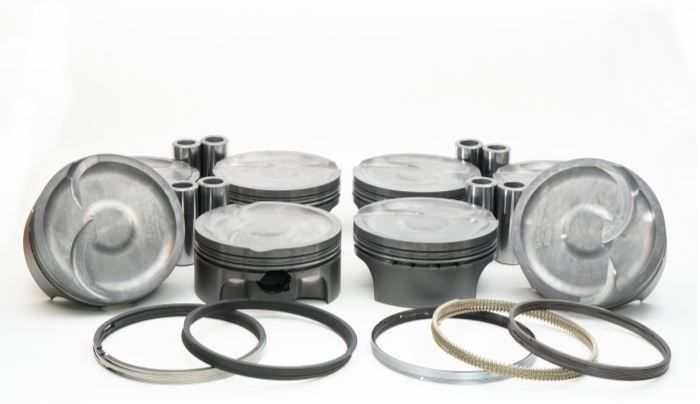

PowerPak Complete Kit Includes:

  • 8 hand-deburred forged pistons with performance coatings
  • High-quality steel wrist pins
  • Round wire locks
  • Low-drag performance piston rings

Advanced Features:

  • 2618 aluminum alloy construction provides superior detonation resistance for forced induction and high-compression applications
  • Phosphate dry lubricant coating protects against ring micro-welding and pin galling during initial startup and break-in
  • Proprietary Grafal anti-friction coating on piston skirts reduces friction and wear
  • Ultra-flat ring grooves paired with low-drag rings minimize parasitic drag for improved horsepower
  • Precision-machined with close tolerances for consistent performance

The 2618 alloy provides increased strength and detonation resistance compared to 4032 alloy, making this piston set ideal for high-performance street engines, forced induction applications, and racing environments where durability under extreme conditions is critical. Each piston is forged for maximum strength and features MAHLE's motorsport-proven design technology backed by over 90 years of racing heritage.

Products specifications

Piston Mass

392g

Piston Style

Floating

Piston Kit Quantity

Sold as a set of 8

Piston Material

Forged, 2618

Pin Style

Dish, w/ 2 valve reliefs

Clips Included

Yes

Clip Style

Round Wire

Rings Included

Yes

Coatings

Phosphate plus Grafal

Piston Ring Thickness

1.0mm, 1.0mm, 2.0mm

Crown Vol

-20.0cc

Pin Diameter

0.927

Pins Included

Yes

Pin Material

Steel

Pin Style

Floating

Prop 65
