ARB 1780500 Slimline LED Roof Rack Light Bar 36 Inch

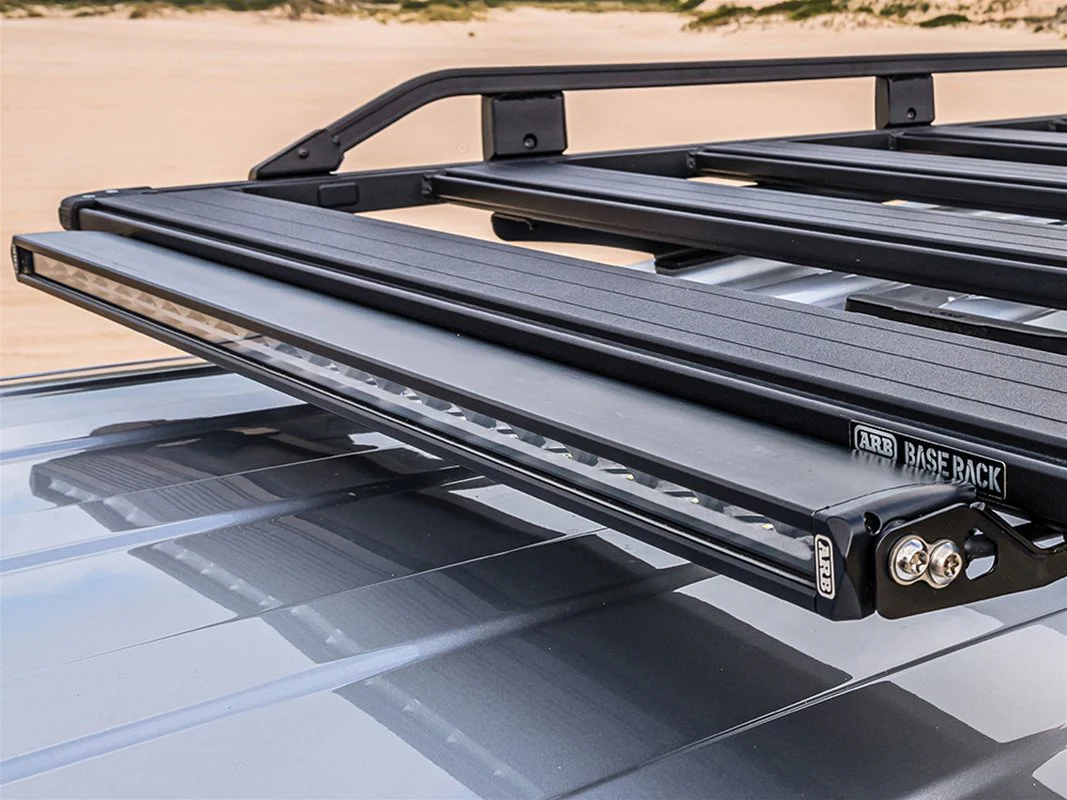

Complementing the sleek design of the ARB BASE Rack, ARB has added to its family of driving lights a dedicated roof rack mounted light bar. This 36-inch slimline light bar features 20 OSRAM 6.5W LEDs delivering 130W of power with 8,552 effective lumens and a throw distance of 1 lux at 728 meters. The unique half cup reflectors throws the light down the road where needed, providing a defined beam line that has been tuned into a spot/flood combo configuration.

Key Features:

• 20 OSRAM 6.5W LEDs producing 9,279 raw lumens (8,552 effective lumens)
• Dimensions: 37.55 inches wide x 2.63 inches deep x 1.33 inches high
• Uniquely tuned reflector design limits reflection off bar work and vehicle, with up to 196 feet of spread
• Combo beam technology provides excellent mid-to long-range spread as well as distance down the road
• Manufactured from extruded aluminum with high pressure die cast aluminum caps for superior heat dissipation and LED longevity
• Fully powder coated in stealth black finish with light tinted polycarbonate lens for a non-obtrusive look
• Virtually indestructible polycarbonate lens
• Dust and waterproof to IP68 rating

Installation and Compatibility:

• Uses the mounting system built into the ARB BASE Rack for setup in minutes with multiple mounting options in front of or below the rack
• Unique multi-position mounts suitable for BASE Rack, as well as ARB trade and touring racks
• All brackets are included with the light
• Suitable for use with ARB driving light loom 3500810 and 3500820 (sold separately)
• Can be added to most existing ARB roof racks, but drilling may be required

Technical Specifications:

• Input voltage: 12V to 48V
• Power consumption: 130W, current draw 9.2A at 14.4V
• Color temperature: 5,500-6,000K
• Operating temperature range: -40°C to +65°C (-40°F to +149°F)
• Beam spread: horizontal 8° and vertical 6°
• Runtime life: 50,000 hours
• 2-pin over-molded waterproof connector with 330mm input cable
• R10, CE, and ROHS certified

Protection Features:

• Reverse polarity protection
• Over and under-voltage protection
• Vibration and UV tested
• Breather with pressure-tested seal
• Protected against radio frequency (RFI) and electromagnetic (EMC) interference

This light bar is designed specifically for ARB BASE Rack systems, providing a low-profile lighting solution that maintains the sleek aesthetic while delivering powerful illumination for night driving and off-road adventures. Note: This is the light bar only without wiring harness (wiring loom sold separately as part number 3500810 or 3500820).
