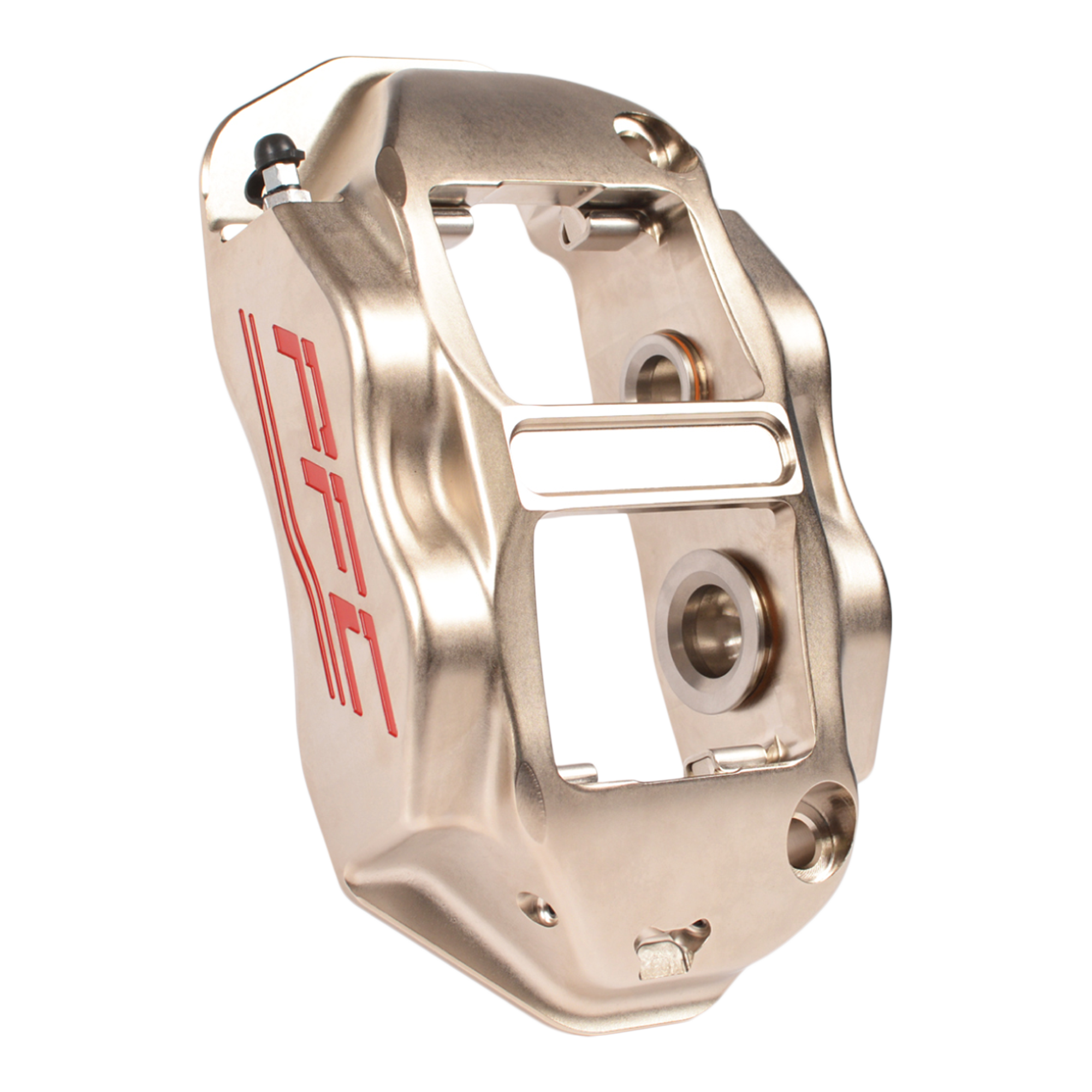

Performance Friction 94-323-290-365-01 ZR94 Brake Caliper Leading Left Nickel Plated 4-Piston

The Performance Friction ZR94 brake caliper is a high-performance racing caliper designed for maximum stopping power and reliability. This leading left configuration features a nickel-plated finish for enhanced corrosion resistance and durability in demanding motorsports applications.

Key Features:

• Monoblock 4-piston design with differential piston sizing (29.0mm and 36.5mm) for optimal brake balance and modulation
• Nickel-plated finish provides superior corrosion protection compared to standard aluminum
• Internal fluid passages eliminate external brake lines for increased strength and reduced risk of damage
• 180mm x 42mm radial mount spacing (7.00 inches) for secure installation
• Compatible with rotors 11.75" to 12.716" OD and 0.81" to 1.25" thick
• Maximum operating pressure: 103 bar (1500 PSI)
• Fluid capacity: 32.4 cm³ per caliper

The ZR94 series utilizes Performance Friction's patented pad retraction system to eliminate brake drag, improving response time and reducing unwanted heat buildup. The high-temperature aluminum alloy construction maintains stiffness throughout the operating temperature range, while thermal insulating piston heat caps help reduce caliper temperatures by 50° to 100°F. This caliper accepts PFC pad shape 7934/7915 and is compatible with Wide 5 and 5x5 wheel patterns, making it ideal for circle track racing, road racing, and other high-performance applications.
