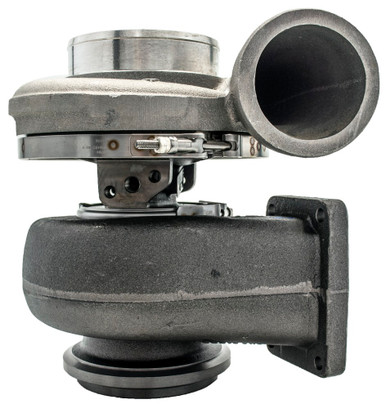

BorgWarner 167736 S400 Turbocharger for Detroit Diesel Series 60

The BorgWarner 167736 is a genuine OEM S400S009 (TV5101) turbocharger designed as a direct-fit replacement for 1995-2004 Detroit Diesel Series 60 engines with 11.1L displacement. This turbocharger is engineered to support engines producing 300-350 horsepower at speeds ranging from 1800-2100 RPM, making it ideal for heavy-duty truck and tractor applications.

Key Specifications:

• Turbo Model: S400S009 / TV5101
• Application: Detroit Diesel Series 60 11.1L (11,100cc) diesel engines
• Power Output: 220-257 kW (300-350 HP)
• CHRA: 176141 with oil-cooled bearing housing (168399)
• Compressor Wheel: 168407 (63.4mm inducer, 91.4mm exducer, 7+7 blades)
• Turbine Wheel: 167798 (83.61mm inducer, 74.24mm exducer, 10 blades)
• Turbine Housing A/R: 1.10
• Back Plate: 167783
• Compressor Cover: 168969

OEM Cross-References: This turbocharger replaces Detroit Diesel OEM numbers 23503732, 23507908, 23507909, 8929435, 8929796, 8929902, and 1080037R. It also cross-references to Garrett/Schwitzer part numbers 466245-5001, 466245-5002, 466838-5003, 466838-5005, and 466838-5007 (among others).

This is a complete, brand new genuine BorgWarner turbocharger—the exact same part sold at dealership parts departments. Package includes gaskets for installation. BorgWarner turbochargers are known for their durability, precision engineering, and proven performance in heavy-duty commercial applications.
