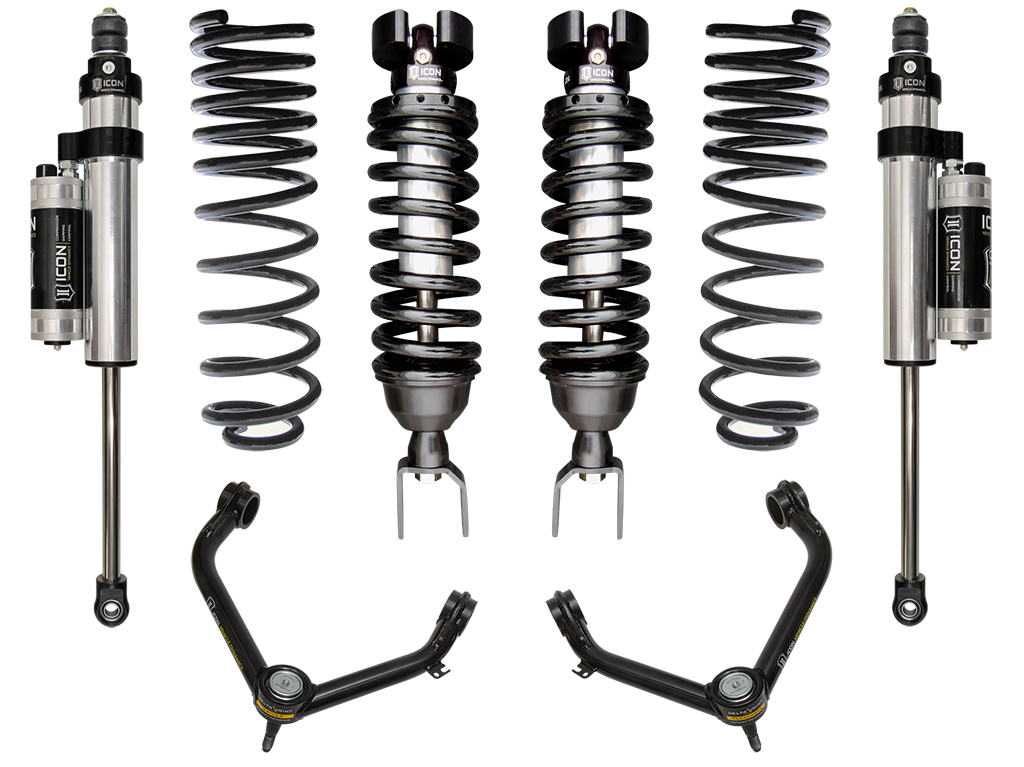

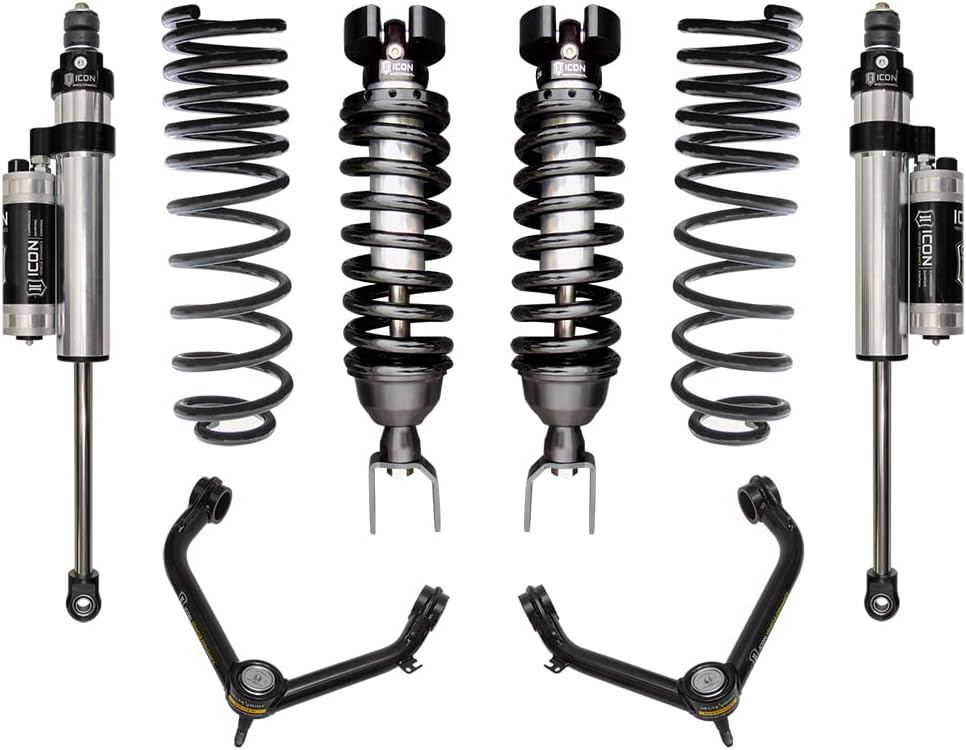

ICON Vehicle Dynamics K213105T Stage 5 Suspension System 2019+ Ram 1500 0-1.5" Lift Tubular UCA

The ICON Vehicle Dynamics Stage 5 Suspension System is engineered specifically for 2019 and newer Ram 1500 trucks, delivering maximum performance both on and off-road. This complete suspension upgrade features adjustable 2.5" coilover shocks with internal reservoirs, tubular upper control arms with patented Delta Joints, and 2.5" aluminum series CDCV piggyback reservoir rear shocks with compression damping adjustability.

Key Features:

• Adjustable coilovers provide 0-1.5" of lift height for fitment of larger, more aggressive tires
• Vehicle-specific tuned 2.5" front coilover shocks with internal reservoir for exceptional cooling and performance
• Tubular steel upper control arms with patented Delta Joint technology (U.S. Pat. 10,731,700)
• 2.5" aluminum series CDCV piggyback reservoir rear shocks with compression damping adjustability
• 1.5" lift dual rate rear coil springs for incredible ride quality and increased suspension performance
• 6061 aircraft grade aluminum CNC machined components
• Fully rebuildable and revalvable shocks for long-term serviceability
• ICON-engineered coil springs for superior vehicle feel through the range of travel

Delta Joint Technology:

The patented Delta Joint combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball. Unlike traditional uniballs that are exposed to the elements, the Delta Joint features a zinc-plated housing for corrosion resistance and a tough grease seal to keep contaminants out. The metal-on-metal construction with greaseable design ensures longevity and noise-free operation while providing greater angularity than a typical ball joint.

Application-Specific Engineering:

This system was specifically developed for the redesigned 2019+ Ram 1500 platform, which features an all-new frame, increased chassis rigidity, and lighter overall weight. ICON engineers optimized shock tuning and designed new rear shocks specifically for this generation to maximize fitment and performance on the updated platform.

The Stage 5 system dramatically increases wheel travel and damping ability, translating to outstanding vehicle control and ride quality in all conditions. By balancing performance from front to rear, this suspension system enhances the capabilities of your Ram 1500 whether you're on the highway or tackling challenging off-road terrain.
