ICON Vehicle Dynamics K213103 Stage Suspension System Ram Lift - 3 2019+ 1500 0-1.5

(2019-2021 Ram 1500; 2014-2019 Toyota Highlander; 2008-2009 Pontiac G6 GXP)

Manufacturer

Part Number

K213103
Sale Price

$2,623.81

3 left at this price

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

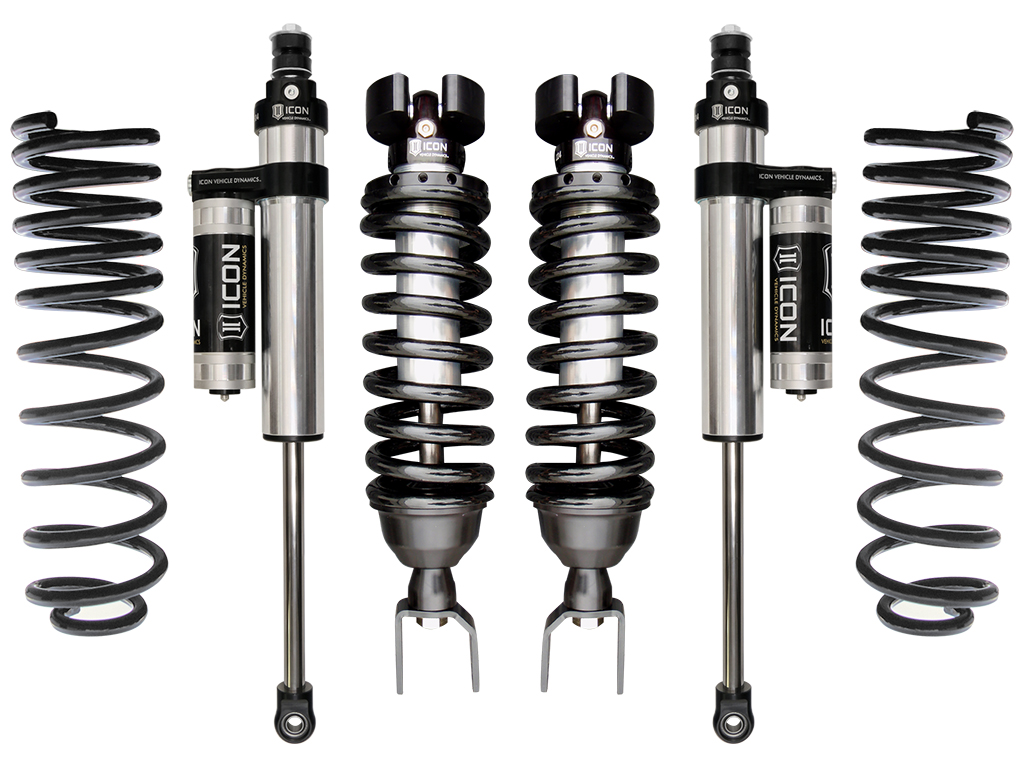

The ICON Vehicle Dynamics Stage 3 Suspension System is engineered specifically for 2019 and newer Ram 1500 trucks, delivering exceptional performance both on-road and off-road. This complete suspension upgrade addresses the significant platform changes introduced in the 2019 redesign, including the all-new frame, increased chassis rigidity, and reduced weight, with custom-tuned components optimized for the modern Ram architecture.

Front Suspension Components:

  • Height-adjustable 2.5" coilover shocks with internal reservoir design for superior heat dissipation
  • Adjustable lift range from 0 to 1.5 inches to accommodate larger, more aggressive wheel and tire combinations
  • Vehicle-specific damping tune engineered for optimal ride quality and control
  • ICON-engineered coil springs designed for superior vehicle feel throughout the suspension travel range
  • FK rod end bearings providing extended service life and minimal deflection under load

Rear Suspension Components:

  • ICON 2.5 Aluminum Series piggyback reservoir shocks with one-piece impact extruded aluminum cylinders
  • 1.5-inch lift dual-rate coil springs delivering exceptional ride quality and increased suspension performance
  • Aluminum construction offers excellent corrosion resistance and consistent finish quality
  • Tuning balanced to complement front coilover performance for complete vehicle optimization

Performance Benefits:

  • Increased wheel travel and damping capability for outstanding vehicle control in varied terrain
  • Enhanced suspension articulation for improved off-road capability
  • Maintains excellent on-road ride quality while dramatically improving off-road performance
  • Complete front-to-rear suspension balance engineered specifically for the 2019+ Ram 1500 platform

This Stage 3 system represents ICON's premium suspension offering for the Ram 1500, combining advanced shock technology with precision-engineered spring rates to maximize both performance and comfort. The adjustable height feature provides versatility for different driving conditions and tire sizes, while the internal reservoir and piggyback designs ensure consistent damping performance even during extended high-demand use.

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Products specifications

Fits

2019-2021 Ram 1500; 2014-2019 Toyota Highlander; 2008-2009 Pontiac G6 GXP

Prop 65

WARNING: This product contains chemicals known to the State of California to ca

Spring Color

Black

Maximum Lift

2.5

Coils Quantity Rear

2

Bushings Included

Yes

Add-On Part

198001 - BILLET SPANNER WRENCH KIT

Recommended Aftermarket Wheels

ICON Alloys | 20x9" w/ 5" Backspace / 0mm Offset

Shocks Included

Yes

Add-On Part

191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)

Grade Type

Performance

Spring Material

Steel

Maximum Lift

1.5

Recommended Aftermarket Wheels

ICON Alloys | 18x9" w/ 5" Backspace / 0mm Offset

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT

Coils Quantity Front

2

Recommended Aftermarket Tires

33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)

Mounting Hardware Included

Yes

OEM Wheels & Tires Fitment

Yes
