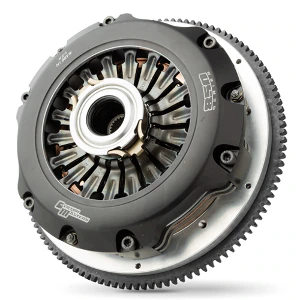

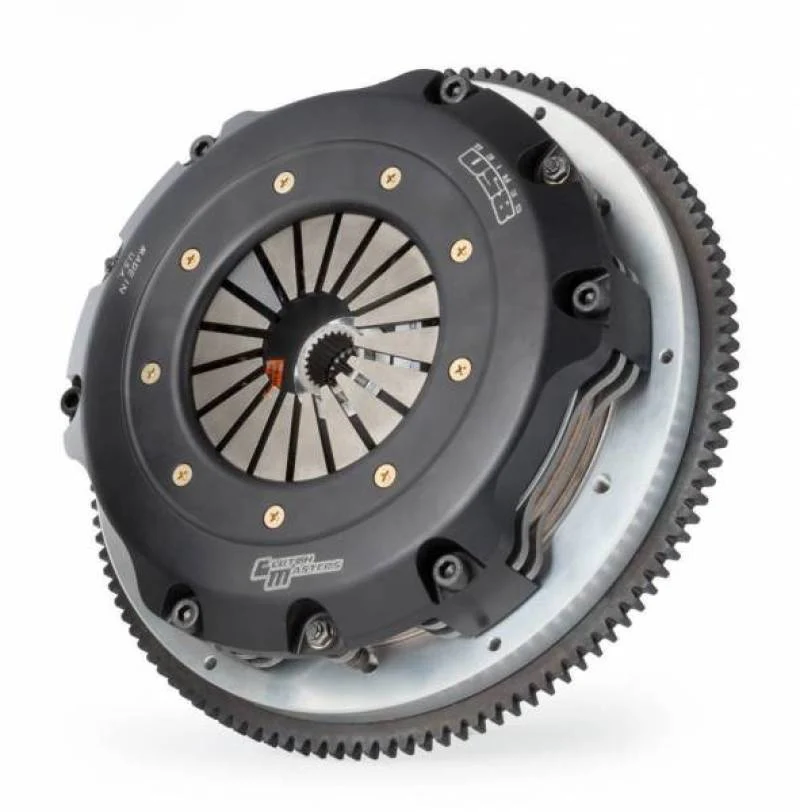

The Clutch Masters FX850 Twin Disc Clutch Kit is an 8.5-inch high-performance clutch system engineered for serious street and racing applications. This complete kit includes a billet aluminum flywheel, twin disc assembly, and all necessary components for installation.
Street and Race Configuration (TD8S):
- One sprung ceramic disc for smooth engagement and drivetrain shock absorption
- One Fiber Tuff (Formula) rigid disc for maximum grip and heat resistance
- Billet aluminum cover assembly with Type 3 hard anodizing for superior strength
- QR (Quick Release) pressure plate system reduces clutch chatter by up to 50%
- Billet 6061-T6 aluminum flywheel machined to SFI spec 1.2 for competition use
- Heavy-duty throw-out bearing and pilot bearing included
- Clutch alignment tool included for proper installation
Performance Benefits: The FX850 delivers exceptional holding capacity for high horsepower and torque applications while maintaining manageable pedal pressure. The twin disc design increases usable friction surface area with approximately 50% increase in pedal effort compared to stock. The machined billet aluminum cover provides 25% more tensile strength than cast alternatives with minimal flex (.003" versus .030" in stamped units), ensuring consistent clutch operation and confident shifting at high RPM.
Key Features: The unique QR System uses three spring-loaded bolts for even pressure plate engagement and disengagement, delivering smooth street operation with race-proven performance. The sprung ceramic disc absorbs drivetrain shock, making this kit suitable for both daily driven high-horsepower vehicles and dedicated race cars. Components can be purchased separately for economical repair and maintenance.
This kit is ideal for modified street vehicles, road racing, time attack, and drag racing applications where maximum holding power and reliability are essential. The combination of ceramic and Fiber Tuff friction materials provides outstanding heat resistance and durability for extended high-performance use.
