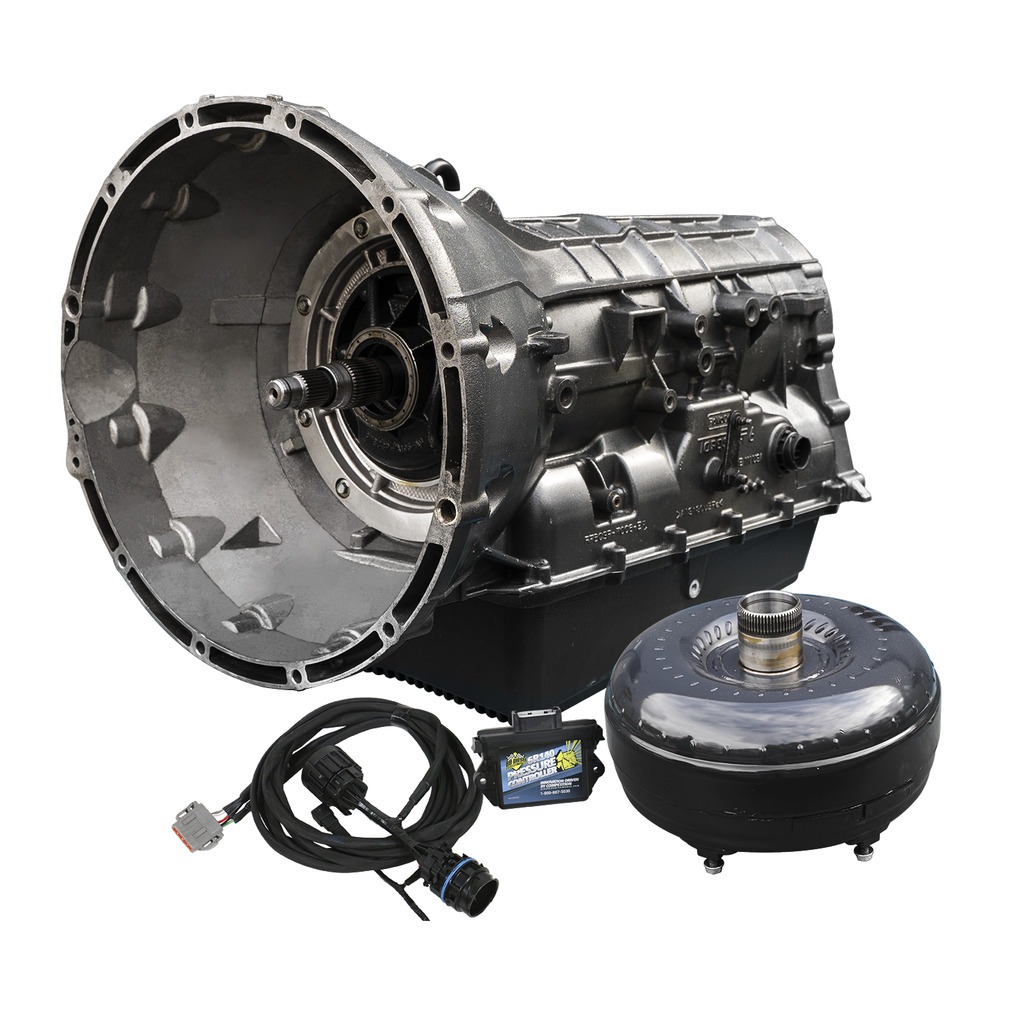

BD Diesel 1064504SS TowMaster Transmission Converter Package Ford Power Stroke - 6R140 2011-2016 6.7L

The BD Diesel TowMaster 6R140 Transmission and Torque Converter Package delivers a matched, dyno-tested solution engineered for Ford 6.7L Power Stroke diesel trucks. This complete package combines a heavy-duty rebuilt transmission with a performance torque converter, designed to handle the extreme power and torque demands of towing, street driving, and performance applications.

Transmission Features:

• Significantly increased clutch count over stock: Forward 6 (20% increase), Direct 6 (20% increase), Intermediate 8 (60% increase), Overdrive 8 (14% increase), Low Reverse 5
• Custom BD patented pressure plates maximize clutch capacity without compromising strength
• Brand new valve body for improved shift quality and durability
• Electronic Line Pressure Controller delivers up to 300 PSI line pressure at wide-open throttle
• 76% more clutch holding power compared to stock transmission
• Intelligent pressure control activates only when boost exceeds 15 PSI, eliminating parasitic load and excess heat during normal driving
• Heavy-duty BD pan with increased fluid capacity for better cooling

Torque Converter Features:

• Dual surface clutch assembly for improved lockup and power transfer
• Machined steel reaction ring replaces weak factory stamped design
• Furnace-brazed pump and turbine fins for maximum durability
• Fully remanufactured core designed for extended service life
• Ideal for street and towing applications

Installation Requirements:

• Approximate installation time: 12 hours
• Ford factory scanner required to update TCM with new solenoid code and initiate relearn procedure (critical for proper operation)
• 2WD applications require transfer of yoke adapter and rear mount bracket from original transmission
• Early 2011 models (approximately pre-January 2012 build date) require 6-bolt flexplate
• Compatible with both 2WD and 4WD applications

Warranty Coverage:

• Parts: 36 months / 150,000 miles
• Labor: 12 months / 24,000 miles
• Racing and competition use not covered

Emissions Compliance: This product is designed as a direct replacement and is legal for sale and use in all 50 states, including California.

When you demand a transmission that can handle serious power, heavy towing, and extended service life, the BD Diesel TowMaster package delivers proven performance backed by comprehensive warranty coverage.
